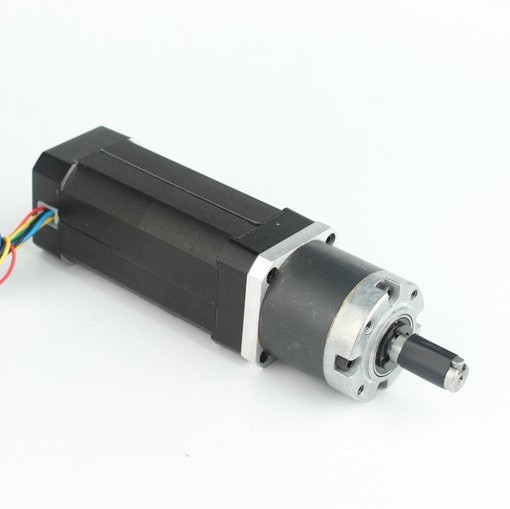

NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance
NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance
Specifications
Brand Name :
WEIGU
Model Number :
42BLDC-G
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$24~60/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Geared Brushless Dc Motor
Rated Voltage :
24-48V
Rated Speed :
2000rpm - 5000rpm
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

General Technical parameters

projects

parameters

Product Name

Brushless DC Motor

Winding Type

Star

Shaft diameter range

8mm (max.)

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 2mA 1s

Ambient Temperature

-20℃~+50℃

Electrical Specification

Model

42BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

8

Rated Voltage

VDC

24

24

24

48

Rated Speed

Rpm

2000

2000

3000

4000

Rated Current

A

1.7

2.7

6

6.8

Rated Torque

N.m

0.15

0.25

0.35

0.35

Rated Power

W

30

50

110

150

Peak Torque

N.m

0.4

0.7

1

1

Torque Constant

N.m/A

0.076

0.089

0.06

0.09

Back EMF constant

V/kRPM

7.9

9.35

6.1

9.4

Body Length

mm

52.5

62.5

72.5

72.5

Weight

Kg

0.3

0.4

0.5

0.5

Gearbox Electrical Specification:

Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 182 219 254 306 354 427 495 596
umber of geartrains 1 2 3 4
Transmission efficiency 90% 81% 73% 66%
Rated tolerance torque 1 N.m 4 N.m 8 N.m 10 N.m
Max momentary tolerance torque 3 N.m 12 N.m 25 N.m 30 N.m
Max radial load(12mm form flange) ≤80N
Max shaft axial load ≤30N
L2 length(mm) 31.5 42.1 52.5 62.9

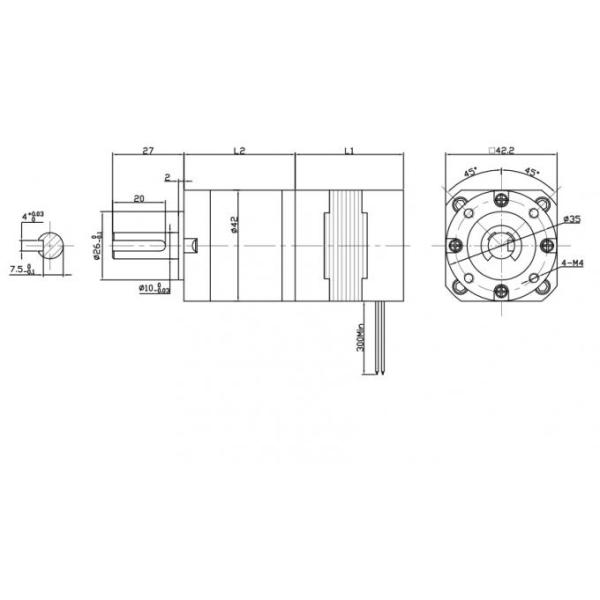

Dimensions: (Unit=mm)

NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance

Our service
We do also manufacture other products,such as

nema11 , nema14 , nema16 , nema17 , nema23 , nema24 , nema34 , nema42 , nema52 stepper motor ;
Nema11 , nema17 , nema23 , nema24 , nema34 stepper motor with gearbox.
Linear stepper motor , closed loop stepper motor , stepper motor with brake , stepper motor sriver ;
42mm , 57mm , 60mm , 80mm , 86mm , 110mm , 130mm brushless dc motor ;
Bldc motor with gearbox , bldc motor driver ;
Brush dc motor , spindle motor , ac servo motor kit , couplings , pulley , power supply and so on .
