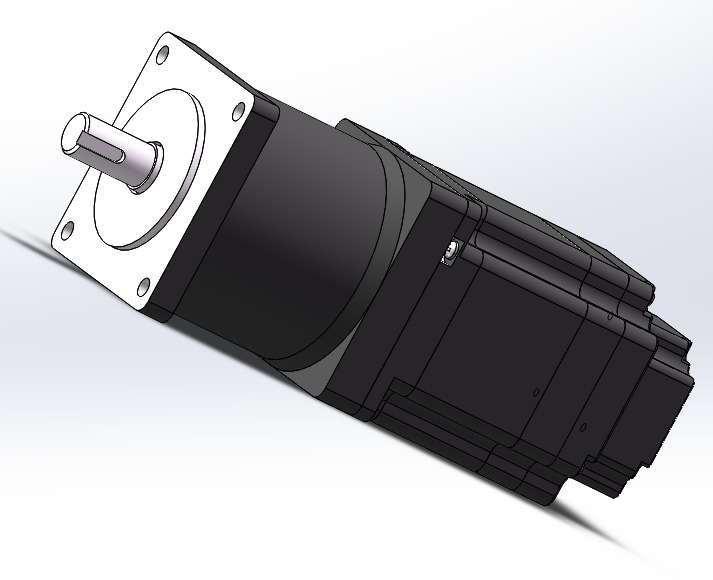

Nema 34 86mm Brushless DC Gearmotor 36V 3000rpm 3 Phase DC Planetary Gear Motor
Nema 34 86mm Brushless DC Gearmotor 36V 3000rpm 3 Phase DC Planetary Gear Motor
Specifications
Brand Name :
WEIGU
Model Number :
86BLDC-G
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$70~160/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Brushless DC Gear Motor
Rated Voltage :
24V/36V
Ratio :
1:4 - 1:100
Rated Speed :
1000rpm - 3000rpm
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Star/Triangle

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃

Electrical Specification

Model

86BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

8

Rated Voltage

VDC

24

24

24

36

Rated Speed

Rpm

3000

3000

2000

2500

Rated Current

A

17

26

38

23

Rated Torque

N.m

0.955

1.5

3

3

Rated Power

W

300

470

650

785

Peak Torque

N.m

2.2

4

8

8

Torque Constant

N.m/A

0.056

0.058

0.078

0.13

Back EMF constant

V/kRPM

5.86

6.07

8.17

13.7

Body Length

mm

75

95

115

115

Weight

Kg

1.9

2.5

3

3

Gearbox Electrical Specification:

Reduction ratio 4 5 10 16 20 25 40 50 100
Number of geartrains 1 3
Transmission efficiency 91% 82%
Rated torque 50 N.m 80 N.m
Max rated torque 100 N.m 160 N.m
L2 length(mm) 75 90

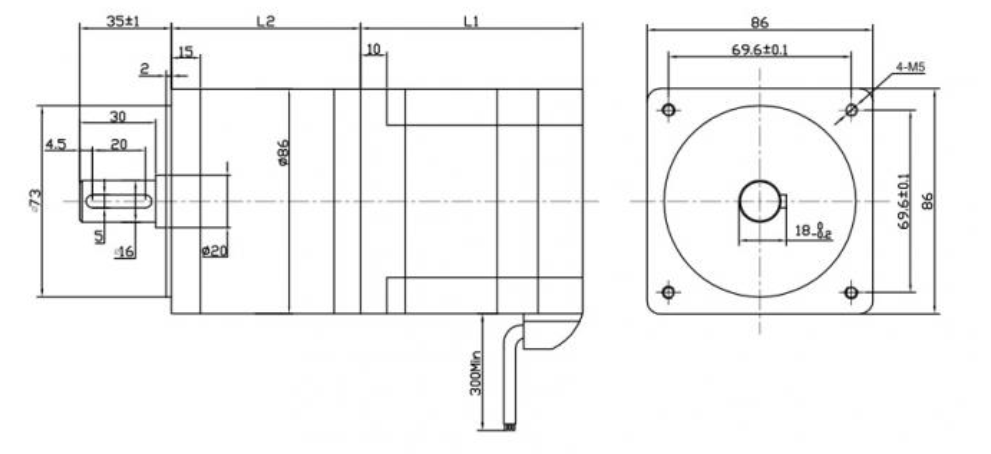

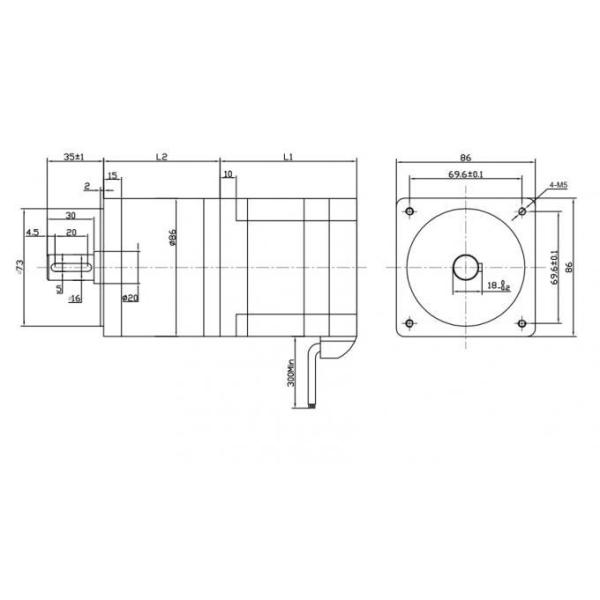

Dimensions: (Unit=mm)

Nema 34 86mm Brushless DC Gearmotor 36V 3000rpm 3 Phase DC Planetary Gear MotorNema 34 86mm Brushless DC Gearmotor 36V 3000rpm 3 Phase DC Planetary Gear Motor

The main parameters to be referenced in the selection of brushless DC motor are as follows:

Maximum torque: this can be obtained by adding the load torque, moment of inertia and friction. In addition, additional factors such as air gap air resistance influence the maximum torque.

Square modulus torque: can be approximately considered as the continuous output torque required for practical application, determined by many factors: maximum torque, load torque, moment of inertia, acceleration, deceleration, and running time, etc.

Speed: this is the required speed, which can be determined according to the speed trapezoidal curve of the motor, usually 10% margin should be left in the calculation.
