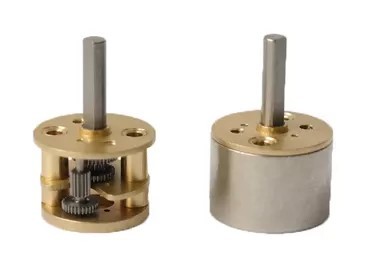

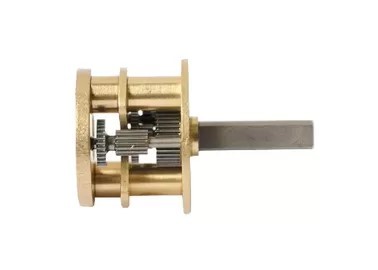

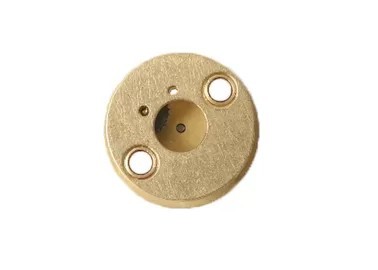

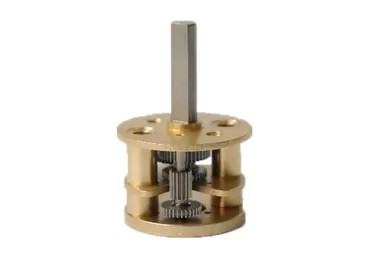

Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor
Specifications
Brand Name :
WEIGU
Model Number :
GB16
Certification :
RoHS
Place of Origin :
China
MOQ :
1Unit
Price :
$3~$7/Unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000000 Units/year
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
micro gearbox
Material :
Metal
Size :
14mm*10mm
Description

Gear reduction ratio is 1:10 1:20 1:30 1:50 1:100 1:210 1:297 1:350

The customer can according to different use torque speed requirements to match the speed ratio, at the same time Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.

Mechanical Dimension:MM

Customization Micro Gearbox 14*10Mm Micro Planetary Gearbox For DC Motor And Stepper Motor

Specifications

GB16 Round metal gear box series
speed reducer performance parameters

No. Ratio Step No. Size Torque Torque Noise
1 3 2 φ14*10 200g.cm 600g.cm <60db
2 7 2 φ14*10 200g.cm 600g.cm <60db
3 10 2 φ14*10 200g.cm 600g.cm <60db
4 16 4 φ14*10 300g.cm 900g.cm <60db
5 17 4 φ14*10 300g.cm 900g.cm <60db
6 20 4 φ14*10 300g.cm 900g.cm <60db
7 30 4 φ14*10 300g.cm 900g.cm <60db
8 35 4 φ14*10 300g.cm 900g.cm <60db
9 50 4 φ14*10 400g.cm 1200g.cm <60db
10 63 4 φ14*10 400g.cm 1200g.cm <60db
11 70 4 φ14*10 500g.cm 1500g.cm <60db
12 86 4 φ14*10 500g.cm 1500g.cm <60db
13 115 5 φ14*10 600g.cm 1800g.cm <50db
14 150 5 φ14*10 600g.cm 1800g.cm <50db
15 210 5 φ14*10 700g.cm 2100g.cm <50db
16 250 5 φ14*10 700g.cm 2100g.cm <50db
17 360 5 φ14*10 800g.cm 2400g.cm <50db

Can be used with motor interface size

Screw hole type Screw hole nominal size Screw hole pitch
Diagonal M2.0 10mm



Installation method: Pressing the motor gear on the motor shaft - the reducer is fixed on the motor
Operating temperature: ‘-10°C~ +60°C
Environmental certification: ROHS REACH-SVHC

Typical Applications

The miniature gearbox is mainly suitable for micro gear reducer motors, and the miniature gear reducer motor is mainly used for industrial product drive,Instrumentation,medical instruments,Electric household appliances,Acoustic image,office automation.
The fields of aerospace and automobile are the electromechanical products that are developing in the direction of scientific and technological intelligence automation in the development of national economy.
Typical products such as:

Coffee machine camera vending machine Money counter
Electronic door lock projector CD-ROM hair dryer
electrical tools monitor Game machine Electric shaver
Camera instrument robot Gas valve Massager, etc.


In addition, our company can also design and manufacture special miniature gear reducer motors according to customer needs.
