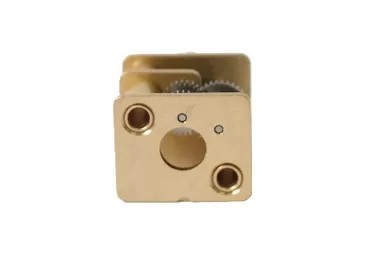

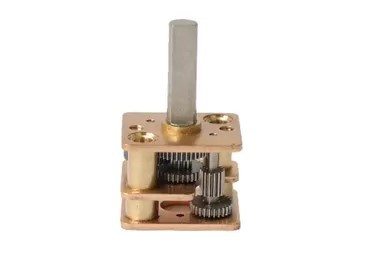

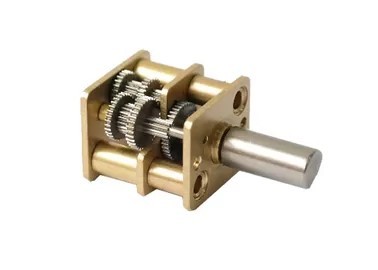

12GB Micro Gearbox 10mm Micro Gear Motor Square Metal High Efficiency Rusrproof
12GB Micro Gearbox 10mm Micro Gear Motor Square Metal High Efficiency Rusrproof
12GB Micro Gearbox 10mm Micro Gear Motor Square Metal High Efficiency Rusrproof
12GB Micro Gearbox 10mm Micro Gear Motor Square Metal High Efficiency Rusrproof
12GB Micro Gearbox 10mm Micro Gear Motor Square Metal High Efficiency Rusrproof
12GB Micro Gearbox 10mm Micro Gear Motor Square Metal High Efficiency Rusrproof
Specifications
Brand Name :
WEIGU
Model Number :
12GB
Certification :
Rohs
Place of Origin :
China
MOQ :
1Unit
Price :
$3~$7/Unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000000 Units/year
Delivery Time :
7-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Type :
micro gearbox
Material :
Metal
Description

Gear reduction ratio is 1:5 1:10 1:20 1:30 1:50 1:100 1:210 1:250 1:298 1:380 1:500 1:1000 the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.

  • Round Type : DIA3mm. 4mm. 5mm

  • D-cut Type: DIA3-D2.5 DIA4-D3 etc

  • Screw Type: M3 M4 M5 Serial

  • Trape Type

  • I-cut Type: DIA3-I2 DIA4-I3

  • Other Type: Shaft with a hole etc​

Specifications

12GB square series (speed reducer performance parameters)

No. Ratio Level Size Rated torque Instantaneous torque Noise
1 3 2 12*10*9 200g.cm 600g.cm <60db
2 5 2 12*10*9 200g.cm 600g.cm <60db
3 10 2 12*10*9 200g.cm 600g.cm <60db
4 17 4 12*10*9 300g.cm 900g.cm <60db
5 20 4 12*10*9 300g.cm 900g.cm <60db
6 30 4 12*10*9 300g.cm 900g.cm <60db
7 36 4 12*10*9 300g.cm 900g.cm <60db
8 50 4 12*10*9 400g.cm 1200g.cm <60db
9 63 4 12*10*9 400g.cm 1200g.cm <60db
10 100 4 12*10*9 500g.cm 1500g.cm <60db
11 110 5 12*10*9 500g.cm 1500g.cm <50db
12 150 5 12*10*9 500g.cm 1500g.cm <50db
13 210 5 12*10*9 800g.cm 2400g.cm <50db
14 250 5 12*10*9 800g.cm 2400g.cm <50db
15 298 5 12*10*9 800g.cm 2400g.cm <50db
16 380 5 12*10*9 800g.cm 2400g.cm <50db
17 372 7 12*10*11 1000g.cm 3000g.cm <40db
18 625 7 12*10*11 1000g.cm 3000g.cm <40db
19 1000 7 12*10*11 1000g.cm 3000g.cm <40db

Can be used with motor interface size

Screw hole type Screw hole nominal size Screw hole pitch
Level M1.6 9.44mm

Mechanical Dimension:MM
