38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
Specifications
Brand Name :
TYHE
Model Number :
TJX38RG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
38mm diameter
Voltage :
6V 12V 24V or customized
Speed :
1-2200rpm
Torque :
8.0N.m
Gear material :
Steel gears
Commutation :
brushes, brushed
Type :
DC Planetary Gear Motor, Small Planetary Motor
Keywords :
Manufacturer 38mm gearbox 12v 24v 5 rpm 400rm high torque 50kgfcm 60kgfcm 15 watt 10w 8w micro dc planetary geared motor
Description

Products Description

Manufacturer 38mm gearbox 12v 24v 5 rpm 400rm high torque 50kgfcm 60kgfcm 15 watt 10w 8w micro dc planetary geared motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 5700 290 4560 1.07 17.20 8.21 63.81 51.60 7.65
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 24 6500 170 5200 0.68 19.00 10.35 63.39 57.00 5.10
RS555 24 7000 190 5600 0.87 22.20 13.02 62.47 66.60 7.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5700RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1232.4 7.39 57.28 171.83 1405.4 9.56 64.94 194.81
28.2 90 5.2 876.9 7.39 80.50 241.49 1000.0 9.56 91.26 273.78
37 81 13.7 332.8 6.65 190.87 572.61 379.6 8.60 216.39 649.17
37 81 19.2 237.5 6.65 267.49 802.48 270.8 8.60 303.26 909.79
37 81 26.9 169.5 6.65 374.77 1124.31 193.3 8.60 424.89 1274.66
37 81 35.0 130.3 6.65 487.62 1462.86 148.6 8.60 552.83 1658.48
45.8 73 51.0 89.4 6.00 640.36 1921.07 102.0 7.75 725.99 2177.96
45.8 73 71.0 64.2 6.00 891.48 2674.43 73.2 7.75 1010.69 3032.06
45.8 73 100.0 45.6 6.00 1255.60 3766.80 52.0 7.75 1423.50 4270.50
45.8 73 139.0 32.8 6.00 1745.28 5235.85 37.4 7.75 1978.67 5936.00
54.7 65.6 189.0 24.1 5.39 2132.52 6397.57 27.5 6.97 2417.69 7253.06
54.7 65.6 264.0 17.3 5.39 2978.76 8936.29 19.7 6.97 3377.09 10131.26
54.7 65.6 369.0 12.4 5.39 4163.50 12490.50 14.1 6.97 4720.25 14160.74
54.7 65.6 514.0 8.9 5.39 5799.56 15000.00 10.1 6.97 6575.09 15000.00
54.7 65.6 721.0 6.3 5.39 8135.19 15000.00 7.2 6.97 9223.03 15000.00
64 59 699.0 6.5 4.85 7093.45 15000.00 7.4 6.26 8042.00 15000.00
64 59 977.0 4.7 4.85 9914.60 15000.00 5.3 6.26 11240.39 15000.00
64 59 1367.0 3.3 4.85 10000.00 15000.00 3.8 6.26 15000.00 15000.00
64 59 1911.0 2.4 4.85 10000.00 15000.00 2.7 6.26 15000.00 15000.00
64 59 2672.0 1.7 4.85 10000.00 15000.00 1.9 6.26 15000.00 15000.00
64 59 3736.0 1.2 4.85 10000.00 15000.00 1.4 6.26 15000.00 15000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6500RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1405.4 9.31 63.27 189.81 1513.5 11.72 73.93 221.78
28.2 90 5.2 1000.0 9.31 88.92 266.76 1076.9 11.72 103.90 311.69
37 81 13.7 379.6 8.38 210.84 632.53 408.8 10.54 246.35 739.06
37 81 19.2 270.8 8.38 295.49 886.46 291.7 10.54 345.25 1035.76
37 81 26.9 193.3 8.38 413.99 1241.97 208.2 10.54 483.72 1451.15
37 81 35.0 148.6 8.38 538.65 1615.95 160.0 10.54 629.37 1888.11
45.8 73 51.0 102.0 7.55 707.37 2122.11 109.8 9.50 826.51 2479.52
45.8 73 71.0 73.2 7.55 984.77 2954.31 78.9 9.50 1150.63 3451.88
45.8 73 100.0 52.0 7.55 1387.00 4161.00 56.0 9.50 1620.60 4861.80
45.8 73 139.0 37.4 7.55 1927.93 5783.79 40.3 9.50 2252.63 6757.90
54.7 65.6 189.0 27.5 6.79 2355.70 7067.09 29.6 8.54 2752.44 8257.33
54.7 65.6 264.0 19.7 6.79 3290.50 9871.49 21.2 8.54 3844.68 11534.05
54.7 65.6 369.0 14.1 6.79 4599.22 13797.65 15.2 8.54 5373.82 15000.00
54.7 65.6 514.0 10.1 6.79 6406.50 15000.00 10.9 8.54 7485.48 15000.00
54.7 65.6 721.0 7.2 6.79 8986.54 15000.00 7.8 8.54 10500.07 15000.00
64 59 699.0 7.4 6.10 7835.79 15000.00 8.0 7.68 9155.50 15000.00
64 59 977.0 5.3 6.10 10952.17 15000.00 5.7 7.68 12796.75 15000.00
64 59 1367.0 3.8 6.10 15000.00 15000.00 4.1 7.68 15000.00 15000.00
64 59 1911.0 2.7 6.10 15000.00 15000.00 2.9 7.68 15000.00 15000.00
64 59 2672.0 1.9 6.10 15000.00 15000.00 2.1 7.68 15000.00 15000.00
64 59 3736.0 1.4 6.10 15000.00 15000.00 1.5 7.68 15000.00 15000.00

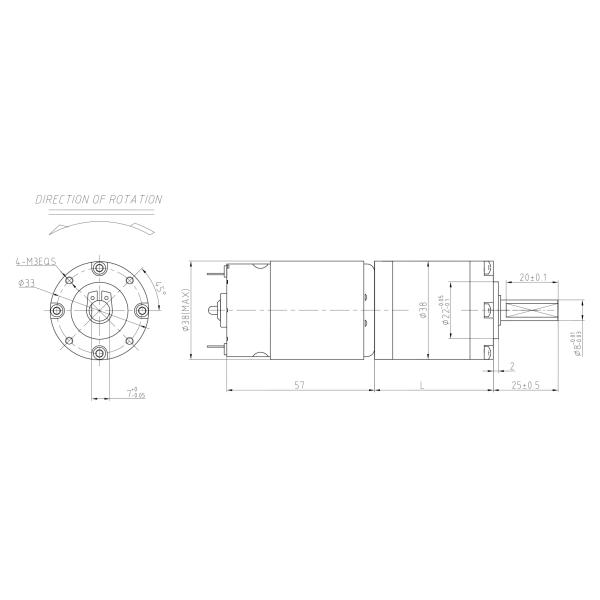

2D drawing

38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm


38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm

Please let us know your requirements and we will provide you with transmission solutions.

38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm

38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
