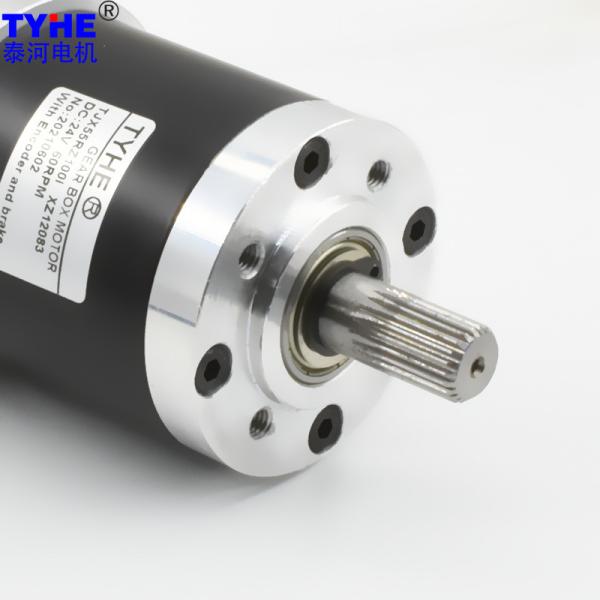

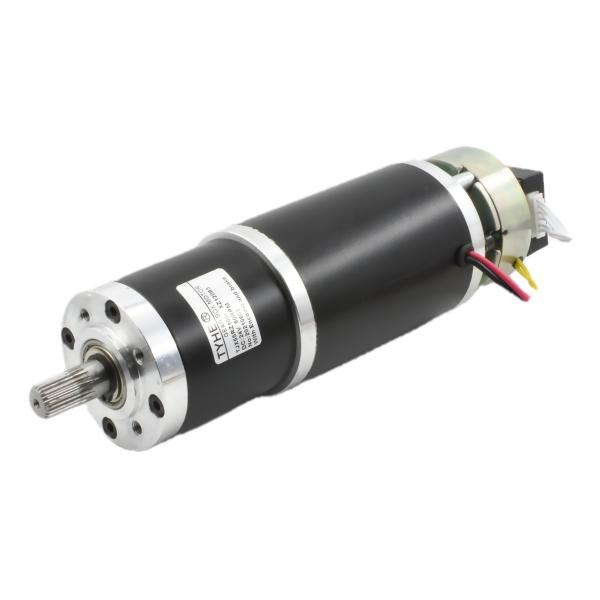

55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
Specifications
Brand Name :
TYHE
Model Number :
TJX55RZ
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
55mm
Voltage :
24v or customized
Speed :
1-1600rpm Customized
Torque :
35N.m
Gear material :
Steel gear
Commutation :
Brushes
Type :
Planetary Gear Motor
Keywords :
High Precision 55mm 24v 12v high torque 100kg 30 nm dc planetary gear motor for Armarium with brake
Description

Products Description

High Precision 55mm 24v 12v high torque 100kg 30 nm dc planetary gear motor for Armarium with brake

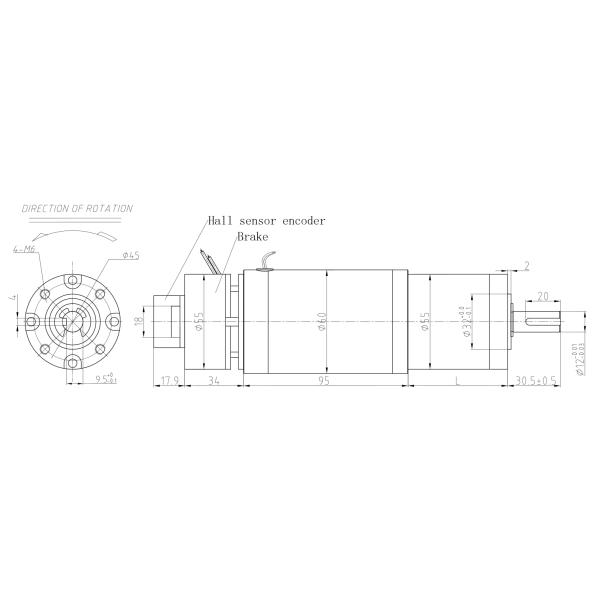

2D drawing

55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear


55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY6095 24 6000 1000 4800 5.42 158.52 79.67 61.29 475.56 47.00
ZY6095 24 7000 1300 5600 7.03 175.85 103.12 61.09 527.55 61.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-6000RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
31.8 90 3.7 1297.3 71.71 527.87 1583.61 1513.5 92.80 585.58 1756.74
31.8 90 5.2 923.1 71.71 741.87 2225.62 1076.9 92.80 822.98 2468.93
44 81 13.7 350.4 64.54 1759.10 5277.29 408.8 83.52 1951.41 5854.22
44 81 19.2 250.0 64.54 2465.30 7395.91 291.7 83.52 2734.82 8204.46
44 81 26.9 178.4 64.54 3453.99 10361.98 208.2 83.52 3831.60 11494.79
44 81 35.0 137.1 64.54 4494.04 13482.13 160.0 83.52 4985.35 14956.04
57.5 73 51.0 94.1 58.16 5901.70 17705.10 109.8 75.27 6546.90 19640.69
57.5 73 71.0 67.6 58.16 8216.09 24648.27 78.9 75.27 9114.31 27342.92
57.5 73 100.0 48.0 58.16 11571.96 34715.88 56.0 75.27 12837.05 38511.15
57.5 73 139.0 34.5 58.16 16085.02 48000.00 40.3 75.27 17843.50 48000.00
72.5 65.6 189.0 25.4 52.27 19653.94 48000.00 29.6 67.64 21802.59 48000.00
72.5 65.6 264.0 18.2 52.27 27453.13 48000.00 21.2 67.64 30454.41 48000.00
72.5 65.6 369.0 13.0 52.27 38371.99 48000.00 15.2 67.64 42566.95 48000.00
72.5 65.6 514.0 9.3 52.27 48000.00 48000.00 10.9 67.64 48000.00 48000.00
72.5 65.6 721.0 6.7 52.27 48000.00 48000.00 7.8 67.64 48000.00 48000.00
85.7 59 699.0 6.9 47.01 48000.00 48000.00 8.0 60.84 48000.00 48000.00
85.7 59 977.0 4.9 47.01 48000.00 48000.00 5.7 60.84 48000.00 48000.00
85.7 59 1367.0 3.5 47.01 48000.00 48000.00 4.1 60.84 48000.00 48000.00
85.7 59 1911.0 2.5 47.01 48000.00 48000.00 2.9 60.84 48000.00 48000.00
85.7 59 2672.0 1.8 47.01 48000.00 48000.00 2.1 60.84 48000.00 48000.00
85.7 59 3736.0 1.3 47.01 48000.00 48000.00 1.5 60.84 48000.00 48000.00

Please let us know your requirements and we will provide you with transmission solutions.

55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear

55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear
