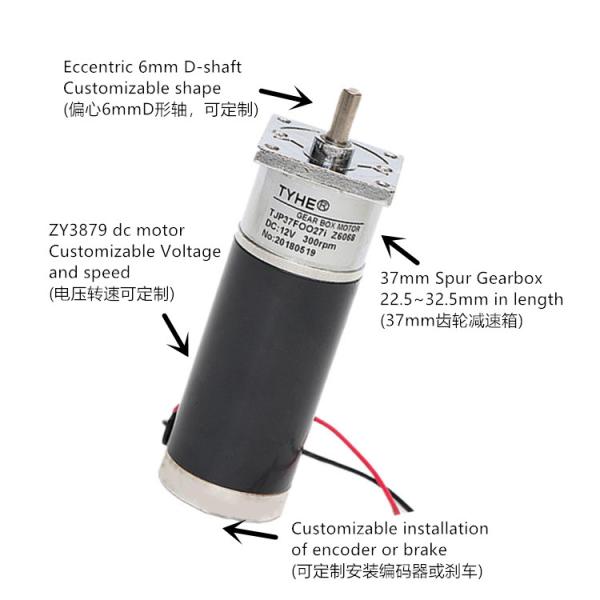

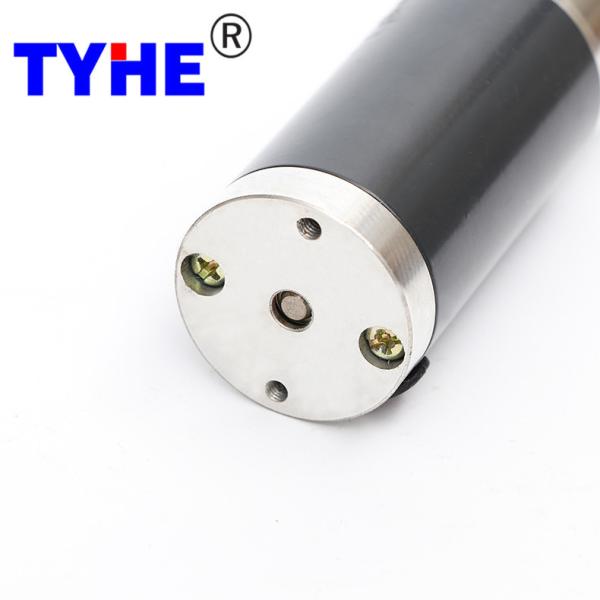

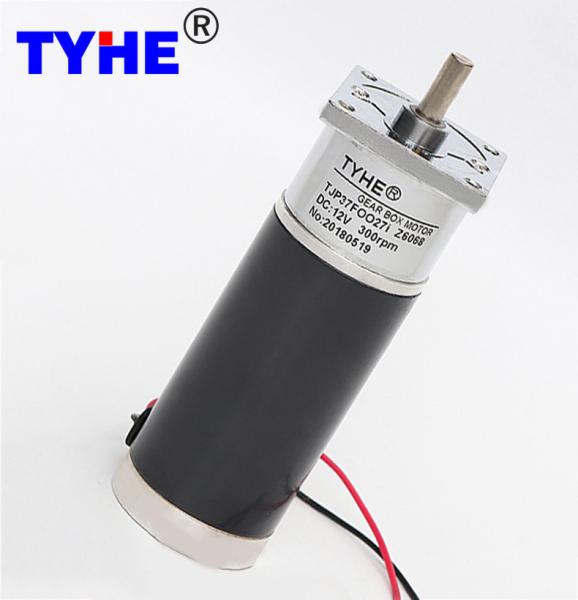

D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
Specifications
Brand Name :
TYHE
Model Number :
TJP37FOO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm size
Voltage :
3v 12v 24v or customize
Speed :
100rpm or Customized
Torque :
1.5N.m
Commutation :
Brushes brush
Type :
Brushed dc motor, DC mini motor
Keywords :
D37mm spur gearbox 12v 24v 1000rpm 30 rpm 15 watt 20w 10kgcm high speed dc geared motor for auto cooker
Description

Products Description

Miniature zhengk gm25-bk370 25mm 3 volt 3.6v 12v rf370 12 volt 30rpm 2watts 0.6kg torque dc gear motor

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RF370 6 6500 70 5200 0.23 1.58 0.86 62.34 4.74 1.50
RF370 6 7500 80 6000 0.26 1.60 1.01 65.06 4.80 1.65
RF370 12 5000 25 4000 0.09 1.62 0.68 62.25 4.86 0.64
RF370 12 6500 30 5200 0.12 1.72 0.94 62.86 5.16 0.95
RF370 12 16000 130 12800 0.48 2.71 3.63 62.52 8.13 3.47
RF370 24 5000 20 4000 0.05 1.93 0.81 62.18 5.79 0.29
RF370 24 6500 20 5200 0.07 1.82 0.99 61.94 5.46 0.44

2D drawing

D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker


D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker


D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker

Please let us know your requirements and we will provide you with transmission solutions.

D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto CookerD37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto CookerD37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto CookerD37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto CookerD37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto CookerD37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
