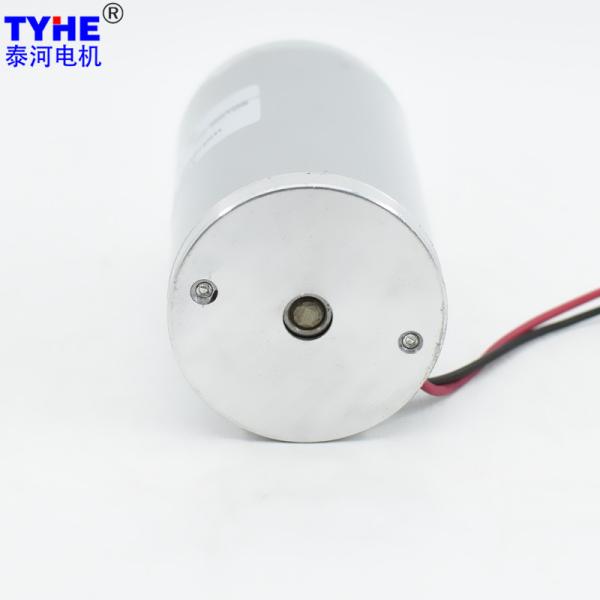

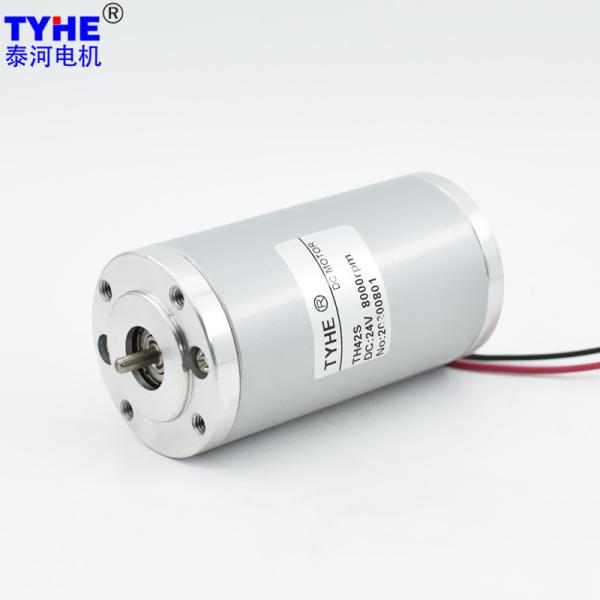

TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm
Specifications
Brand Name :
TYHE
Model Number :
TH42S
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm*79mm
Voltage :
12V 24V or customize
Speed :
3500 rpm or Customized
Torque :
40mN.m
Commutation :
brushed
Type :
Brushed dc motor, mini dc motor
Keywords :
Factory Goods D42mm 12v 24v 25w 50w 3500 Rpm PMDC Brushed Dc Motor With Brake
Description

Products Description

Factory Goods D42mm 12v 24v 25w 50w 3500 Rpm PMDC Brushed Dc Motor With Brake

2D drawing

TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm


TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
TH42S 12 4000 300 3200 1.20 26.50 8.88 61.66 79.50 7.50
TH42S 12 7500 750 6000 3.00 35.50 22.30 61.95 106.50 18.75
TH42S 24 2300 90 1840 0.36 28.10 5.41 62.66 84.30 2.25
TH42S 24 5500 260 4400 1.04 33.50 15.43 61.84 100.50 6.50

TYHE D42mm Permanent Magnet DC Gear Motor With Brake 25W 50W 3500 Rpm

Please let us know your requirements and we will provide you with transmission solutions.
