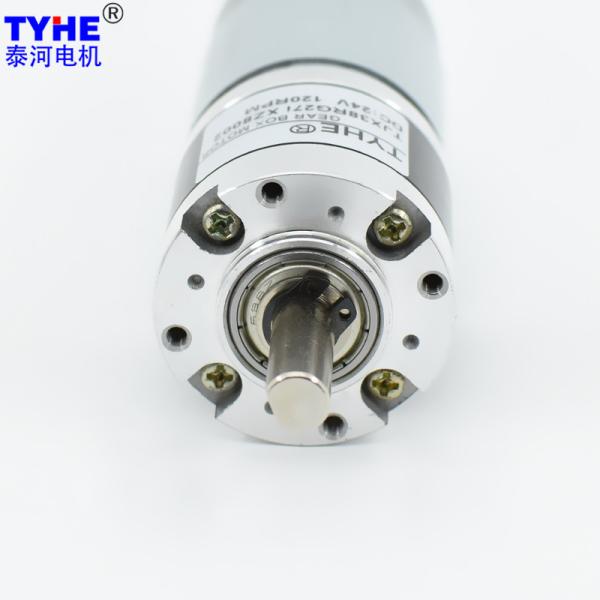

TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm
Specifications
Brand Name :
TYHE
Model Number :
TJX38RG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D38mm diameter
Voltage :
DC6v 12v 24v or customized
Speed :
1-2000rpm Customized
Torque :
8N.m
Gear material :
Steel gears
Commutation :
brushes
Type :
DC Planetary Gear Motor
Keywords :
Factory Goods 38mm Diameter 10000rpm 555 Permanent Magnet Low Noise Level 15nm Dc Planetary Metal Gear Motor
Description

Products Description

Factory Goods 38mm Diameter 10000rpm 555 Permanent Magnet Low Noise Level 15nm Dc Planetary Metal Gear Motor

2D drawing

TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm


TYHE Permanent Magnet DC Gear Motor RS555 38mm 10000rpm 15nm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 5700 290 4560 1.07 17.20 8.21 63.81 51.60 7.65
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 24 6500 170 5200 0.68 19.00 10.35 63.39 57.00 5.10
RS555 24 7000 190 5600 0.87 22.20 13.02 62.47 66.60 7.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5700RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1232.4 7.39 57.28 171.83 1405.4 9.56 64.94 194.81
28.2 90 5.2 876.9 7.39 80.50 241.49 1000.0 9.56 91.26 273.78
37 81 13.7 332.8 6.65 190.87 572.61 379.6 8.60 216.39 649.17
37 81 19.2 237.5 6.65 267.49 802.48 270.8 8.60 303.26 909.79
37 81 26.9 169.5 6.65 374.77 1124.31 193.3 8.60 424.89 1274.66
37 81 35.0 130.3 6.65 487.62 1462.86 148.6 8.60 552.83 1658.48
45.8 73 51.0 89.4 6.00 640.36 1921.07 102.0 7.75 725.99 2177.96
45.8 73 71.0 64.2 6.00 891.48 2674.43 73.2 7.75 1010.69 3032.06
45.8 73 100.0 45.6 6.00 1255.60 3766.80 52.0 7.75 1423.50 4270.50
45.8 73 139.0 32.8 6.00 1745.28 5235.85 37.4 7.75 1978.67 5936.00
54.7 65.6 189.0 24.1 5.39 2132.52 6397.57 27.5 6.97 2417.69 7253.06
54.7 65.6 264.0 17.3 5.39 2978.76 8936.29 19.7 6.97 3377.09 10131.26
54.7 65.6 369.0 12.4 5.39 4163.50 12490.50 14.1 6.97 4720.25 14160.74
54.7 65.6 514.0 8.9 5.39 5799.56 15000.00 10.1 6.97 6575.09 15000.00
54.7 65.6 721.0 6.3 5.39 8135.19 15000.00 7.2 6.97 9223.03 15000.00
64 59 699.0 6.5 4.85 7093.45 15000.00 7.4 6.26 8042.00 15000.00
64 59 977.0 4.7 4.85 9914.60 15000.00 5.3 6.26 11240.39 15000.00
64 59 1367.0 3.3 4.85 10000.00 15000.00 3.8 6.26 15000.00 15000.00
64 59 1911.0 2.4 4.85 10000.00 15000.00 2.7 6.26 15000.00 15000.00
64 59 2672.0 1.7 4.85 10000.00 15000.00 1.9 6.26 15000.00 15000.00
64 59 3736.0 1.2 4.85 10000.00 15000.00 1.4 6.26 15000.00 15000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6500RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1405.4 9.31 63.27 189.81 1513.5 11.72 73.93 221.78
28.2 90 5.2 1000.0 9.31 88.92 266.76 1076.9 11.72 103.90 311.69
37 81 13.7 379.6 8.38 210.84 632.53 408.8 10.54 246.35 739.06
37 81 19.2 270.8 8.38 295.49 886.46 291.7 10.54 345.25 1035.76
37 81 26.9 193.3 8.38 413.99 1241.97 208.2 10.54 483.72 1451.15
37 81 35.0 148.6 8.38 538.65 1615.95 160.0 10.54 629.37 1888.11
45.8 73 51.0 102.0 7.55 707.37 2122.11 109.8 9.50 826.51 2479.52
45.8 73 71.0 73.2 7.55 984.77 2954.31 78.9 9.50 1150.63 3451.88
45.8 73 100.0 52.0 7.55 1387.00 4161.00 56.0 9.50 1620.60 4861.80
45.8 73 139.0 37.4 7.55 1927.93 5783.79 40.3 9.50 2252.63 6757.90
54.7 65.6 189.0 27.5 6.79 2355.70 7067.09 29.6 8.54 2752.44 8257.33
54.7 65.6 264.0 19.7 6.79 3290.50 9871.49 21.2 8.54 3844.68 11534.05
54.7 65.6 369.0 14.1 6.79 4599.22 13797.65 15.2 8.54 5373.82 15000.00
54.7 65.6 514.0 10.1 6.79 6406.50 15000.00 10.9 8.54 7485.48 15000.00
54.7 65.6 721.0 7.2 6.79 8986.54 15000.00 7.8 8.54 10500.07 15000.00
64 59 699.0 7.4 6.10 7835.79 15000.00 8.0 7.68 9155.50 15000.00
64 59 977.0 5.3 6.10 10952.17 15000.00 5.7 7.68 12796.75 15000.00
64 59 1367.0 3.8 6.10 15000.00 15000.00 4.1 7.68 15000.00 15000.00
64 59 1911.0 2.7 6.10 15000.00 15000.00 2.9 7.68 15000.00 15000.00
64 59 2672.0 1.9 6.10 15000.00 15000.00 2.1 7.68 15000.00 15000.00
64 59 3736.0 1.4 6.10 15000.00 15000.00 1.5 7.68 15000.00 15000.00

Please let us know your requirements and we will provide you with transmission solutions.
