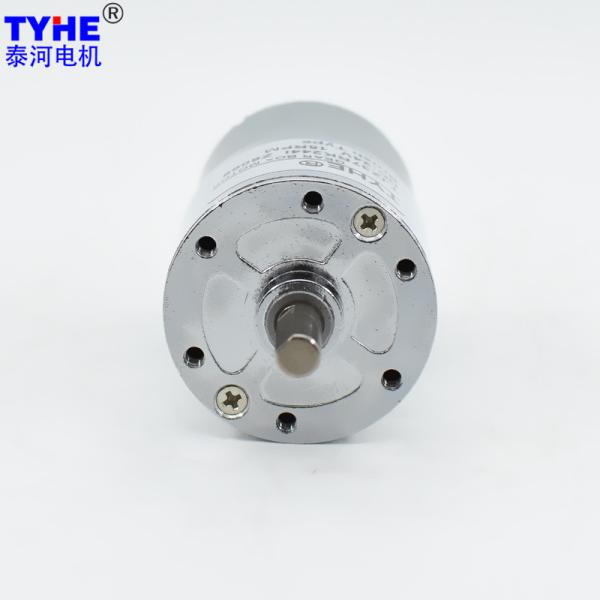

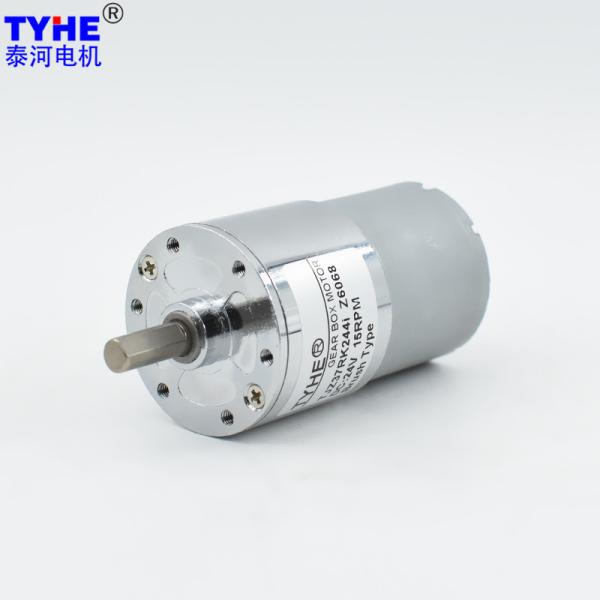

Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm
Specifications
Brand Name :
TYHE
Model Number :
TJZ37RK
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
OD37mm
Voltage :
6-24V custom
Speed :
customized
Torque :
2.2N.m
Gear material :
Powder metallurgy, Metal gear
Commutation :
Brush brushes
Type :
DC Gear Motor, Micro Motor
Keywords :
Wholesale Low Noise Micro 200 Rpm 6v 12v 24v 37mm Dc Brush Spur Gear Motor For Toy
Description

Products Description

Wholesale Low Noise Micro 200 Rpm 6v 12v 24v 37mm Dc Brush Spur Gear Motor For Toy

2D drawing

Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37RK φ37mm ZY3530 6mm-D cut 190g


Micro 200 Rpm Brushed DC Spur Gear Motor OD37mm 6V High Torque Low Rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3530 12 5500 60 4400 0.23 3.81 1.76 62.69 11.43 1.72
ZY3530 12 6500 65 5200 0.31 4.18 2.28 61.18 12.54 2.00
ZY3530 24 3500 14 2800 0.06 3.17 0.93 62.63 9.51 0.49
ZY3530 24 5200 22 4160 0.11 4.01 1.75 63.47 12.03 0.98
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 956.5 1.42 14.20 42.59 1130.4 1.84 15.57 46.72
22.5 81 5.9 745.8 1.42 18.21 54.62 881.4 1.84 19.98 59.93
22.5 81 6.9 637.7 1.42 21.29 63.88 753.6 1.84 23.36 70.09
22.5 73 8.4 523.8 1.28 23.36 70.09 619.0 1.66 25.63 76.90
22.5 73 10.6 415.1 1.28 29.48 88.45 490.6 1.66 32.34 97.03
22.5 73 13.5 325.9 1.28 37.55 112.64 385.2 1.66 41.19 123.58
22.5 73 16.0 275.0 1.28 44.50 133.50 325.0 1.66 48.82 146.47
24.5 65.6 19.3 228.0 1.15 48.24 144.71 269.4 1.49 52.92 158.77
24.5 65.6 24.4 180.3 1.15 60.98 182.95 213.1 1.49 66.91 200.72
24.5 65.6 31.6 139.2 1.15 78.98 236.94 164.6 1.49 86.65 259.95
24.5 65.6 37.0 118.9 1.15 92.48 277.43 140.5 1.49 101.46 304.37
26.5 59 45.0 97.8 1.04 101.16 303.47 115.6 1.34 110.98 332.94
26.5 59 57.0 77.2 1.04 128.13 384.39 91.2 1.34 140.57 421.72
26.5 59 73.6 59.8 1.04 165.45 496.34 70.7 1.34 181.51 544.54
26.5 59 86.0 51.2 1.04 193.32 579.96 60.5 1.34 212.09 636.28
26.5 59 95.0 46.3 1.04 213.55 640.65 54.7 1.34 234.29 702.87
29.5 53 105.0 41.9 0.93 212.03 636.08 49.5 1.21 232.62 697.85
29.5 53 133.0 33.1 0.93 268.57 805.70 39.1 1.21 294.65 883.94
29.5 53 172.0 25.6 0.93 347.32 1041.96 30.2 1.21 381.05 1143.15
29.5 53 201.0 21.9 0.93 405.88 1217.64 25.9 1.21 445.30 1335.89
29.5 53 221.0 19.9 0.93 446.27 1338.80 23.5 1.21 489.60 1468.81
29.5 53 244.0 18.0 0.93 492.71 1478.13 21.3 1.21 540.56 1621.67
32.5 47.8 245.0 18.0 0.84 446.19 1338.57 21.2 1.09 489.52 1468.56
32.5 47.8 310.0 14.2 0.84 564.57 1693.70 16.8 1.09 619.39 1858.18
32.5 47.8 401.0 11.0 0.84 730.29 2190.88 13.0 1.09 801.21 2403.64
32.5 47.8 469.0 9.4 0.84 854.13 2500.00 11.1 1.09 937.08 2500.00
32.5 47.8 516.0 8.5 0.84 939.73 2500.00 10.1 1.09 1030.99 2500.00
32.5 47.8 569.0 7.7 0.84 1036.25 2500.00 9.1 1.09 1136.88 2500.00
32.5 47.8 627.0 7.0 0.84 1141.88 2500.00 8.3 1.09 1252.77 2500.00
32.5 43 1093.0 4.0 0.75 1790.66 2500.00 4.8 0.98 1964.56 2500.00
32.5 43 1205.0 3.7 0.75 1974.15 2500.00 4.3 0.98 2165.87 2500.00
32.5 43 1328.0 3.3 0.75 2175.66 2500.00 3.9 0.98 2386.95 2500.00
32.5 43 1463.0 3.0 0.75 2396.83 2500.00 3.6 0.98 2500.00 2500.00
32.5 43 1613.0 2.7 0.75 2500.00 2500.00 3.2 0.98 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5200RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 608.7 0.75 11.81 35.43 904.3 1.41 14.94 44.82
22.5 81 5.9 474.6 0.75 15.15 45.45 705.1 1.41 19.16 57.49
22.5 81 6.9 405.8 0.75 17.72 53.15 602.9 1.41 22.41 67.24
22.5 73 8.4 333.3 0.68 19.44 58.32 495.2 1.28 24.59 73.77
22.5 73 10.6 264.2 0.68 24.53 73.59 392.5 1.28 31.03 93.09
22.5 73 13.5 207.4 0.68 31.24 93.72 308.1 1.28 39.52 118.56
22.5 73 16.0 175.0 0.68 37.03 111.08 260.0 1.28 46.84 140.51
24.5 65.6 19.3 145.1 0.61 40.13 120.40 215.5 1.15 50.77 152.31
24.5 65.6 24.4 114.8 0.61 50.74 152.22 170.5 1.15 64.19 192.56
24.5 65.6 31.6 88.6 0.61 65.71 197.14 131.6 1.15 83.13 249.38
24.5 65.6 37.0 75.7 0.61 76.94 230.83 112.4 1.15 97.33 291.99
26.5 59 45.0 62.2 0.55 84.16 252.49 92.4 1.03 106.47 319.40
26.5 59 57.0 49.1 0.55 106.61 319.82 73.0 1.03 134.86 404.57
26.5 59 73.6 38.0 0.55 137.65 412.96 56.5 1.03 174.13 522.39
26.5 59 86.0 32.6 0.55 160.85 482.54 48.4 1.03 203.47 610.40
26.5 59 95.0 29.5 0.55 177.68 533.04 43.8 1.03 224.76 674.28
29.5 53 105.0 26.7 0.49 176.41 529.23 39.6 0.93 223.16 669.47
29.5 53 133.0 21.1 0.49 223.45 670.36 31.3 0.93 282.66 847.99
29.5 53 172.0 16.3 0.49 288.98 866.93 24.2 0.93 365.55 1096.65
29.5 53 201.0 13.9 0.49 337.70 1013.10 20.7 0.93 427.19 1281.56
29.5 53 221.0 12.7 0.49 371.30 1113.91 18.8 0.93 469.69 1409.07
29.5 53 244.0 11.5 0.49 409.94 1229.83 17.0 0.93 518.57 1555.72
32.5 47.8 245.0 11.4 0.44 371.24 1113.72 17.0 0.83 469.61 1408.83
32.5 47.8 310.0 9.0 0.44 469.73 1409.19 13.4 0.83 594.20 1782.61
32.5 47.8 401.0 7.0 0.44 607.62 1822.86 10.4 0.83 768.63 2305.89
32.5 47.8 469.0 6.0 0.44 710.66 2131.97 8.9 0.83 898.97 2500.00
32.5 47.8 516.0 5.4 0.44 781.87 2345.62 8.1 0.83 989.06 2500.00
32.5 47.8 569.0 4.9 0.44 862.18 2500.00 7.3 0.83 1090.65 2500.00
32.5 47.8 627.0 4.5 0.44 950.07 2500.00 6.6 0.83 1201.82 2500.00
32.5 43 1093.0 2.6 0.40 1489.87 2500.00 3.8 0.75 1884.66 2500.00
32.5 43 1205.0 2.3 0.40 1642.54 2500.00 3.5 0.75 2077.78 2500.00
32.5 43 1328.0 2.1 0.40 1810.20 2500.00 3.1 0.75 2289.87 2500.00
32.5 43 1463.0 1.9 0.40 1994.22 2500.00 2.8 0.75 2500.00 2500.00
32.5 43 1613.0 1.7 0.40 2198.68 2500.00 2.6 0.75 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
