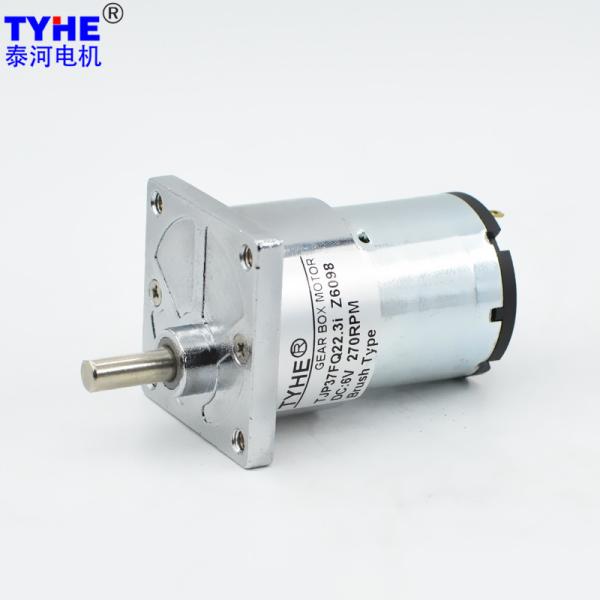

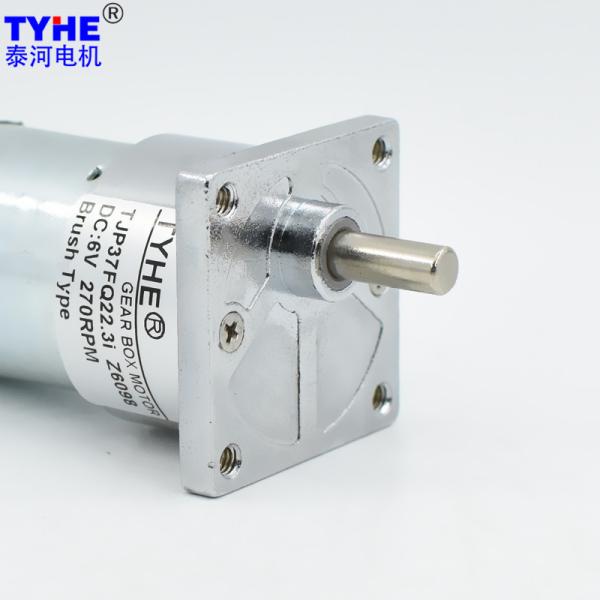

Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor
Specifications
Brand Name :
TYHE
Model Number :
TJP37FQ
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm size
Voltage :
6V
Speed :
50rpm or Customized
Torque :
1.7N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
Brush brushes
Type :
Gear Motor, Dc Micro Motor
Keywords :
Good Price Small 6 Volt 9v 12v 24v Low Rpm 10rpm 5rpm Low Speed High Torque 10kg Cm Dc Gear Motor For Valve
Description

Products Description

Good Price Small 6 Volt 9v 12v 24v Low Rpm 10rpm 5rpm Low Speed High Torque 10kg Cm Dc Gear Motor For Valve

2D drawing

Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor


Small 9V 24V DC Motor High Torque Low Speed 10rpm 5rpm 10 Kg Cm Torque DC Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3330 6 6000 100 4800 0.30 2.23 1.12 62.27 6.69 1.70
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 585.4 0.91 14.81 44.43
25.5 81 9.5 505.3 0.91 17.16 51.48
25.5 73 14.7 326.5 0.82 23.93 71.79
25.5 73 22.3 215.2 0.82 36.30 108.91
25.5 73 24.5 195.9 0.82 39.88 119.65
27.5 65.6 27.2 176.5 0.74 39.79 119.37
27.5 65.6 34.4 139.5 0.74 50.32 150.97
27.5 65.6 44.5 107.9 0.74 65.10 195.29
27.5 65.6 52.0 92.3 0.74 76.07 228.21
27.5 65.6 57.0 84.2 0.74 83.38 250.15
27.5 65.6 63.0 76.2 0.74 92.16 276.48
29.5 59 80.3 59.8 0.66 105.65 316.95
29.5 59 104.0 46.2 0.66 136.83 410.50
29.5 59 121.0 39.7 0.66 159.20 477.60
29.5 59 134.0 35.8 0.66 176.30 528.91
29.5 59 147.0 32.7 0.66 193.41 580.22
29.5 59 162.0 29.6 0.66 213.14 639.43
32.5 53 187.0 25.7 0.59 221.02 663.05
32.5 53 242.0 19.8 0.59 286.02 858.06
32.5 53 283.0 17.0 0.59 334.48 1003.43
32.5 53 312.0 15.4 0.59 368.75 1106.26
32.5 53 344.0 14.0 0.59 406.57 1219.72
32.5 53 379.0 12.7 0.59 447.94 1343.82
32.5 53 417.0 11.5 0.59 492.85 1478.56
35.5 47.8 437.0 11.0 0.54 465.82 1397.45
35.5 47.8 565.0 8.5 0.54 602.26 1806.77
35.5 47.8 660.0 7.3 0.54 703.52 2110.56
35.5 47.8 728.0 6.6 0.54 776.00 2328.01
35.5 47.8 802.0 6.0 0.54 854.88 2500.00
35.5 47.8 884.0 5.4 0.54 942.29 2500.00
35.5 47.8 974.0 4.9 0.54 1038.23 2500.00
35.5 47.8 1073.0 4.5 0.54 1143.75 2500.00
32.5 43 1540.0 3.1 0.48 1476.71 2500.00
32.5 43 1698.0 2.8 0.48 1628.21 2500.00
32.5 43 1871.0 2.6 0.48 1794.10 2500.00
32.5 43 2062.0 2.3 0.48 1977.25 2500.00
32.5 43 2272.0 2.1 0.48 2178.62 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
