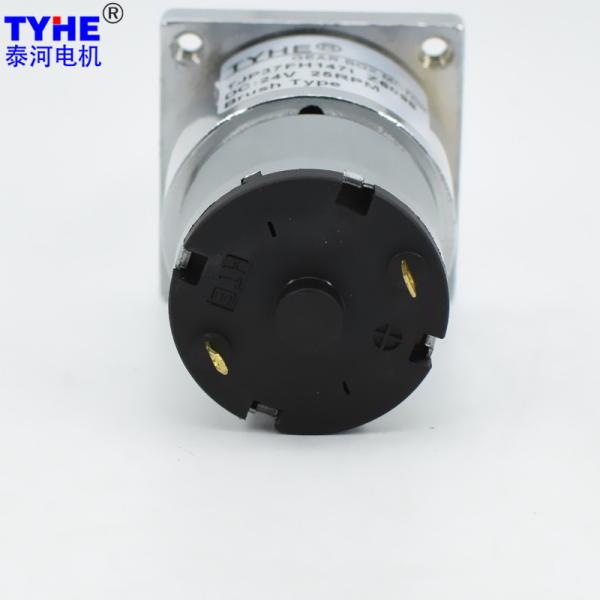

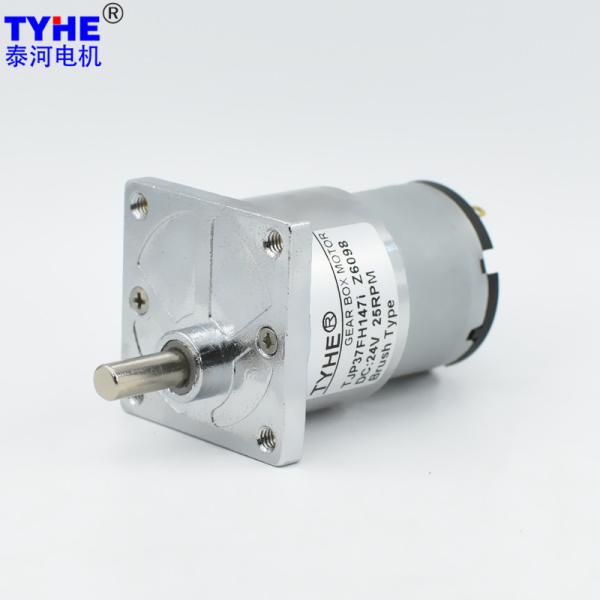

Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm
Specifications
Brand Name :
TYHE
Model Number :
TJP37FH
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
3V 6V 12V 24V
Speed :
50rpm or customized
Torque :
1.53N.m
Gear material :
Powder metallurgy, Steel
Commutation :
Brush
Type :
Gear Motor, mini Motor
Usage :
Auto cooker,robot
Keywords :
Od 37mm gearmotor 1.5v 3v 6v 12v 24v 10kg cm 30rpm 50 rpm 2 watt high torque low speed micro 520 dc metal geared motor
Description

Products Description

Od 37mm gearmotor 1.5v 3v 6v 12v 24v 10kg cm 30rpm 50 rpm 2 watt high torque low speed micro 520 dc metal geared motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3324 6 7000 80 5600 0.37 2.35 1.38 62.78 7.05 2.95
ZY3324 12 5000 32 4000 0.12 2.12 0.89 64.07 6.36 0.81
ZY3324 24 3500 12 2800 0.03 1.78 0.52 62.73 5.34 0.20
ZY3324 24 5000 17 4000 0.06 2.27 0.95 63.73 6.81 0.44
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-7000RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 682.9 1.12 15.61 46.83 487.8 0.72 14.08 42.24
25.5 81 9.5 589.5 1.12 18.08 54.25 421.1 0.72 16.31 48.94
25.5 73 14.7 381.0 1.01 25.22 75.65 272.1 0.65 22.75 68.25
25.5 73 22.3 251.1 1.01 38.26 114.77 179.4 0.65 34.51 103.53
25.5 73 24.5 228.6 1.01 42.03 126.09 163.3 0.65 37.92 113.75
27.5 65.6 27.2 205.9 0.90 41.93 125.79 147.1 0.58 37.83 113.48
27.5 65.6 34.4 162.8 0.90 53.03 159.09 116.3 0.58 47.84 143.52
27.5 65.6 44.5 125.8 0.90 68.60 205.80 89.9 0.58 61.89 185.66
27.5 65.6 52.0 107.7 0.90 80.16 240.49 76.9 0.58 72.32 216.95
27.5 65.6 57.0 98.2 0.90 87.87 263.61 70.2 0.58 79.27 237.81
27.5 65.6 63.0 88.9 0.90 97.12 291.36 63.5 0.58 87.62 262.85
29.5 59 80.3 69.7 0.81 111.34 334.01 49.8 0.52 100.44 301.32
29.5 59 104.0 53.8 0.81 144.20 432.59 38.5 0.52 130.08 390.25
29.5 59 121.0 46.3 0.81 167.77 503.30 33.1 0.52 151.35 454.04
29.5 59 134.0 41.8 0.81 185.79 557.37 29.9 0.52 167.61 502.82
29.5 59 147.0 38.1 0.81 203.82 611.45 27.2 0.52 183.87 551.60
29.5 59 162.0 34.6 0.81 224.61 673.84 24.7 0.52 202.63 607.89
32.5 53 187.0 29.9 0.73 232.91 698.73 21.4 0.47 210.11 630.34
32.5 53 242.0 23.1 0.73 301.41 904.23 16.5 0.47 271.91 815.73
32.5 53 283.0 19.8 0.73 352.48 1057.43 14.1 0.47 317.98 953.94
32.5 53 312.0 17.9 0.73 388.60 1165.79 12.8 0.47 350.56 1051.69
32.5 53 344.0 16.3 0.73 428.45 1285.36 11.6 0.47 386.52 1159.56
32.5 53 379.0 14.8 0.73 472.04 1416.13 10.6 0.47 425.84 1277.53
32.5 53 417.0 13.4 0.73 519.37 1558.12 9.6 0.47 468.54 1405.62
35.5 47.8 437.0 12.8 0.66 490.88 1472.65 9.2 0.42 442.84 1328.51
35.5 47.8 565.0 9.9 0.66 634.66 1903.99 7.1 0.42 572.55 1717.65
35.5 47.8 660.0 8.5 0.66 741.38 2224.13 6.1 0.42 668.82 2006.45
35.5 47.8 728.0 7.7 0.66 817.76 2453.29 5.5 0.42 737.73 2213.18
35.5 47.8 802.0 7.0 0.66 900.89 2500.00 5.0 0.42 812.71 2438.14
35.5 47.8 884.0 6.3 0.66 993.00 2500.00 4.5 0.42 895.81 2500.00
35.5 47.8 974.0 5.7 0.66 1094.09 2500.00 4.1 0.42 987.01 2500.00
35.5 47.8 1073.0 5.2 0.66 1205.30 2500.00 3.7 0.42 1087.34 2500.00
32.5 43 1540.0 3.6 0.59 1556.17 2500.00 2.6 0.38 1403.86 2500.00
32.5 43 1698.0 3.3 0.59 1715.83 2500.00 2.4 0.38 1547.90 2500.00
32.5 43 1871.0 3.0 0.59 1890.65 2500.00 2.1 0.38 1705.60 2500.00
32.5 43 2062.0 2.7 0.59 2083.65 2500.00 1.9 0.38 1879.72 2500.00
32.5 43 2272.0 2.5 0.59 2295.86 2500.00 1.8 0.38 2071.16 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 341.5 0.42 11.82 35.47 487.8 0.77 15.08 45.23
25.5 81 9.5 294.7 0.42 13.70 41.09 421.1 0.77 17.47 52.40
25.5 73 14.7 190.5 0.38 19.10 57.30 272.1 0.69 24.36 73.08
25.5 73 22.3 125.6 0.38 28.98 86.93 179.4 0.69 36.95 110.86
25.5 73 24.5 114.3 0.38 31.84 95.51 163.3 0.69 40.60 121.80
27.5 65.6 27.2 102.9 0.34 31.76 95.28 147.1 0.62 40.50 121.51
27.5 65.6 34.4 81.4 0.34 40.17 120.50 116.3 0.62 51.23 153.68
27.5 65.6 44.5 62.9 0.34 51.96 155.89 89.9 0.62 66.27 198.80
27.5 65.6 52.0 53.8 0.34 60.72 182.16 76.9 0.62 77.43 232.30
27.5 65.6 57.0 49.1 0.34 66.56 199.67 70.2 0.62 84.88 254.64
27.5 65.6 63.0 44.4 0.34 73.56 220.69 63.5 0.62 93.81 281.44
29.5 59 80.3 34.9 0.31 84.33 252.99 49.8 0.56 107.55 322.64
29.5 59 104.0 26.9 0.31 109.22 327.66 38.5 0.56 139.29 417.86
29.5 59 121.0 23.1 0.31 127.07 381.22 33.1 0.56 162.06 486.17
29.5 59 134.0 20.9 0.31 140.73 422.18 29.9 0.56 179.47 538.40
29.5 59 147.0 19.0 0.31 154.38 463.14 27.2 0.56 196.88 590.63
29.5 59 162.0 17.3 0.31 170.13 510.40 24.7 0.56 216.97 650.90
32.5 53 187.0 15.0 0.28 176.42 529.25 21.4 0.50 224.98 674.94
32.5 53 242.0 11.6 0.28 228.30 684.91 16.5 0.50 291.15 873.45
32.5 53 283.0 9.9 0.28 266.98 800.95 14.1 0.50 340.48 1021.43
32.5 53 312.0 9.0 0.28 294.34 883.02 12.8 0.50 375.37 1126.10
32.5 53 344.0 8.1 0.28 324.53 973.59 11.6 0.50 413.87 1241.60
32.5 53 379.0 7.4 0.28 357.55 1072.65 10.6 0.50 455.97 1367.92
32.5 53 417.0 6.7 0.28 393.40 1180.19 9.6 0.50 501.69 1505.08
35.5 47.8 437.0 6.4 0.25 371.82 1115.45 9.2 0.45 474.17 1422.51
35.5 47.8 565.0 5.0 0.25 480.72 1442.17 7.1 0.45 613.06 1839.18
35.5 47.8 660.0 4.2 0.25 561.55 1684.66 6.1 0.45 716.14 2148.42
35.5 47.8 728.0 3.8 0.25 619.41 1858.23 5.5 0.45 789.92 2369.77
35.5 47.8 802.0 3.5 0.25 682.37 2047.12 5.0 0.45 870.22 2500.00
35.5 47.8 884.0 3.2 0.25 752.14 2256.43 4.5 0.45 959.19 2500.00
35.5 47.8 974.0 2.9 0.25 828.72 2486.15 4.1 0.45 1056.85 2500.00
35.5 47.8 1073.0 2.6 0.25 912.95 2500.00 3.7 0.45 1164.27 2500.00
32.5 43 1540.0 1.8 0.22 1178.72 2500.00 2.6 0.41 1503.19 2500.00
32.5 43 1698.0 1.6 0.22 1299.65 2500.00 2.4 0.41 1657.42 2500.00
32.5 43 1871.0 1.5 0.22 1432.06 2500.00 2.1 0.41 1826.28 2500.00
32.5 43 2062.0 1.4 0.22 1578.25 2500.00 1.9 0.41 2012.72 2500.00
32.5 43 2272.0 1.2 0.22 1738.99 2500.00 1.8 0.41 2217.70 2500.00

2D drawing

Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm


Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm

Please let us know your requirements and we will provide you with transmission solutions.
