Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor
Specifications
Brand Name :
TYHE
Model Number :
TJP37RGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed

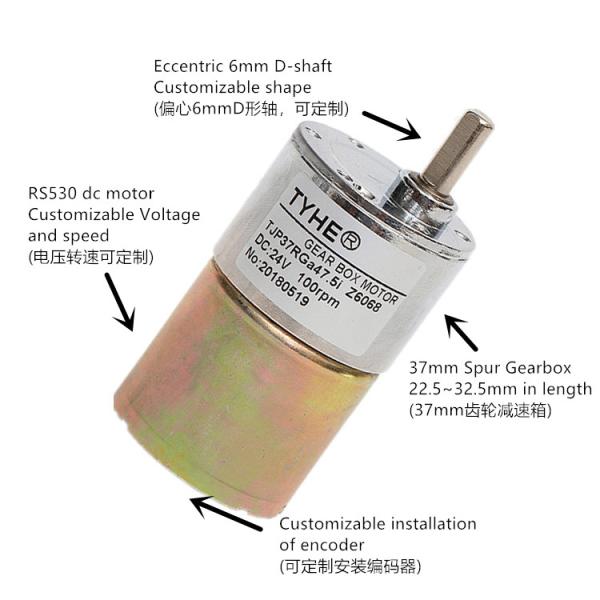

Size :
37mm diameter
Voltage :
12v 6v 24v or customized
Speed :
Customized
Torque :
1.5N.m
Commutation :
brushed
Type :
Brushed dc motor, dc mini motor
Keywords :
Mini Dia 37mm 6v 12v 24v high torque low speed 5rpm 60 rpm 1.5nm 2nm 20kg 15kgf load micro PMDC 520 dc geared motor
Description

Products Description

high torque low rpm RS555 24v 12v 10rpm 30rpm 50rpm 100rpm 200rpm 300rpm 15 watt 20w 2nm 1nm dc geared motor

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Curren
rpm mA rpm A mN.m W % mN.m A
RS555 6 6000 560 4800 1.92 14.20 7.14 61.85 42.60 13.00
RS555 12 3000 110 2400 0.42 12.30 3.09 62.07 36.90 3.00
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 12 5700 290 4560 1.07 17.20 8.21 63.81 51.60 7.65
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 12 7600 360 6080 1.65 20.10 12.80 64.69 60.30 13.30
RS555 12 9000 390 7200 1.79 18.50 13.95 64.81 55.50 14.50
RS555 12 11000 600 8800 2.75 22.30 20.55 62.27 66.90 22.20
RS555 24 3500 70 2800 0.31 15.80 4.63 61.60 47.40 2.50
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 6000 160 4800 0.53 16.80 8.44 66.18 50.40 3.50
RS555 24 6500 170 5200 0.68 19.00 10.35 63.39 57.00 5.10
RS555 24 7600 220 6080 1.01 23.20 14.77 61.24 69.60 8.10

2D drawing

Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor


Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor


Mini Dia 37mm 6v 12v 24v High Torque Low Speed 5rpm 60 Rpm 1.5nm 2nm 20kg 15kgf Load Micro PMDC 520 Dc Geared Motor

Please let us know your requirements and we will provide you with transmission solutions.
