CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise
Specifications
Brand Name :
TYHE
Model Number :
TJX28ZRL
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
28mm diameter
Voltage :
5v 6v 12v 24v or customized
Speed :
1-1200rpm Customized
Torque :
5N.m
Gear material :
Steel gears
Commutation :
brushes, brush
Type :
DC Planetary Gear Motor, Mini Motor
Keywords :
TYHE Low Noise 28mm Rs385 6v 7.4v 12v 24v 100rpm 60rpm 5w Dc Planetary Gear Motor For Automatic Feeder Machine
Description

Products Description

TYHE Low Noise 28mm Rs385 6v 7.4v 12v 24v 100rpm 60rpm 5w Dc Planetary Gear Motor For Automatic Feeder Machine

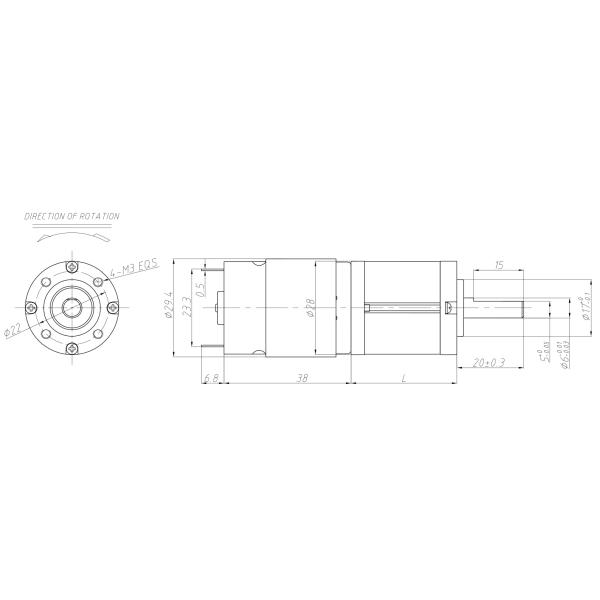

2D drawing

CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise


CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS385 12 5500 140 4400 0.30 5.03 2.32 64.37 15.09 1.08
RS385 12 8800 205 7040 0.64 6.50 4.79 62.31 19.50 4.00
RS385 12 20000 320 16000 1.73 8.10 13.57 65.37 24.30 15.00
RS385 24 5500 55 4400 0.15 5.10 2.35 64.20 15.30 0.84
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-8800RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
20.2 90 3.4 1294.1 2.09 15.39 46.18 2070.6 4.31 19.89 59.67
20.2 90 4.6 956.5 2.09 20.82 62.47 1530.4 4.31 26.91 80.73
25.9 81 11.2 392.9 1.88 45.63 136.90 628.6 3.88 58.97 176.90
25.9 81 15.5 283.9 1.88 63.15 189.45 454.2 3.88 81.61 244.82
25.9 81 21.5 204.7 1.88 87.60 262.79 327.4 3.88 113.20 339.59
31.7 73 38.0 115.8 1.69 139.53 418.60 185.3 3.50 180.31 540.93
31.7 73 52.0 84.6 1.69 190.94 572.82 135.4 3.50 246.74 740.22
31.7 73 72.0 61.1 1.69 264.38 793.13 97.8 3.50 341.64 1024.92
31.7 73 100.0 44.0 1.69 367.19 1101.57 70.4 3.50 474.50 1423.50
37.5 65.6 126.0 34.9 1.52 415.76 1247.28 55.9 3.14 537.26 1611.79
37.5 65.6 175.0 25.1 1.52 577.44 1732.33 40.2 3.14 746.20 2238.60
37.5 65.6 242.0 18.2 1.52 798.52 2395.57 29.1 3.14 1031.89 3095.66
37.5 65.6 334.0 13.2 1.52 1102.09 3306.28 21.1 3.14 1424.18 4272.53
37.5 65.6 462.0 9.5 1.52 1524.45 4573.36 15.2 3.14 1969.97 5000.00
43.3 59 424.0 10.4 1.37 1258.30 5000.00 16.6 2.83 1626.04 4878.12
43.3 59 586.0 7.5 1.37 1739.07 5000.00 12.0 2.83 2247.31 5000.00
43.3 59 810.0 5.4 1.37 2403.84 5000.00 8.7 2.83 3106.35 5000.00
43.3 59 1120.0 3.9 1.37 3323.82 5000.00 6.3 2.83 4295.20 5000.00
43.3 59 1549.0 2.8 1.37 4596.97 5000.00 4.5 2.83 5000.00 5000.00
43.3 59 2142.0 2.1 1.37 5000.00 5000.00 3.3 2.83 5000.00 5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-20000RPM Input 24V-5500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
20.2 90 3.4 4705.9 12.21 24.79 74.36 1294.1 2.11 15.61 46.82
20.2 90 4.6 3478.3 12.21 33.53 100.60 956.5 2.11 21.11 63.34
25.9 81 11.2 1428.6 10.99 73.48 220.45 392.9 1.90 46.27 138.80
25.9 81 15.5 1032.3 10.99 101.70 305.09 283.9 1.90 64.03 192.09
25.9 81 21.5 744.2 10.99 141.06 423.18 204.7 1.90 88.82 266.45
31.7 73 38.0 421.1 9.91 224.69 674.08 115.8 1.72 141.47 424.42
31.7 73 52.0 307.7 9.91 307.48 922.43 84.6 1.72 193.60 580.79
31.7 73 72.0 222.2 9.91 425.74 1277.21 61.1 1.72 268.06 804.17
31.7 73 100.0 160.0 9.91 591.30 1773.90 44.0 1.72 372.30 1116.90
37.5 65.6 126.0 127.0 8.90 669.51 2008.54 34.9 1.54 421.55 1264.64
37.5 65.6 175.0 91.4 8.90 929.88 2789.64 25.1 1.54 585.48 1756.44
37.5 65.6 242.0 66.1 8.90 1285.89 3857.67 18.2 1.54 809.64 2428.91
37.5 65.6 334.0 47.9 8.90 1774.74 5000.00 13.2 1.54 1117.43 3352.29
37.5 65.6 462.0 34.6 8.90 2454.88 5000.00 9.5 1.54 1545.67 4637.00
43.3 59 424.0 37.7 8.01 2026.30 5000.00 10.4 1.39 1275.82 3827.45
43.3 59 586.0 27.3 8.01 2800.49 5000.00 7.5 1.39 1763.27 5000.00
43.3 59 810.0 19.8 8.01 3870.99 5000.00 5.4 1.39 2437.29 5000.00
43.3 59 1120.0 14.3 8.01 5000.00 5000.00 3.9 1.39 3370.08 5000.00
43.3 59 1549.0 10.3 8.01 5000.00 5000.00 2.8 1.39 4660.94 5000.00
43.3 59 2142.0 7.5 8.01 5000.00 5000.00 2.1 1.39 5000.00 5000.00

Please let us know your requirements and we will provide you with transmission solutions.
