Specifications
Brand Name :
TYHE
Model Number :
TJX28RM
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
28mm diameter
Voltage :
3v 6v 12v 24v or customized
Speed :
2-1500rpm Customized
Torque :
5N.m
Gear material :
Steel
Commutation :
brushes
Type :
DC Planetary Gear Motor, Mini Motor
Keywords :
Bulk Sale D28mm 12v 100rpm 5400rpm Micro PMDC Dc Planetary Steel Gear Motor For Machine Design
Description

Products Description

Bulk Sale D28mm 12v 100rpm 5400rpm Micro PMDC Dc Planetary Steel Gear Motor For Machine Design

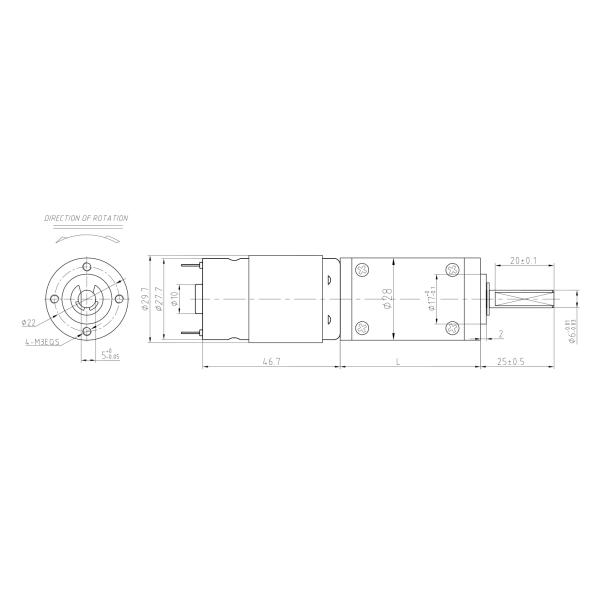

2D drawing

Steel Gear 12V PMDC DC Planetary Gear Motor 100rpm 5400rpm


Steel Gear 12V PMDC DC Planetary Gear Motor 100rpm 5400rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS395 12 4500 100 3600 0.29 5.90 2.22 63.55 17.70 1.70
RS395 12 7500 160 6000 0.62 7.30 4.59 62.15 21.90 4.50
RS395 24 5000 50 4000 0.17 6.30 2.64 64.68 18.90 1.14
RS395 24 5300 60 4240 0.20 6.70 2.97 62.49 20.10 1.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
31.2 90 3.7 973.0 2.00 19.65 58.94 1621.6 4.13 24.31 72.93
31.2 90 5.2 692.3 2.00 27.61 82.84 1153.8 4.13 34.16 102.49
40 81 13.7 262.8 1.80 65.47 196.42 438.0 3.71 81.01 243.02
40 81 19.2 187.5 1.80 91.76 275.27 312.5 3.71 113.53 340.59
40 81 26.9 133.8 1.80 128.56 385.67 223.0 3.71 159.06 477.18
40 81 35.0 102.9 1.80 167.27 501.80 171.4 3.71 206.96 620.87
48.8 73 51.0 70.6 1.62 219.66 658.97 117.6 3.35 271.78 815.34
48.8 73 71.0 50.7 1.62 305.80 917.39 84.5 3.35 378.36 1135.08
48.8 73 100.0 36.0 1.62 430.70 1292.10 60.0 3.35 532.90 1598.70
48.8 73 139.0 25.9 1.62 598.67 1796.02 43.2 3.35 740.73 2222.19
57.6 65.6 189.0 19.0 1.46 731.51 2194.52 31.7 3.01 905.08 2715.25
57.6 65.6 264.0 13.6 1.46 1021.79 3065.36 22.7 3.01 1264.24 3792.73
57.6 65.6 369.0 9.8 1.46 1428.18 4284.53 16.3 3.01 1767.07 5000.00
57.6 65.6 514.0 7.0 1.46 1989.39 5000.00 11.7 3.01 2461.44 5000.00
57.6 65.6 721.0 5.0 1.46 2790.56 5000.00 8.3 3.01 3452.72 5000.00
66.4 59 699.0 5.2 1.31 2433.22 5000.00 8.6 2.71 3010.59 5000.00
66.4 59 977.0 3.7 1.31 3400.94 5000.00 6.1 2.71 4207.94 5000.00
66.4 59 1367.0 2.6 1.31 4758.53 5000.00 4.4 2.71 5000.00 5000.00
66.4 59 1911.0 1.9 1.31 5000.00 5000.00 3.1 2.71 5000.00 5000.00
66.4 59 2672.0 1.3 1.31 5000.00 5000.00 2.2 2.71 5000.00 5000.00
66.4 59 3736.0 1.0 1.31 5000.00 5000.00 1.6 2.71 5000.00 5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-5300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
31.2 90 3.7 1081.1 2.37 20.98 62.94 1145.9 2.68 22.31 66.93
31.2 90 5.2 769.2 2.37 29.48 88.45 815.4 2.68 31.36 94.07
40 81 13.7 292.0 2.14 69.91 209.73 309.5 2.41 74.35 223.05
40 81 19.2 208.3 2.14 97.98 293.93 220.8 2.41 104.20 312.60
40 81 26.9 148.7 2.14 137.27 411.81 157.6 2.41 145.99 437.96
40 81 35.0 114.3 2.14 178.61 535.82 121.1 2.41 189.95 569.84
48.8 73 51.0 78.4 1.93 234.55 703.65 83.1 2.17 249.44 748.32
48.8 73 71.0 56.3 1.93 326.53 979.59 59.7 2.17 347.26 1041.78
48.8 73 100.0 40.0 1.93 459.90 1379.70 42.4 2.17 489.10 1467.30
48.8 73 139.0 28.8 1.93 639.26 1917.78 30.5 2.17 679.85 2039.55
57.6 65.6 189.0 21.2 1.73 781.10 2343.30 22.4 1.95 830.69 2492.08
57.6 65.6 264.0 15.2 1.73 1091.06 3273.18 16.1 1.95 1160.33 3481.00
57.6 65.6 369.0 10.8 1.73 1525.00 4575.01 11.5 1.95 1621.83 4865.49
57.6 65.6 514.0 7.8 1.73 2124.26 5000.00 8.2 1.95 2259.13 5000.00
57.6 65.6 721.0 5.5 1.73 2979.75 5000.00 5.9 1.95 3168.94 5000.00
66.4 59 699.0 5.7 1.56 2598.18 5000.00 6.1 1.76 2763.15 5000.00
66.4 59 977.0 4.1 1.56 3631.51 5000.00 4.3 1.76 3862.08 5000.00
66.4 59 1367.0 2.9 1.56 5000.00 5000.00 3.1 1.76 5000.00 5000.00
66.4 59 1911.0 2.1 1.56 5000.00 5000.00 2.2 1.76 5000.00 5000.00
66.4 59 2672.0 1.5 1.56 5000.00 5000.00 1.6 1.76 5000.00 5000.00
66.4 59 3736.0 1.1 1.56 5000.00 5000.00 1.1 1.76 5000.00 5000.00

Please let us know your requirements and we will provide you with transmission solutions.
