LPEP 385/20M Series Surge Protective Device with 385V Max Continuous Voltage 35mm Rail Mounting and Up≤1.8kV Protection Level
LPEP 385/20M Series Surge Protective Device with 385V Max Continuous Voltage 35mm Rail Mounting and Up≤1.8kV Protection Level
Specifications
Brand Name :
GENY
Model Number :
LPEP 270/20G T3
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Price :
negotiate rates
Payment Terms :
T/T,L/C,D/P,T/T
Supply Ability :
10 pcs/ 1 months
Delivery Time :
1~4weeks
Packaging Details :
Plywood cases
Rated Voltage “U0” :
220V
Max. Continuous Voltage “Uc” :
270V
Max. Discharge Current “Imax” :
40kA
Frequency :
0-65Hz
Description

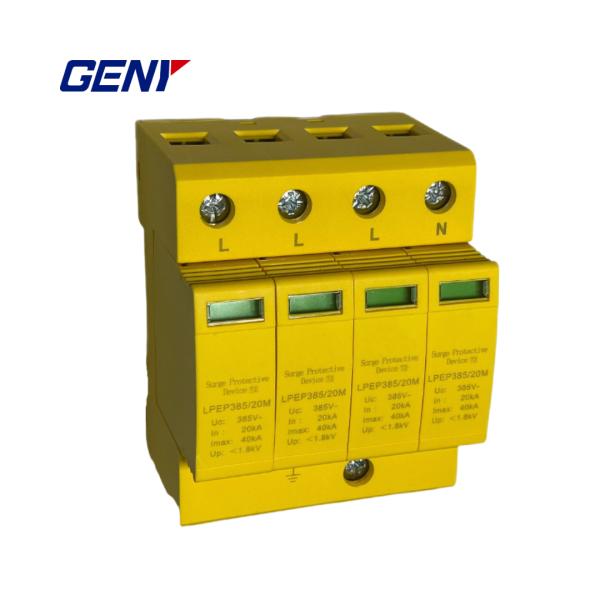

The LPEP 385/20M Series Surge Protective Device


  • The LPEP 385/20M T2 Series Surge Protective Device is designed for overvoltage/surge protection in power secondary systems, including distribution cabinets, feeder panels, control/monitoring panels, UPS cabinets.


Features & Functions



■ High-quality phosphor bronze pins ensure minimal residual voltage and withstand repeated plugging.

■ Advanced current-sharing technology for continuous and multiple lightning strikes.

■ Fail-safe thermal cutoff mechanism prevents short circuits during faults.

■ Compatible with online monitoring systems.

■ V0 fire-rated housing, 35mm rail mounting for easy installation and maintenance.


Operating Conditions


Temperature: -40°C to +60°C

Humidity: 30%–95% RH (at 25°C)

Atmospheric Pressure: ≥74.8 kPa (equivalent to 2500m altitude)



Specifications



Model

LPEP385/20M

-4P/DL

Rated Voltage “U0”

220V

Max. Continuous Voltage “Uc”

385V

Nominal Discharge Current “In”(8/20uS)

20kA

Max. Discharge Current “Imax”

40kA

Protection Level “Up”

Up≤1.8kV

Response Time “tA”

≤25ns

Frequency

0-65Hz

Protection Model

Common Mode Protection

Power System

TT, TN

Dimensions

72mm×90mm×68mm
