WD118 Dual-Channel Adjustable Photoelectric Sampler
WD118 Dual-Channel Adjustable Photoelectric Sampler
WD118 Dual-Channel Adjustable Photoelectric Sampler
WD118 Dual-Channel Adjustable Photoelectric Sampler
WD118 Dual-Channel Adjustable Photoelectric Sampler
WD118 Dual-Channel Adjustable Photoelectric Sampler
Specifications
Brand Name :
GENY
Model Number :
WD118
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Price :
negotiate rates
Payment Terms :
L/C,D/P
Supply Ability :
100 pcs/ 1 months
Delivery Time :
1~4weeks
Packaging Details :
Plywood cases
Operating Voltage :
DC 4.5–6 V
Output Current :
3 mA – 5 mA
Sampling Distance :
1 mm – 2.0 mm
Power Consumption :
≤ 0.35 W (no-load condition)
Description

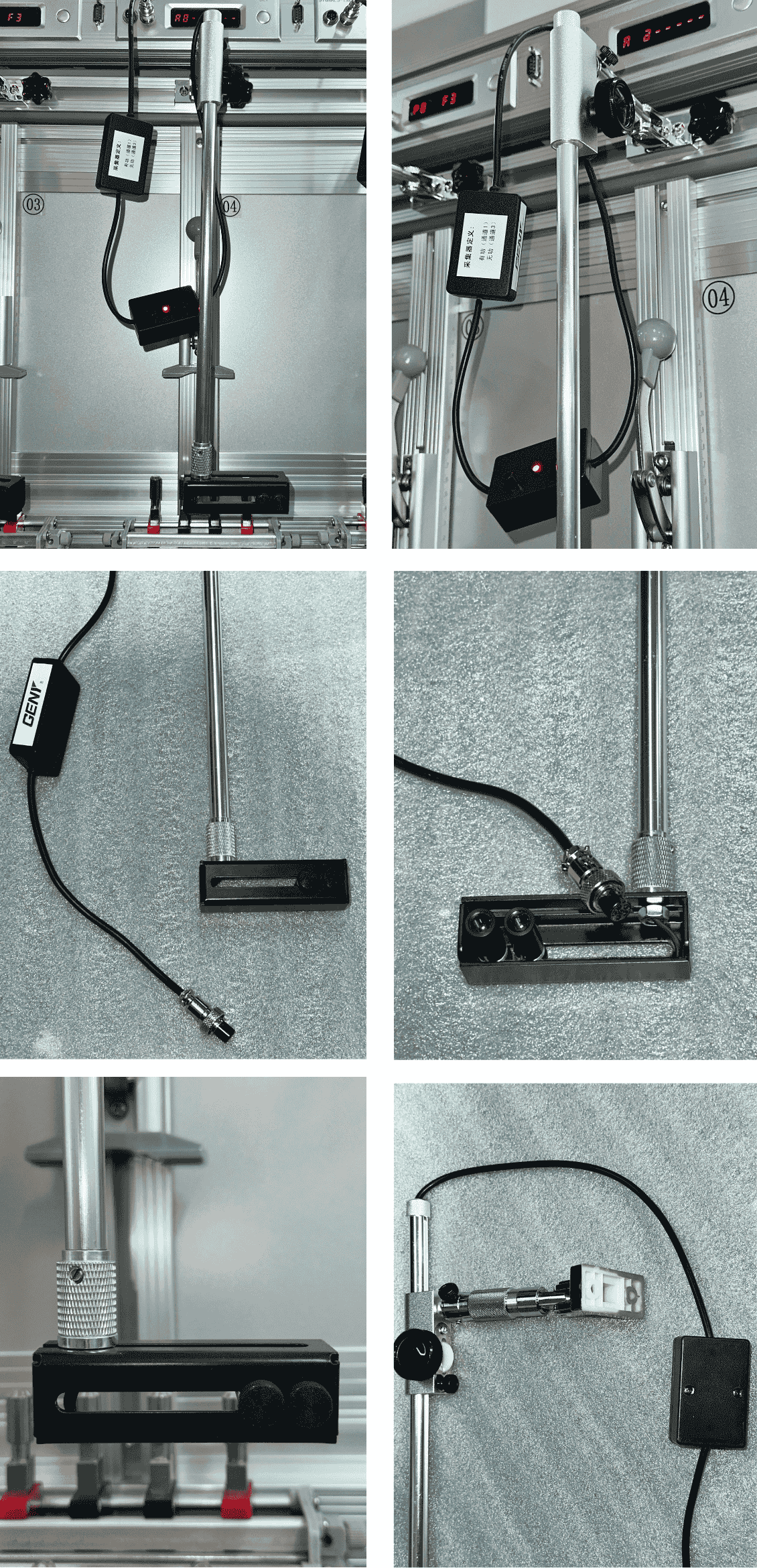

WD118 Dual-Channel Adjustable Photoelectric Sampler


Key Features


  1. Compact structure with stable and reliable performance, specifically designed for use in electric meter test systems.

  2. Utilizes imported photo receiving components, providing excellent noise immunity and strong resistance to external interference.

  3. High optical pulse sampling frequency up to 200 Hz, fully compatible with various meter light sources (blue, yellow, and green LEDs).



Operating Instructions


  1. The dual-channel sampler supports free adjustment in the up, down, left, and right directions; the minimum adjustable spacing is 1 cm (loosen the nut for fine adjustment).

  2. Red LED indicates active energy (active power) signal; green LED indicates reactive energy (reactive power) signal.


Technical Specifications


  1. Operating Voltage: DC 4.5–6 V

  2. Operating Current: ≤ 50 mA (all parameters below are measured at a 5 V power supply)

  3. Power Consumption: ≤ 0.35 W (no-load condition)

  4. Sampling Distance: 1 mm – 2.0 mm

  5. Output Signal:

    • High level ≥ 4.5 V (no black mark detected)

    • Low level ≤ 0.2 V (black mark detected)

  6. Output Current: 3 mA – 5 mA

  7. Anti-interference Performance: Deburring / glitch suppression ≤ 2.0 mm

  8. Sampling Frequency: 200 Hz


Product Details


WD118 Dual-Channel Adjustable Photoelectric Sampler
