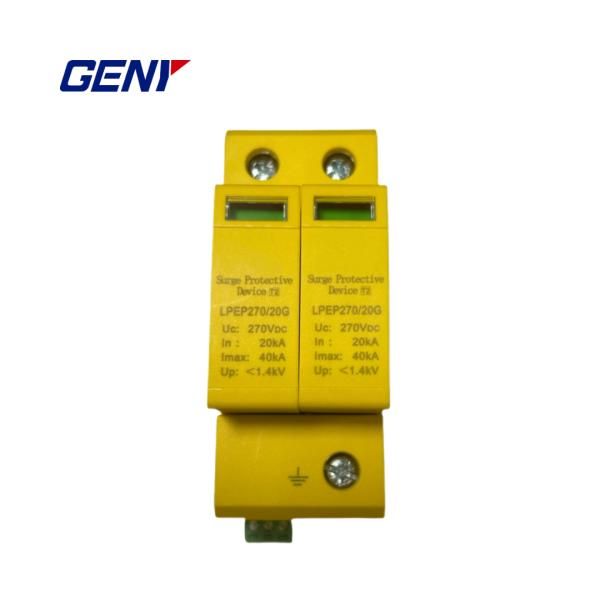

The LPEP 270/20G T3 Series Surge Protective Device
The LPEP 270/20G T3 Series Surge Protective Device
Specifications
Brand Name :
GENY
Model Number :
LPEP270/20G-2P/DL
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Price :
negotiate rates
Payment Terms :
T/T,L/C,D/P,T/T
Supply Ability :
10 pcs/ 1 months
Delivery Time :
6~8weeks
Packaging Details :
Plywood cases
Rated Voltage “U0” :
220V
Max. Continuous Voltage “Uc” :
270V
Dimensions :
36mm×90mm×68mm
Material :
Aluminum Alloy
Description

The LPEP 270/20G T3 Series Surge Protective Device


  • The LPEP 270/20G T3 Series Surge Protective Device is primarily designed for DC power supply protection in secondary power systems, including distribution cabinets, feeder panels, control/monitoring panels, and UPS cabinets.


Features and Functions


■ Leakage current-free structural design ensures high safety and reliability.

■ Advanced current balancing technology enables resistance to continuous and multiple lightning strikes.

■ Reliable thermal resistance tripping mechanism quickly disconnects from the grid during faults to prevent short circuits.

■ Remote signaling functionality allows integration into online monitoring systems.

■ Modular design with 35mm rail mounting facilitates easy installation and maintenance.


Operating Conditions

Temperature: -40°C to +60°C

Humidity: 30%–95% RH (at 25°C)

Atmospheric Pressure: ≥74.8 kPa (equivalent to 2500m altitude)



Specifications



Model

LPEP270/20G-2P/DL

Rated Voltage “U0”

220V

Max. Continuous Voltage “Uc”

270V

Nominal Discharge Current “In”(8/20uS)

20kA

Max. Discharge Current “Imax”

40kA

Protection Level “Up”

Up≤1.4kV

Response Time “tA”

≤100ns

Protection Model

Common Mode Protection

Dimensions

36mm×90mm×68mm
