Hot Dip Galvanized Traffic Signal Pole with Wind Resistance 160Km/h for Highway Road
Hot Dip Galvanized Traffic Signal Pole with Wind Resistance 160Km/h for Highway Road
Hot Dip Galvanized Traffic Signal Pole with Wind Resistance 160Km/h for Highway Road
Hot Dip Galvanized Traffic Signal Pole with Wind Resistance 160Km/h for Highway Road
Specifications
MOQ :
1
Price :
$200
Brand Name :
Hongxin
Model Number :
TSP-6
Certification :
ISO 9001
Place of Origin :
China
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons per month
Delivery Time :
15 days
Packaging Details :
Sack, Cloth
Pole height :
5m to 15m
Pole shape :
Round conical; Octagonal tapered; Straight square; Tubular stepped
Bracket type :
Single or double
Length limit :
Within 14m once forming
Wall thickness :
2.5mm to 20mm
Welding standard :
CWB
Jointing method :
Insert mode, innerflange mode, face to face joint mode
Base plate shape :
Square or round
Galvanizing thickness :
80-100µm average
Galvanizing standard :
GB/T 13912-2002 or ASTM A123, IS: 2626-1985
Powder coating :
Pure polyester powder painting
Wind resistance :
160Km/h
Manufacturing standard :
GB/T 1591-1994
Rated current :
12 A, 15 A, 16 A, 20A, 30 A, 32 A, 63 A, 60 A, 225 A, 220 A
Rated voltage :
12 V, 24 V, 48 V, 110 V, 120 V, 125 V, 240 V, 380 V, 400 V, 6 kV, 525 V
Description

Hongxin's Traffic pole's Specification:

Pole’s height

5m to 15m

Shape of pole

Round conical; Octagonal tapered; Straight square; Tubular stepped;

Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine

Brackets/ Arm

Single or double brackets/ arm are in the shape and dimension as per customers requirement

Length

Within 14m once forming without slip joint

Wall thickness

2.5mm to 20mm

Welding

It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.

And confirms with international welding standard of CWB

Jointing

Jointing of pole with insert mode,innerflange mode,face to face joint mode.

Base plate mounted

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.

Ground mounted

The length buried underground as per customers requirement.

Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance

Aganist wind pressure of 160Km/h

Manufacturing

According to GB/T 1591-1994.

Quality Control

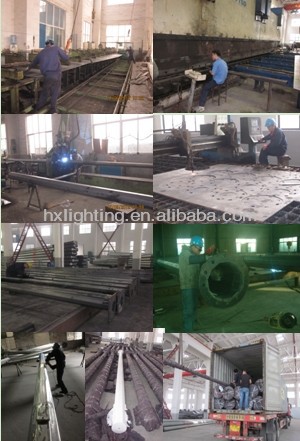

We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in

the plant.
