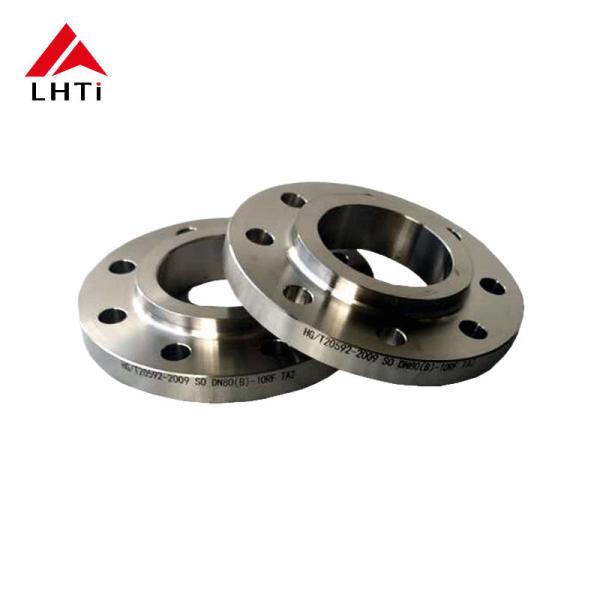

DIN 2501 Plate Flange Gr1 Gr2 Gr5 Titanium Plate Flange PN5 for Pipeline Systems
DIN 2501 Plate Flange Gr1 Gr2 Gr5 Titanium Plate Flange PN5 for Pipeline Systems
Specifications
Brand Name :
LHTi
Model Number :
Titanium Flange
Certification :
ISO9001,CE,etc
Place of Origin :
Baoji, China
MOQ :
100 pieces
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Ton/Tons Per Month
Delivery Time :
about 15-45 days for delivery
Packaging Details :
Plywood case or pallet, or as per your requirement
Material Grade :
Gr2 Gr5 Gr7
Porduct Name :
Titanium blind flange
Connection Type :
Weld
Standards :
ASME B16.5
Bolt Circle Diameter :
3.5 inches
Processing Service :
Welding
Processing Method :
Forged, CNC machine
Sealing Type :
RF
Description

DIN 2501 Plate Flange Gr1 Gr2 Gr5 Titanium Plate Flange PN5 for Pipeline Systems

Product Overview

The Blank Flange Plate DIN2501 Gr1 Gr2 Gr5 PN5 is a high-quality titanium plate flange designed for use in pipeline systems. Manufactured in compliance with the DIN2501 standard, this blank flange offers exceptional strength, superior corrosion resistance, and long-lasting durability. Made from titanium alloys Gr1, Gr2, and Gr5, this flange is ideal for medium-pressure applications (PN5) and is particularly well-suited for environments where corrosion resistance and high strength are critical.

DIN 2501 Plate Flange Gr1 Gr2 Gr5 Titanium Plate Flange PN5 for Pipeline Systems

Key Features:

Feature Description
Material Available in Gr1, Gr2, and Gr5 titanium alloys. Gr1 provides excellent corrosion resistance, Gr2 offers a balance of strength and corrosion resistance, while Gr5 provides added strength for demanding applications.
Pressure Rating PN5, suitable for systems with a maximum working pressure of 5 bar (about 73 psi).
Corrosion Resistance Titanium alloys are naturally resistant to corrosion, making them ideal for harsh environments like seawater, chemicals, and high-salinity areas.
High Durability Titanium flanges are known for their longevity, even under high-pressure and corrosive conditions, reducing the need for frequent maintenance and replacements.
Lightweight Titanium alloys are lighter than steel, making them easier to handle and install without compromising strength or durability.
Excellent Strength-to-Weight Ratio Titanium provides a higher strength-to-weight ratio compared to many other materials, making this flange ideal for systems that require both strength and weight efficiency.

Technical Specifications

Parameter Value
Material Gr1, Gr2, Gr5 Titanium Alloy
Size Customizable to meet client specifications (common sizes: DN50-DN200)
Pressure Rating PN5, with a maximum pressure of 5 bar (73 psi)
Temperature Range Suitable for temperatures from -50°C to 300°C
Standard Complies with DIN2501 standard
Surface Treatment Natural titanium surface for excellent corrosion protection
Thickness Varies according to client requirements, typically from 5mm to 50mm

Advantages of Titanium Blank Flange Plates

Advantage Description
Exceptional Corrosion Resistance Titanium is highly resistant to oxidation and corrosion, even in harsh and aggressive environments, ensuring long-lasting performance.
High Strength-to-Weight Ratio Titanium alloys offer impressive strength without adding significant weight, making it easier to handle and install in pipeline systems.
Enhanced Durability Titanium’s exceptional durability extends the lifespan of pipeline systems, reducing downtime and maintenance costs.
Cost-Effective in the Long Term Although titanium is more expensive initially, its longevity and corrosion resistance make it a cost-effective solution over the lifetime of a pipeline system.
Suitable for a Wide Range of Industries Perfect for use in industries like chemical processing, marine engineering, water treatment, and oil and gas.

Applications

Application Field Description
Pipeline Systems Ideal for sealing and joining sections of pipeline systems, ensuring a secure, leak-free connection in various medium-pressure systems.
Water Treatment Excellent for use in water treatment facilities, where resistance to corrosion from water and chemicals is essential.
Marine Engineering Titanium’s resistance to saltwater corrosion makes this flange perfect for use in marine applications such as seawater systems and offshore installations.
Chemical Processing Ideal for handling aggressive chemicals, ensuring the flange can withstand the harsh environments typical in chemical processing plants.
Oil and Gas Titanium’s high strength and corrosion resistance make it suitable for use in oil and gas pipeline systems, both onshore and offshore.

Usage & Maintenance

  • Installation: This blank flange plate is designed for use in systems where a simple, pressure-tight seal is needed. Ensure that the surfaces of the flange and mating components are clean and flat before installation to prevent leaks.
  • Maintenance: Titanium flanges are low-maintenance, but it is recommended to inspect the flange regularly for any signs of wear or damage. The corrosion-resistant properties of titanium ensure minimal maintenance in most environments.
  • Environment Suitability: Best suited for systems in highly corrosive environments, such as seawater applications, chemical plants, and high-salinity water systems.

Conclusion

The Blank Flange Plate DIN2501 Gr1 Gr2 Gr5 PN5 Titanium Plate Flange is an excellent choice for those requiring a reliable, high-performance flange solution for medium-pressure pipeline systems. With its superior corrosion resistance, lightweight design, and high strength, this flange plate is perfect for a wide range of industrial applications, including chemical, marine, water treatment, and oil and gas industries. Choose titanium for a durable, cost-effective solution that ensures the longevity and safety of your pipeline system.
