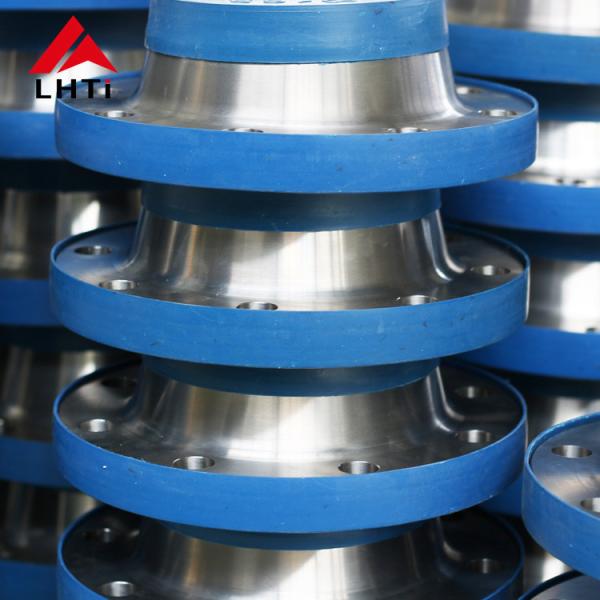

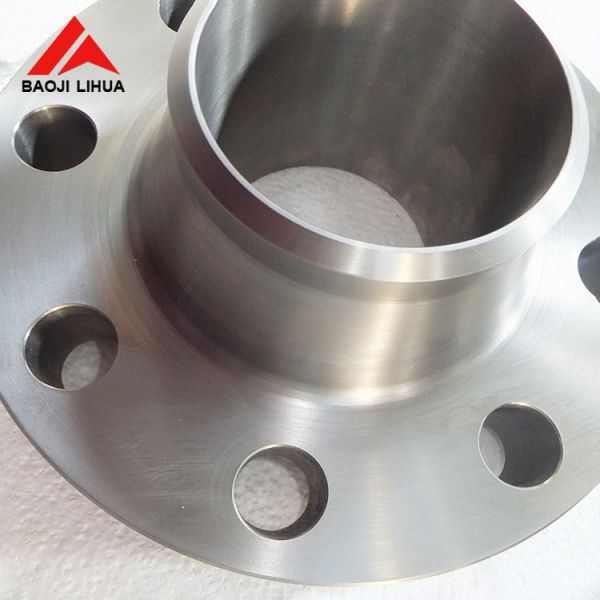

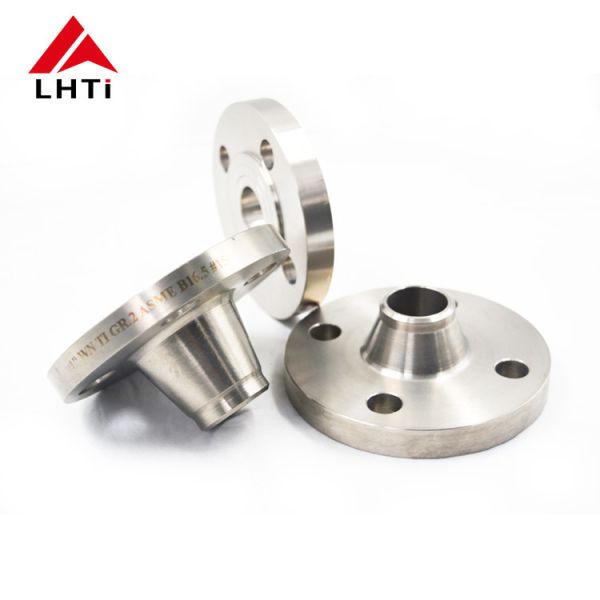

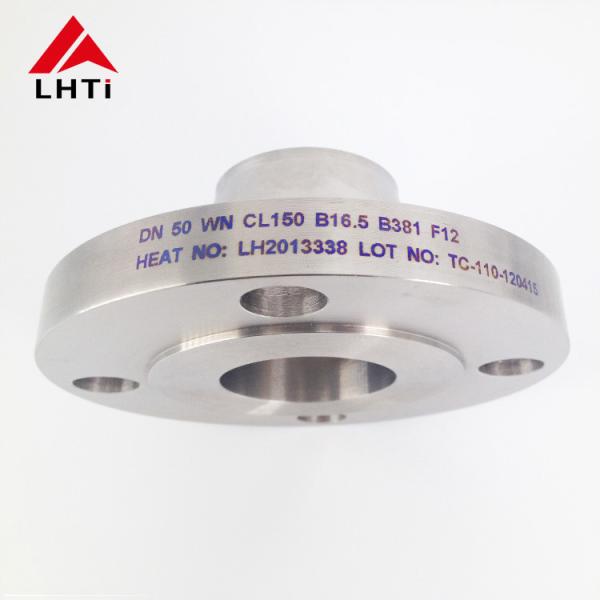

Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Gr2 Gr7 Gr12 Titanium WN Welding Neck Flange For Chemical Industry
Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Product name :
Ansi titanium blind flange
Standard :
ANSI B16.5
Material :
gr2, gr7, gr12
Application :
Chemical industry
Sealing surface :
RF
Size :
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure :
150#-2500#
Surface :
Polished
Technique :
Froged and CNC Machined
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description

Titanium WN Welding Neck Flange For Chemical Industry

​Flange is widely used in water conservancy, electric power, power station, pipe fittings, industry, pressure vessel, etc. Titanium flange is a kind of flange processed by forging process, made of titanium material, which is generally used in machinery and chemical industry.Besides titanium flanges, we can also manufacture nickel flange, zirconium flange etc.

Dimensional tolerances conform to ASME B16.5. Flange bore diameters agree with standard ASME B36.9M Sch-40S wall pipe. Other bore diameters can be supplied on special order. Flat Face Titanium Flanges are supplied with a serrated spiral finish per ASME B16.5 Other gasket surface finishes can be supplied on special order. Titanium flanges are permanently marked by electro-chemical etching in accordance with ASME B16.5.

Physical Properties

Grade Tensile strength(min) Yeild strength(min) Elongation (%)
ksi MPa ksi MPa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 438 15
GR12 70 438 50 345 18

Detailed images:
