ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12
Specifications
Brand Name :
LHTI
Model Number :
LH-32
Certification :
ISO9001
Place of Origin :
Baoji Shaanxi China
MOQ :
5 piece
Price :
US dollar $180/pc-US dollar $300/pc
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal etc
Supply Ability :
500 piece per week
Delivery Time :
3-5 days
Packaging Details :
standard export plywood case
Material :
titanium,nickel
Type :
BL
Standard :
ANSI B16.5
Grade :
Gr2
Application :
oil.chemcial industrial
keyword :
BL titanium flange
Description

ANSI B16.5 GR2 GR7 Gr12 Titanium Blind Flange For Pressure Vessel

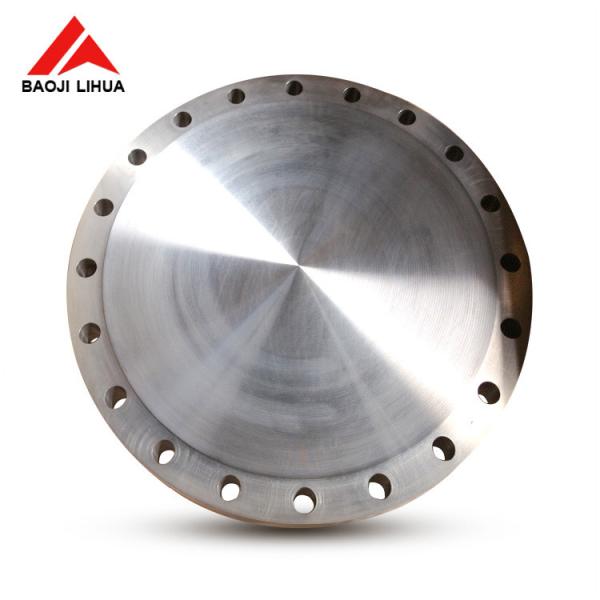

Titanium Blind Flange (Raised Face)

products ASME B 16.5 Ti gr2 titanium SO flange oil & gas industry &oil flange
Material Grade Gr2, (Gr7, GR12)
Certification ISO9001:2008, EN10204.3.1
Standard ANSI B16.5, ASME B16.5, ASME B16.47,
size 1/2"~ 24"
Pressure Class 150LB, 300LB, 600 LB,900LB, 1500LB, 2500LB
Technique Forged and CNC Machined
type WN
Flange surface FF,RF,TG,RJ ,MFM etc

ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12

Class 150 Titanium Blind Flange
Nom.
Pipe
Size		 Flange
Dia.		 Flange
Thick		 Raised
Face Dia.		 No.
of
Holes		 Dia.
of
Bolts		 Dia. Of
Bolt Circle
1/2 3-1/2 7/16 1-3/8 4 1/2 2-3/8
3/4 3-7/8 1/2 1-11/16 4 1/2 2-3/4
1 4-1/4 9/16 2 4 1/2 3-1/8
1-1/4 4-5/8 5/8 2-1/2 4 1/2 3-1/2
1-1/2 5 11/16 2-7/8 4 1/2 3-7/8
2 6 3/4 3-5/8 4 5/8 4-3/4
2-1/2 7 7/8 4-1/8 4 5/8 5-1/2
3 7-1/2 15/16 5 4 5/8 6
3-1/2 8-1/2 15/16 5-1/2 8 5/8 7
4 9 15/16 6-3/16 8 5/8 7-1/2
5 10 15/16 7-5/16 8 3/4 8-1/2
6 11 1 8-1/2 8 3/4 9-1/2
8 13-1/2 1-1/8 10-5/8 8 3/4 11-3/4
10 16 1-3/16 12-3/4 12 7/8 14-1/4
12 19 1-1/4 15 12 7/8 17
14 21 1-3/8 16-1/4 12 1 18-3/4
16 23-1/2 1-7/16 18-1/2 16 1 21-1/4
18 25 1-9/16 21 16 1-1/8 22-3/4
20 27-1/2 1-11/16 23 20 1-1/8 25
24 32 1-7/8 27-1/4 20 1-1/4 29-1/2

All types of titanium flange per ASME B16.5 specification, mainly titanium slip-on flange, titanium blind flange, titanium weld neck flange and titanium lap joint flange. Material is mainly C.P. Titanium.

Other Related Products

---GR2 titanium hex bolts DIN933 and titanium hex nut DIN934

---Pure titanium pipe fitting,titanium elbow,concentric reducer etc

---Titanium seamless / welding tube for chemcial industrial

ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12

ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12

Raw material---Insepection material---Cutting--Heating---Forging--Heat tratment--Machining

Drilling---Marking---Washing---Final test---Package---Delivery

Package & Delivery

ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12

ANSI B16.5 Titanium Blind Flange Nickel Flange For Pressure Vessel GR2 GR7 GR12

All package use standard export plywood case or Carton case.

More information,please contact us freely
