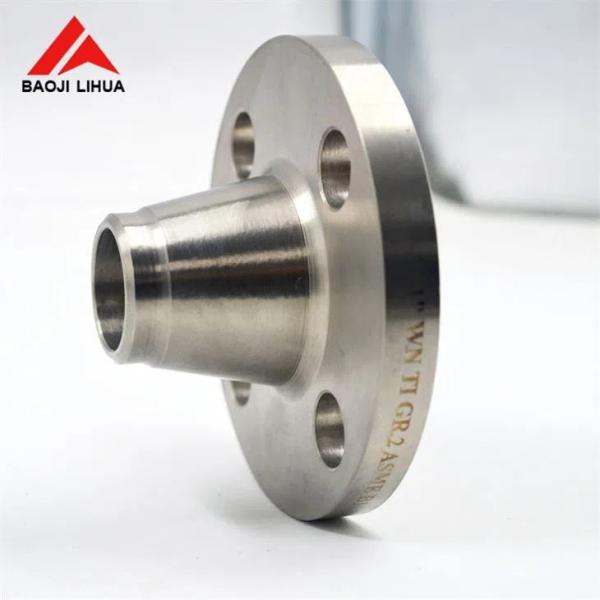

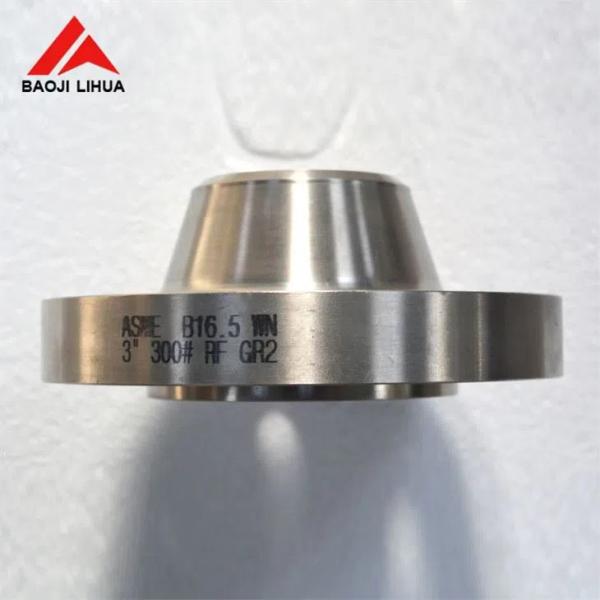

Titanium Weld Neck Flange Class 300 For Chemical Industry
Titanium Weld Neck Flange Class 300 For Chemical Industry
Titanium Weld Neck Flange Class 300 For Chemical Industry
Titanium Weld Neck Flange Class 300 For Chemical Industry
Titanium Weld Neck Flange Class 300 For Chemical Industry
Titanium Weld Neck Flange Class 300 For Chemical Industry
Titanium Weld Neck Flange Class 300 For Chemical Industry
Titanium Weld Neck Flange Class 300 For Chemical Industry
Specifications
MOQ :
1
Price :
$25-$85
Brand Name :
LHTi
Model Number :
WN
Certification :
ISO9001
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000 pcs per month
Delivery Time :
10-15 days
Packaging Details :
Standard exporting packing: protecting foam and EPE inside and plywood case outside.
Product Name :
Titanium Weld Neck Flange
Standard :
ANSI / ASME B16.5
Material :
Gr1 Gr2 Gr5 Gr7 Gr12
Application :
Chemical industry
Unit Price :
$25usd/pc-$85usd/pc
Sealing Surface :
RF, FF, TG, RJ etc.
Size :
NPS 1/2 - NPS 3
Pressure :
Class 300
Surface :
Polished
Technique :
Forged and CNC Machined
Inspection :
UT% PT%
Certificate :
ISO9001, TUV etc.
Description

Titanium Weld Neck Flange Class 300 For Chemical Industry

Name Titanium flange,Titanium alloy flange
Material Grade Gr1,Gr2,Gr5,Gr7,Gr12
Certificate EN10204/3.1
Standard EN1092-1
Size DN10-3600
Pressure PN0.6-PN100
Technique Forged and CNC Machined
Type WNRF,SORF,BLIND,SW,PL
Flange surface FF,RF,TG,RJ etc.
Application

Boiler pressure vessels,

chemical,petroleum,shipbuilding,pharmaceutical,metallurgy,machinery
Advantage

1,Long servise lif

2,corrosion-resistant

3,High yeiled strength and tensilestrength

Available Flange types

a.Slip On Flange
b.Welding Neck Flange
c.Threaded Flange(Screwed Flange)
d.Plain Flange
e.Blind Flange
f.Lap Joint Flange
g.Wocket Welding Flange
h. welded flange
i. titanium large-diameter flange

Specification

Titanium Weld Neck Flange Class 300
Nom. Pipe Size Flange Dia. Flange Thick. Hub Dia. At Base Raised Face Dia. Hub Dia. At Weld Point No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub
1/2 3-3/4 9/16 1-1/2 1-3/8 0.84 4 2-5/8 1/2 0.62 2-1/16
3/4 4-5/8 5/8 1-7/8 1-11/16 1.05 4 3-1/4 5/8 0.82 2-1/4
1 4-7/8 11/16 2-1/8 2 1.32 4 3-1/2 5/8 1.05 2-7/16
1-1/4 5-1/4 3/4 2-1/2 2-1/2 1.66 4 3-7/8 5/8 1.38 2-9/16
1-1/2 6-1/8 13/16 2-3/4 2-7/8 1.90 4 4-1/2 3/4 1.61 2-11/16
2 6-1/2 7/8 3-5/16 3-5/8 2.38 8 5 5/8 2.07 2-3/4
2-1/2 7-1/2 1 3-15/16 4-1/8 2.88 8 5-7/8 3/4 2.47 3
3 8-1/4 1-1/8 4-5/8 5 3.50 8 6-5/8 3/4 3.07 3-1/8

Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

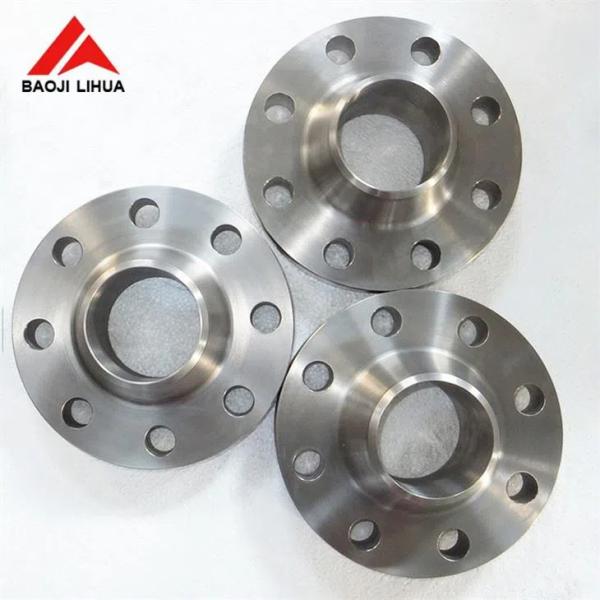

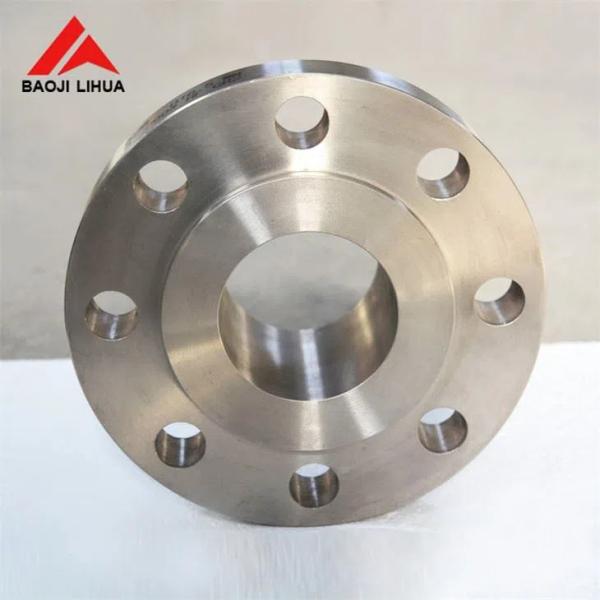

Detailed Images

Titanium Weld Neck Flange Class 300 For Chemical IndustryTitanium Weld Neck Flange Class 300 For Chemical IndustryTitanium Weld Neck Flange Class 300 For Chemical Industry

Application Industries of Titanium Flange

  • Off-Shore Oil Drilling Companies

  • Power Generation

  • Petrochemicals

  • Gas Processing

  • Specialty Chemicals

  • Pharmaceuticals

  • Pharmaceutical Equipment

  • Chemical Equipment

  • Sea Water Equipment

  • Heat Exchangers

  • Condensers

  • Pulp and Paper Industry

Quality inspections

Titanium Weld Neck Flange Class 300 For Chemical IndustryTitanium Weld Neck Flange Class 300 For Chemical Industry

Packaging and shipping

Each flange is wrapped with pearl cotton to prevent collision and scratch of the flange surface. The gap between the flange and the flange is filled with sponge to ensure that the flange is not deformed when the customer receives the goods. Outside is fumigation-free plywood case. Choose the best express, air or sea based on the weight of the goods. Everything is to better serve customers as the goal.Customer also can arrange shipment theirselves.

Titanium Weld Neck Flange Class 300 For Chemical IndustryTitanium Weld Neck Flange Class 300 For Chemical Industry

Titanium Weld Neck Flange Class 300 For Chemical IndustryTitanium Weld Neck Flange Class 300 For Chemical Industry

Titanium Weld Neck Flange Class 300 For Chemical Industry
