Specifications
Certification :
CE ISO
Brand Name :
Xrido
Model Number :
Customizable
MOQ :
1
Delivery Time :
5-30 word days
place of origin :
Henan, China
brand name :
Xrido
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, motor
warranty :
1 Year
power (kw) :
44
weight (kg) :
5000
key selling points :
Automatic, Multifunctional, High Safety Level, Competitive Price, High Productivity, Energy saving
Capacity :
500-700kg/day, 300-500kg/day, 200-300kg/day, 700-900kg/day, 900-1100kg/day
Name :
Hydraulic gantry shears machine
Application :
Scrap metal cutting
Advantage :
High Efficiency Low Energy Consumption
Input Materials :
waste metal
Voltage :
220V/380V/415V/440V/customized
Color :
Customer Requirement
Local Service Location :
Turkey
Material :
High Strength Steel
Technology :
Advance Technology
Description

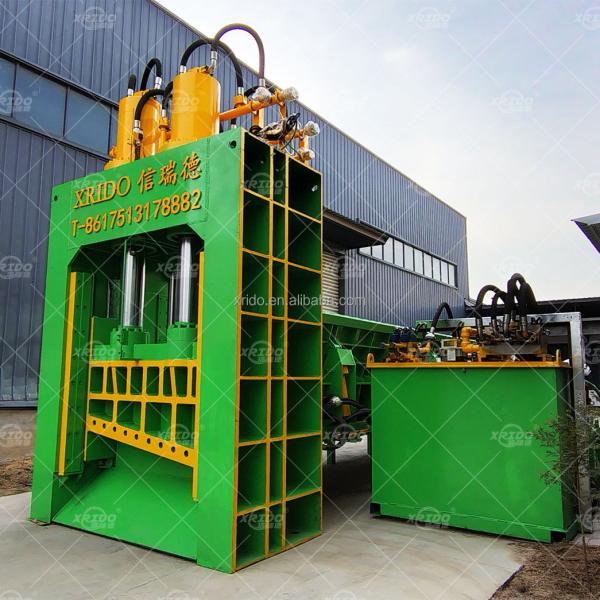

5-7T/H Heavy Duty Gantry Shear Scrap Metal Iron Sheet Hydraulic Shearing Machine
Product characteristics
Gantry shearing machine is mainly used to cut large pieces of light metal structures made of scrap steel billets, square steel, I-beams, channel steel, steel pipes, and steel materials into scraps suitable for furnace materials. Ideal equipment used by manufacturers.
5T/H-7T/H Hydraulic Shearing Machine Scrap Shearing Machine Multifunctional 5T/H-7T/H Hydraulic Shearing Machine Scrap Shearing Machine Multifunctional
Features:
1.Using compression and compression on both sides of the scrap and sub-type feeding mode ,with enlarge the design of press boxes,with good adaptability of scrap steel,high density after shearing.
2.Size of press box is big,suitable for mechanical feeding,suitable for loose thin steel and steel structure,especially for steel and other profiles shear.
3.Using screen control panel,automated integrated control,smooth and reliable operation.Optional wireless remote control device,single control production line supporting equipment.
4.Using reliable high-flow logic valve control independent filtering and cooling system,can ensure to operation efficiently and reliable.Constant power variable and different fast technology integtated use,while ensuring
the production and energy saving at around 25%,tons of steel processing energy consumption is lower than the industry atandard requirements.
5T/H-7T/H Hydraulic Shearing Machine Scrap Shearing Machine Multifunctional
5T/H-7T/H Hydraulic Shearing Machine Scrap Shearing Machine Multifunctional
Main Application
Hydraulic gantry shears are mainly used for:
Cut and crush various scrap plates, bars, ferroalloy charges, special plates, ship plates from ship recycling yards, automobiles, metal briquettes, iron filings and other scrap steel at one time, thereby replacing manual dismantling in order to reduce production costs and achieve high efficiency , convenient effect. For I-beams, tracks, light steel materials, steel bars, steel plates, nickel plates, steel plates, round steel, steel pipes, scrap copper, scrap steel, scrap iron, light metal structural parts, stainless steel, metal briquettes, automobile bodies, aluminum alloys, Cold shearing of various metal materials such as copper, iron filings, steel wire, and metal briquettes.
5T/H-7T/H Hydraulic Shearing Machine Scrap Shearing Machine Multifunctional5T/H-7T/H Hydraulic Shearing Machine Scrap Shearing Machine Multifunctional
Product Paramenters
Model Max Shearing Force Chamber Dimensions (mm) Blade Length (mm) Capacity (t/h) Shearing Frequency (Theoretical) Main Motor Door Mechanism
XSM-630H 630 7000×1600×650 1600 10-15 3 times/min 3×55kW Cylinder-driven door with material and cover
XSM-630W 630 8000×1800×900 1800 10-15 3 times/min 5×45kW Chain-driven with door cover
XSM-630W 630 8000×1800×900 1800 10-15 3 times/min 5×45kW Chain-driven without door cover
XSM-630W 630 8000×1800×1000 1800 10-15 3 times/min 5×45kW Cylinder-driven door with material and cover
XSM-630W 630 8000×1800×1000 1800 10-15 3 times/min 5×45kW Cylinder-driven door with material (no cover)

*This is the basic model of Hydraulic Gantry Shears Machine. Our factory manufactures customized machines according to the different requirements of different customers.
