Specifications
Brand Name :
Xrido
Model Number :
Customizable
Certification :
CE ISO
MOQ :
1
Delivery Time :
5-30 word days
place of origin :
Henan
brand name :
Xrido
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Bearing, motor, Gear
warranty :
1 Year
max. cutting force (ton) :
200-800
machine type :
Gantry Shears
power (kw) :
76
weight (kg) :
32000
material / metal processed :
Brass / Copper, Alloy, Carbon Steel, Aluminum, Stainless Steel
key selling points :
High Productivity
Product name :
Hydraulic Gantry Shear Cutting Machine
Application :
recycling plant, scrap steel plants, smelting and casting factory
Number of cuts :
9-16 times per minute
Advantage :
Easy Operation High Efficiency
Shear Force :
315T/400T/500T/630T/800T/1000T/1250T
Motor Power :
22kw/44-300KW
Function :
Hydraulic Recycle Scrap Metal Shear
Production Capacity :
3-30 T/H
Driven Type :
Hydraulic Pressure
Description
Products Description

This industrial Metal Gantry Shear Machine specializes in cutting diverse scrap metals like structural steel components, pressed metal billets, and various ferrous/non-ferrous materials (steel plates, pipes, copper scraps) into shorter, recyclable segments using hydraulic shearing technology.‌

Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine
Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine




Product Parameters
Model Shearing force(Ton) Pressure-Plate-Force(Ton) Length of knife edge(mm) Open Month(mm) Shear frequency(Times/minute) Shear specification(mm)
XRD-63 63Ton 16Ton 600mm 280mm 9-16 3030,4040
XRD-100 100Ton 16Ton 800mm 280mm 9-16 4040,4545
XRD-120 120Ton 16Ton 1000mm 280mm 9-16 4545,5555
XRD-160 160Ton 16Ton 1200mm 320mm 9-16 5555,6565
XRD-200 200Ton 16Ton 1400mm 280mm 9-16 6565,7070
XRD-250 250Ton 16Ton 1600mm 480mm 9-16 7070,8080
XRD-315 315Ton 42Ton 1600mm 280mm 8-16 8080,9090
XRD-400 400Ton 42Ton 1800mm 280mm 9-16 9090,100100
XRD-500 500Ton 42Ton 1800mm 280mm 9-16 100*100

Product Details

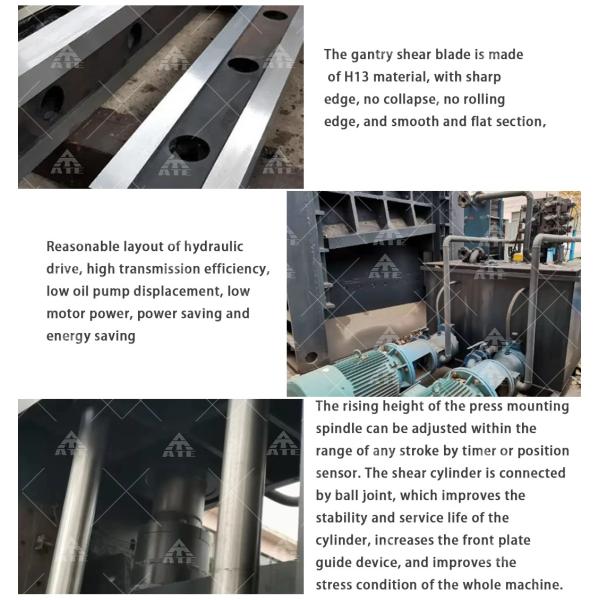

1,Through automatic feeding box,after the material is grabbed to the upper material box, the waste is automatically sent to the cutting edge by the conveyor belt, and the feeding speed can be adjusted by the speed regulating motor.
2,The two sides of the material box are equipped with side extrusion oil cylinders. If the large-scale waste materials, such as scrapped cars, cannot pass the cutting edge of the gantry shear, they can be squeezed and reduced by the side extrusion oil cylinder, and then sent to the cutting edge through the conveyor to cut off.
Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine
Features:
1.Using compression and compression on both sides of the scrap and sub-type feeding mode ,with enlarge the design of press boxes,with good adaptability of scrap steel,high density after shearing.
2.Size of press box is big,suitable for mechanical feeding,suitable for loose thin steel and steel structure,especially for steel and other profiles shear.
3.Using screen control panel,automated integrated control,smooth and reliable operation.Optional wireless remote control device,single control production line supporting equipment.
4.Using reliable high-flow logic valve control independent filtering and cooling system,can ensure to operation efficiently and reliable.Constant power variable and different fast technology integtated use,while ensuring
the production and energy saving at around 25%,tons of steel processing energy consumption is lower than the industry atandard requirements.
Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine

Product Application
Thin steel material, steel bar, steel plate, nickel plate, steel plate, round steel, steel pipe, scrap copper, scrap iron, light metal structural parts,stainless steel, metal pressing block, automobile body, aluminum alloy, copper, iron filings, steel wire, metal pressing block and other scrap metal cold cutting short

Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine
Hydraulic Cylinder Metal Gantry Shear Cutting Machine for Aluminum Carbon Steel Stainless Steel Alloy Motor Engine
