1250mm 380v Metal Roofing Sheet Making Machine Plc Automatic
1250mm 380v Metal Roofing Sheet Making Machine Plc Automatic
Specifications
Brand Name :
DLY
Model Number :
double layer machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
50 days
Packaging Details :
naked or wooden
Product name :
Metal Roofing Machine
Condition :
New
After-sales service provided :
Video technical support,Field maintenance and repair service
Tile type :
roll forming machine
Use :
Roof,Wall
Weight :
5T
Dimension(l*w*h) :
6500*1300*1100
Color :
as customer's requir
Description

1250mm 380V Roofing Sheet Machine With PLC Automatic

1. Brief introduction of Roof Tile Making Machine

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.


2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3.Fully Automatic Control System with PLC.

4.Easy operation: Key in the length and quantity on the control panel.

5.One year warranty.

6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

2. Roof Tile Making Machine specifications

Main power:
11KW Siemens motor made in China
Machine Structure:

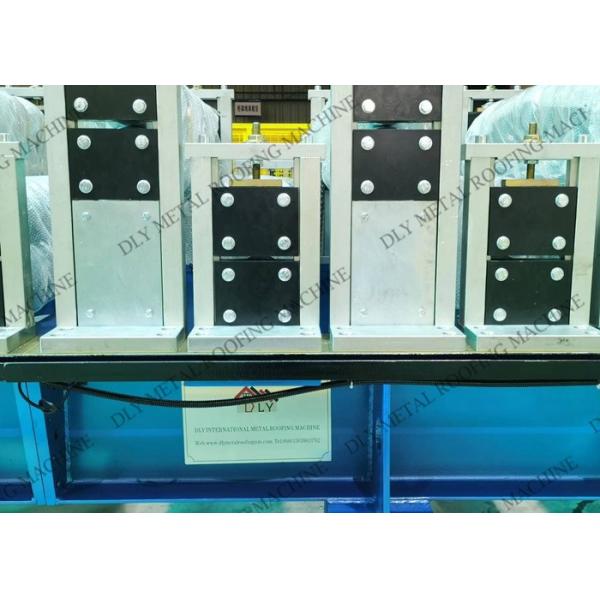

Separate stands tower,chromed on the surface of the stands ( see the picture)
Feeding form:
Side hand wheel adjustment manually
Roll forming stations:
20 stations for upper layer
Way of drive:
single row 1.0 inch chain drive
Diameter of shaft:
￠75mm
Material of shaft:
40Cr refining (HB220-260)
Cutting system:
hydraulic flying shear( non-stop cutting)controlled by the servo motor
Roll forming stations:
20 stations for upper layer
Way of drive:
single row 1.0 inch chain drive
Diameter of shaft:
￠75mm
Material of shaft:
40Cr refining (HB220-260)
Cutting system:
hydraulic flying shear( non-stop cutting)controlled by the servo motor
3. The advantage of Roof Tile Making Machine

1.Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2.Good service: we provide the technical support for whole life of our machines.

3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4.Easy operation:All machine cotrolling by PLC computer controlling systerm.

5.Elegant apperance:Protect the machine from rust and the painted colour can be customized

6.Reasonable price:We offer the best price in our industry.

4. Machine Detals and Container Load of Roof Tile Making Machine

Our roll forming machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!

1250mm 380v Metal Roofing Sheet Making Machine Plc Automatic1250mm 380v Metal Roofing Sheet Making Machine Plc Automatic1250mm 380v Metal Roofing Sheet Making Machine Plc Automatic

1250mm 380v Metal Roofing Sheet Making Machine Plc Automatic
