20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former
20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former
20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former
20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former
Specifications
Brand Name :
DLY
Model Number :
tile machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
50 days
Packaging Details :
naked or wooden
Product name :
Roof Tile Making Machine
Dimension(l*w*h) :
4.5 m*1.5 m*1.6 m
Cutting blade material :
Cr12Mov with quenched treatment.
Control system :
totally automatic PLC control system
Tile type :
Roof Sheet
Brand of PLC :
Mitsubishi / delta / Siemens
Condition :
New
Weight :
4T
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Color :
blue/ According to the clients need
Description

20 years 20 m speed PPGI Roof Tile Making Machine With CE

1. Processing flow diagram of machine

  • Infeed has hardened roller bearing guides that ensures the material guides perfectly into the roll stations.
  • Front Rotary Cut allows the customer to cut back on wasted material.
  • 14-30 Tool Stations help form the Profile Panel.
  • The encoder features a wheel that sits on top of the panel passing through the machine. The tension spring allows constant contact of the encoder with the coil for consistent and accurate lengths.
  • The hydraulic Post Shear is guided by 4 bearing shafts for burr free cutting of the panel. The post shear enables cuts of 100 mm long panels up to 18.3 m.

2. Roof Tile Making Machine specifications

Name
roof tile making machine
material PPGI GI
feeding material thciness 0.5mm - 0.6mm
Applicable Industries steel construction
Tile Type
metal roofing
Use
roof wall and fence
Solid Keyed Shafts
85mm
Voltage
380v / 480v / 220v
Bearing Shafts
4 Bearing Shafts
Warranty
14 months
Cutter material
GCr12 chromed and quenched for good hardness and using
Warranty of core components
14 months
Color
blue and yellow or custom request
After Warranty Service:
Video technical support, Online support, Spare parts
Hydraulic power 5.0kw
Roller material 45# steel with chroming
language English / Chinese / according to customer's request

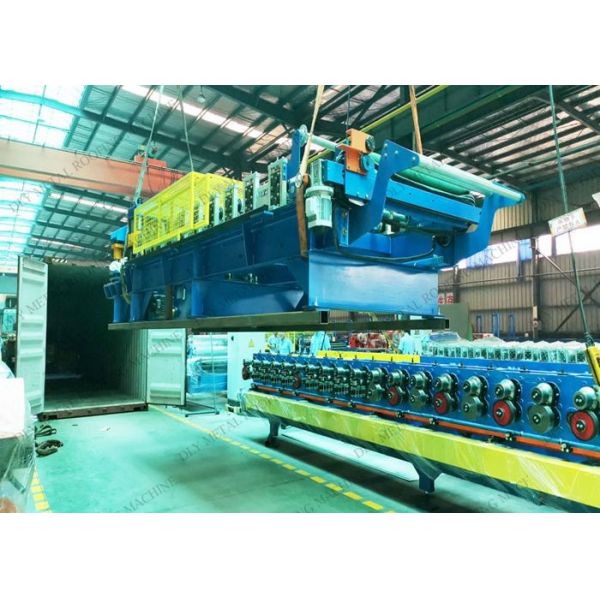

3. Component of roof tile making machine line

1 decoiler 1 set
2 pre-cutting 1 set
3 roll forming 1 set
4 cutting 1 set
5 receive table 1 set
6 hydraulic system 1 set
7 control system 1 set

20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former

5. Options

  • CNC cut to length - We offer also a CNC Cut-to-length on top of rollformer with run out supports.
  • rollout safety - Rollout safety cages in lieu of quick change side cages.
  • stacker - Stack the finished parts on an stacker. Available in different lenghts with a capacity of up to 3500 kg

20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former

20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former

20M Roofing Sheet Roll Forming Machine Cr12 CE Roof Panel Roll Former
