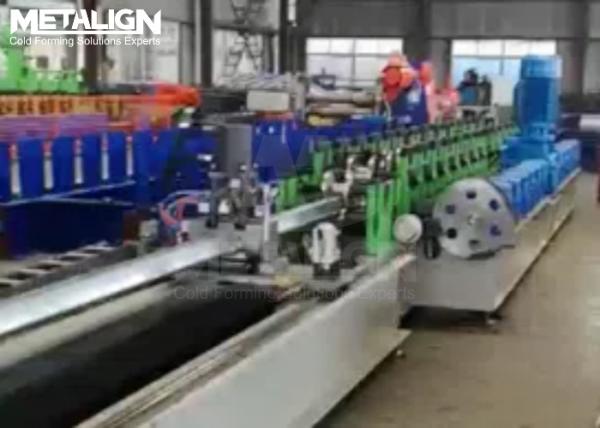

Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter
Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter
Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter
Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter
Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter
Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter
Specifications
Brand Name :
METALIGN
Model Number :
SSU
Certification :
CE,ISO,etc
Place of Origin :
CHINA
MOQ :
1 set
Price :
Based on customization.
Payment Terms :
L/C,T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Industrial plastic film wrapping, secured with steel wire.
Product name :
High Precision Roll Former For Galvanized Steel Silo Wall Support Profiles
Key words :
Silo Column Roll Former/Chain Drive Structure/Heavy Duty Column
Profile :
Grain Silo Roof Panels
Application :
Silo Wall Support / Grain Storage Structure / Agricultural Steel Building / Steel Column Framing
Material type :
Galvanized Steel
Material thickness :
3-5mm
Production speed :
15m/min
Main motor power :
30Kw
Forming stations :
16
Driving system :
Chain
Frame structure :
Cast iron
Shaft diameter :
80mm
Machine condition :
Brand new
Shaft material :
#45 steel quenched 55-60℃
Roller material :
High grade #45 steel , surface with hard chrome
Display language :
English/Spanish/Russian/French,etc, customizable
Control technique :
PLC+Touch Screen
Delivery time :
30 days
Description

Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter

1. Production Line Overview

  • Designed for silo manufacturers and agricultural construction suppliers, this line delivers precision forming of heavy-gauge galvanized steel profiles with pre-punched holes for efficient onsite assembly.

2. Profile Description

  • The profile is a heavy-duty galvanized steel column, 1.2–4.2mm thick, designed for silo wall framing. It features pre-punched installation holes and a robust shape for structural strength in agricultural and industrial buildings.

3. Production Process

  • Hydraulic Decoiler → Guiding System → Roll Former → Flying Punching → Straightening → Hydraulic Cutter → Out Table
  • The forming process integrates continuous profiling with tracking punching, allowing the forming machine to run non-stop while the punching head synchronizes its movement with the line. This improves productivity, especially for profiles requiring multiple installation holes.

4. Technical Parameters

Machine Analysis
Hydraulic Decoiler Feeds 1.2–4.2mm galvanized steel coils into the line
3T capacity suitable for heavy gauge material
Guiding System Ensures coil is centered before entering the roll former
Roll Former 16 stations ensure forming stability for thick steel
Chain-driven, low cost, suitable for mid-speed forming
Flying Punching System Punch head moves with profile for continuous forming
Pre-punching improves onsite assembly efficiency
Punching during forming reduces downtime
Straightening Unit Corrects profile distortion post-forming
Hydraulic Cutter Cuts profiles to length after forming and punching
Stop-to-cut system ensures cutting precision


5. Key Focus

  • Tracking punching ensures continuous operation with high punching accuracy.
  • Supports thick material forming up to 4.2mm galvanized steel.
  • Suitable for producing high-strength structural silo components.
  • Chain-driven 16-stand roll former guarantees stable profile shape.
  • Hydraulic cutting ensures clean, burr-free ends after forming.

6. Production Line Components

Machine Name Quantity
Hydraulic Decoiler 1 set
Guiding System 1 set
Roll Former 1 set
Tracking Punching System 1 set
Straightening Unit 1 set
Hydraulic Cutter 1 set
PLC Cabinet 1 set
Hydraulic Station 2 sets
Out Table 2 sets


7. Customization Options

  • We offer tailored solutions for silo column profiles, including adjustable punching positions, variable forming station numbers based on profile size, optional gear box drive for higher torque, servo feeding for punching, and automatic stacking systems for improved packaging efficiency.
