High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Specifications
Brand Name :
METALIGN
Model Number :
GT+RC
Certification :
CE,ISO,etc
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD1,000-700,000. Based on customization.
Payment Terms :
L/C,T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Industrial plastic film wrapping, secured with steel wire.
Product name :
Dual Lane Chain Driven Roll Forming Machine For Metal Roof Gutter And Ridge Cap Production
Key words :
metal roof ridge cap roll forming/steel gutter profile roll forming
Profile :
Roof Ridge Cap+Gutter
Application :
Roof Drainage Systems / Rainwater Management
Material type :
PPGI/PPGL/GI/GL Steel Coils
Material thickness :
0.3-0.8mm
Forming speed :
15-20m/min
Main motor power :
5.5Kw
Forming stations :
17
Driving system :
Chain
Frame structure :
Wall panel
Shaft diameter :
70mm
Machine condition :
Brand new
Shaft material :
#45 steel quenched 55-60℃
Roller material :
High grade #45 steel , surface with hard chrome
Display language :
English/Spanish/Russian/French,etc, customizable
Control technique :
PLC+Touch Screen
Delivery time :
30 days
Description

High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles

1. Overview


1.1 Production Line


This roll forming production line targets metal roofing manufacturers producing gutters and ridge caps. It offers cost-effective, dual-profile capability with chain-driven stability and safety features. Ideal for mid-sized operations seeking reliable, flexible roofing accessory production with enhanced efficiency and maintenance ease.


1.2 Profile
The profiles are cold-rolled steel, typically 0.5 to 1.0 mm thick, shaped into gutter and ridge cap cross-sections. Featuring durable corrosion-resistant coatings, precise dimensions, and smooth edges, these profiles ensure effective roof water drainage and sealing, suitable for residential and commercial metal roofing systems.
Material: Galvanized Steel / PPGI / Aluminum Thickness: 0.3-0.8mm
Yield strength: 200 - 350 Mpa Tensil stress: 200 -350 Mpa
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles


1.3 Production Process

Flow Chart:

Hydraulic Decoiler → Entry Guide → Roll Former → Hydraulic Cutter → Run-out Table
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles

Process:

The double-lane roll former uses chain-driven systems for precise, stable forming of gutters and ridge caps. Chain covers enhance safety and reduce maintenance. Hydraulic cutters ensure clean, accurate profile lengths. This setup supports simultaneous multi-profile production, increasing efficiency.


1.4 Key Focus

Dual-lane design maximizes production efficiency for gutter and ridge cap profiles.

Chain-driven roll former offers reliable, consistent forming with reduced mechanical wear.

Safety chain covers protect operators and extend machine lifespan.

Hydraulic cutter delivers precise, burr-free cuts for superior product quality.

Cost-effective solution balancing performance and investment for roofing accessory manufacturers.


2. Technical Parameters

2.1 Decoiler
Structure Double-support High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Working Form Manual, motorized, or hydraulic
Loading Capacity 5T/7T/10T, customizable
Coil Width 1250mm, customizable
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Model DC-MU1


2.2 Optional Upgrade: Decoiler
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Motorized Decoiler Stand structure decoiler, motorized or hydraulic Hydraulic decoiler with loading car


2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller Adujust the coil feeding width High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Pre-cut Broaching Shear Cut the steel coil before roll forming
Digital Display See the feeding width directly


2.4 Roll Forming Machine
Working Speed Around 20 m/min High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Structure Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System Chain system. Optional: Gearbox
No. of Forming Stations 18 stands
Shaft Diameter 70mm solid shaft
Motor Power 5.5 Kw High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Roller Material

45# steel polished and chromed HRC58-62°
Shaft Material High grade 45# steel polished(CNC lathe)
Steel Coil Material PPGI or GI
Steel Coil Thickness 0.25-0.8mm


2.5 Optional Upgrade: Cover
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Mounted On The Inside: No Cover Required Solid Cover For Chain Mesh Safety Cover


2.6 Cutter
Common Power Type Hydraulic. Optional: motor type. High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Hydraulic Power

4-5.5Kw, customizable
Blade Material

Cr12 Mov
Hardness

With quenched treatment HRC 58 – 62°


2.7 Product Collection
Solution 1

Run-out table

 Solution 2 Auto stacker
Power Type

Non-powered, mainly manual handling

 Power Type Motorized, 3Kw
Dimension Length 4m, customizable Dimension Length 4m-6m, customizable
High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles


2.8 PLC Control Cabinet
PLC Brand Delta, customizable Power Supply 380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand Omron, customizable Language Chinese + English, Spanish, French, Russian, etc
Touch Screen MCGS, customizable Operation type Manual /auto two-type switch
Hanging Arm Type Saving Space Standing Type greater component integration and flexible positioning

High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles

Hanging-Arm Control Box

High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles

Standing Control Box


2.9 Hydraulic Power Unit (HPU)

Motor Power

 5.5Kw High Efficiency Roll Former With Hydraulic Cutter And Safety Chain Cover For Roofing Profiles
Oil Required

N32 or N46 hydraulic oil is available

Design

The hydraulic station has a fan cooling system
Optional

It can be installed on or inside the roll former to save space



2.10 Analysis
5T Manual Decoiler Supports up to 5 tons coil weight, low investment cost
Manual control allows flexible coil size adjustment
Guiding Ensures precise steel coil alignment before forming
Minimizes material deviation, improves product quality
Roll Former Double lane design for simultaneous gutter and ridge cap
Chain drive provides stable, consistent forming power
Chain cover protects operator and machine from damage
Hydraulic Cutter Powerful hydraulic system enables clean, precise cutting
Adjustable cut length accommodates different profile sizes

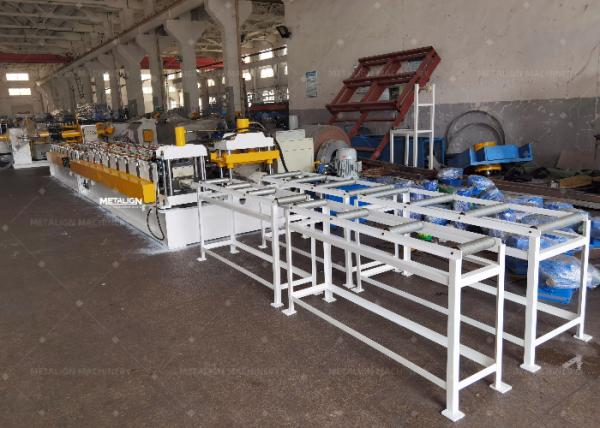

Out Table Provides stable product support and smooth discharge
Designed for easy manual or automated product handling


3. Production Line Components

Component Quantity
Manual Decoiler 1 set
Roll Former 1 set
Hydraulic Cutter 1 set
Out Table 2 sets
PLC Cabinet 1 set
Hydraulic Station 1 set


4. Customization Options

This roll forming line can be customized for different gutter and ridge cap sizes, thicknesses from 0.3mm to 0.8mm, and coating types. Optional features include automated decoiler upgrades, variable hydraulic cutter lengths, and enhanced chain guard designs. We tailor configurations to meet specific profile dimensions and production speed requirements.
