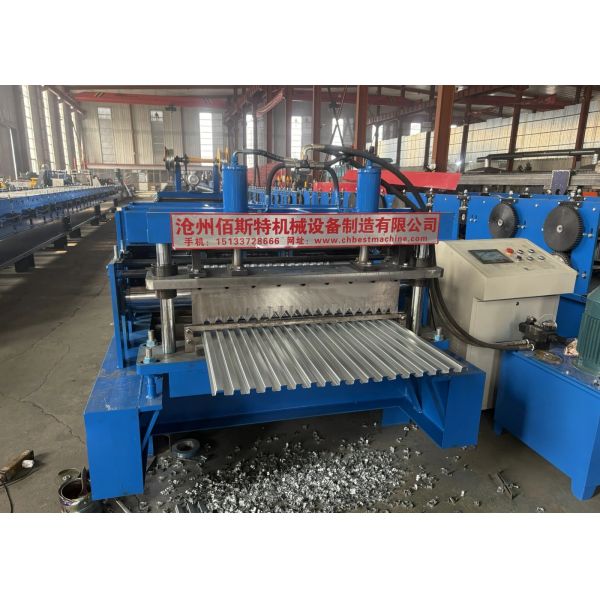

High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Specifications
Brand Name :
METALIGN
Model Number :
GWP
Certification :
CE,ISO,etc
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD1,000-700,000. Based on customization.
Payment Terms :
L/C,T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Industrial plastic film wrapping, secured with steel wire.
Product name :
Roofing Roll Forming Machine
Key words :
Great Wall Panel Machine / Form Rolling Machine
Profile :
Long Grid
Application :
Residential Roof Drainage / Commercial Building Gutters
Material type :
PPGI/PPGL/GI/GL Steel Coils
Material thickness :
1.5mm
Forming speed :
15-20m/min
Main motor power :
30Kw
Forming stations :
45
Driving system :
Chain
Frame structure :
Wall panel
Shaft diameter :
80mm
Shaft material :
#45 steel quenched 55-60℃
Roller material :
High grade #45 steel , surface with hard chrome
Display language :
English/Spanish/Russian/French,etc, customizable
Control technique :
PLC+Touch Screen
Description

High Speed Galvanized Steel Long Grid Great Wall Panel Roofing Roll Forming Machine

1. Overview

The Long Grid Wall Panel Roll Forming Machine is designed for producing metal wall panels with long, continuous grid patterns, widely used in architectural decoration and industrial buildings. This high-precision line integrates decoiling, leveling, forming, cutting, and automatic control to ensure stable production and consistent profile quality. With durable rollers, chain or gearbox drive, and PLC touch screen operation, it supports quick profile changes and efficient mass production. Ideal for steel structure cladding or decorative wall systems, this machine delivers excellent surface finish, tight tolerances, and long-term performance.

2. Technical Parameters

2.1 Decoiler
Structure Double-support High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Working Form Manual, motorized, or hydraulic
Loading Capacity 5T/7T/10T, customizable
Coil Width 1250mm, customizable
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Model DC-MU1

2.2 Optional Upgrade: Decoiler
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Motorized Decoiler Stand structure decoiler, motorized or hydraulic Hydraulic decoiler with loading car

2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller Adujust the coil feeding width High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Pre-cut Broaching Shear Cut the steel coil before roll forming
Digital Display See the feeding width directly

2.4 Roll Forming Machine
Working Speed Around 20 m/min High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Structure Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System Chain system. Optional: Gearbox
No. of Forming Stations 18 stands
Shaft Diameter 70mm solid shaft
Motor Power 5.5 Kw High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Roller Material

45# steel polished and chromed HRC58-62°
Shaft Material High grade 45# steel polished(CNC lathe)
Steel Coil Material PPGI or GI
Steel Coil Thickness 0.25-0.8mm

2.5 Optional Upgrade: Cover
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Mounted On The Inside: No Cover Required Solid Cover For Chain Mesh Safety Cover

2.6 Cutter
Common Power Type Hydraulic. Optional: motor type. High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Hydraulic Power

4-5.5Kw, customizable
Blade Material

Cr12 Mov
Hardness

With quenched treatment HRC 58 – 62°

2.7 Product Collection
Solution 1

Run-out table

 Solution 2 Auto stacker
Power Type

Non-powered, mainly manual handling

 Power Type Motorized, 3Kw
Dimension Length 4m, customizable Dimension Length 4m-6m, customizable
High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel

2.8 PLC Control Cabinet
PLC Brand Delta, customizable Power Supply 380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand Omron, customizable Language Chinese + English, Spanish, French, Russian, etc
Touch Screen MCGS, customizable Operation type Manual /auto two-type switch
Hanging Arm Type Saving Space Standing Type greater component integration and flexible positioning

High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel

Hanging-Arm Control Box

High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel

Standing Control Box

2.9 Hydraulic Power Unit (HPU)

Motor Power

 5.5Kw High Speed Galvanized Steel Metal Roofing Machine For Long Grid Great Wall Panel
Oil Required

N32 or N46 hydraulic oil is available

Design

The hydraulic station has a fan cooling system
Optional

It can be installed on or inside the roll former to save space

2.10 Analysis
Decoiler Unwinds metal coil, supports large rolls, ensures smooth feed
Guide Aligns material for precise forming, reduces waste
Roll forming machine Chain-driven, wall panel structure, forms multi-arc K-style gutters
Hydraulic cutter Accurate length cutting, stable hydraulic system, reduces manual work
Out table Collects finished gutters, supports stacking, minimizes damage

3. Production Line Components

Component Quantity
Hydraulic Decoiler 1 set
Roll Former 1 set
Hydraulic Cutter 1 set
Out Table 2 sets
PLC Cabinet 1 set
Hydraulic Station 1 set

4. Customization Options

This Great Wall line can be customized with adjustable roll forming stations for varied arc depths, hydraulic cutter lengths, and material thickness. Optional features include PLC-controlled speed adjustment, chain drive reinforcement, and compatibility with aluminum or galvanized steel. Customers can tailor output to match specific roof profiles or design requirements.
