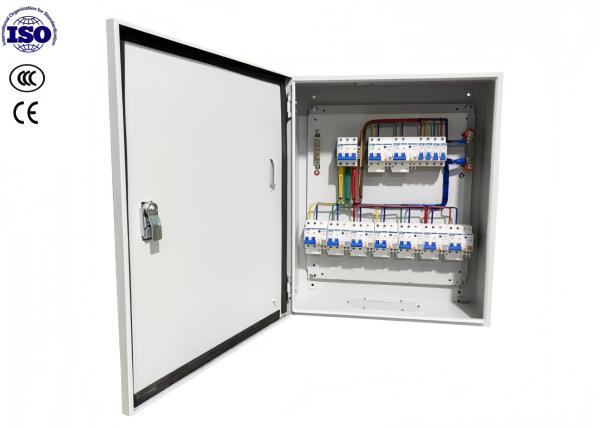

Outdoor Construction Site Circuit Control Box Power Distribution Board Single Door
Outdoor Construction Site Circuit Control Box Power Distribution Board Single Door
Specifications
Model Number :
kH415415677
Certification :
ISO9001，CCC
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T,Western Union
Delivery Time :
15 Days
Packaging Details :
Carton
Shape :
Rectangular
Ventilation :
Yes
Size :
Customizable
Waterproof :
Yes
Weight :
Customizable
Usage :
Outdoor Construction on-site equipment (mixers, welders), temporary lighting, and power tools
Corrosion Resistance :
Yes
Material :
Metal
Installation :
Wall mounted/ free standing
Lock Type :
Key Lock
Number Of Doors :
1 or 2
Fireproof :
No
Color :
Grey / Others
Price :
USD28-68889
Description

Outdoor Construction Site Circuit Control Box Power Distribution Cabinet



Product Describe:

Outdoor Construction Site Circuit Control Box Power Distribution Cabinets are widely used in various outdoor construction scenarios. In highway and railway construction, they power large machinery and manage temporary facility power, adapting to complex terrains with dustproof and waterproof designs. At building construction sites, they distribute electricity for construction machinery and temporary areas, facilitating flexible wiring. In oil and gas field operations, they provide power with explosion-proof features and resist corrosion. For mining and quarry sites, they power heavy machinery, distribute electricity for underground systems, and support high-current output. In infrastructure projects like bridges and tunnels, they supply power for equipment, manage temporary systems, and have high protection ratings. In renewable energy construction, they power installation equipment, manage temporary power, and integrate with energy storage systems.


Design:

Parameter Specification
Rated Dispersal Factor 0.8
Insulation Material Name and Heat Resistance Rating DMC, Heat Resistance Class F
Rated Frequency 50Hz
Rated Voltage 380V
Rated Insulation Voltage 660V
Rated Impulse Withstand Voltage 6kV
Rated Current of Main Busbar 40A - 630A
Rated Short - time Withstand Current of Main Busbar 15kA
Rated Peak Withstand Current of Main Busbar 30kA
Rated Current of Main Switch 40A - 630A
Rated Short - circuit Breaking Capacity of Main Switch (Icu) Type; 18kA
Rated Operational Short - circuit Breaking Capacity of Main Switch (Ics) Type; 14kA
Number of Outgoing Circuits 4 circuits, 5 circuits, 6 circuits
Rated Current of Outgoing Circuits (Inc) 4 Circuits: 1, 2, 3, 4 branches, 100A; 5 Circuits 1, 2, 3, 4, 5 branches, 100A; 6 Circuits 1, 2, 3, 4, 5, 6 branches, 100A
Rated Short - circuit Withstand Current of Outgoing Circuits (Icc) 5kA


Material:

Cold rolled steel /Stainless Steel


IP Rating:IP55/IP65/IP66


OEM / ODM Suggestion :

1. Clarify core requirements first
Power load: Determine the number of circuits and circuit breaker specifications based on the total power of equipment (e.g., a 250kW load requires a large-sized cabinet) to avoid underloading or redundant waste.
2. Installation scenario: For outdoor/humid environments, prioritize IP55 protection and stainless steel (SUS304); for dry indoor scenarios, galvanized steel plates can be chosen to reduce costs.
Installation method: Wall-mounted models should be compact with a height ≤500mm; floor-standing models need to consider maintenance space, with a recommended depth ≥300mm.
3. Size customization: Precisely adapt to space
If installation space is limited (e.g., narrow equipment rooms), adjust according to the principle of "prioritizing width reduction while ensuring depth/height meets component layout" (e.g., 300×200×400mm for low-load equipment).
If integrating multiple modules (e.g., surge protection + multi-circuit sockets), a depth ≥250mm is recommended to reserve space for wiring and heat dissipation.
4. Functional customization: Focus on core scenarios
Industrial construction sites: Prioritize customizing explosion-proof switches and 63A industrial sockets to adapt to heavy-duty equipment.
Temporary power distribution: Choose modular terminal blocks for easy quick disassembly; redundant protection modules can be omitted to reduce costs.
Lightning-prone areas: Mandatorily add surge protection modules (e.g., Class T2) to enhance safety.
