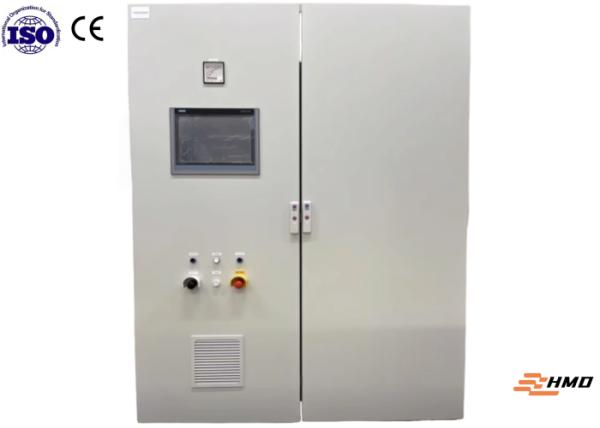

Compressor Room Low Voltage Switchgear Panel ATEX LV Switchboard VFD Control Cabinets
Compressor Room Low Voltage Switchgear Panel ATEX LV Switchboard VFD Control Cabinets
Specifications
Model Number :
UG15641555877
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
20 days
Packaging Details :
Wooden case Packaging
Ip Rating :
IP54 IP55 IP30 IP40
Application :
Industrial, commercial, and Process control
Material :
Mid Carbon Steel / Carbon Steel/ATEX
Color :
Silver or Others
Customization :
Logo printing, size and color customization available
Mounting Type :
Wall mount, pole mount，free standing
Usage :
Electric control
Certifications :
CE
Size :
Various sizes available
Locking Mechanism :
Key lock
Finish :
Powder coated
Shape :
Rectangular
Features :
Durable, corrosion-resistant, weatherproof
Price :
USD28-68889
Description

Compressor Room LV Switchboard VFD Control Cabinets ATEX Enclosure



Typical Applications

1. Petrochemical Plants: Power control for compressors handling crude oil/gas, with Ex dⅡCT4 enclosures preventing spark ignition from leaks.
2. Chemical Facilities: Manages compressor power in synthesis lines, resisting corrosion from flammable solvents/reactive gases.
3. Oil/Gas Extraction: Controls gas compressors on platforms/wellheads, using flameproof gaskets to contain internal arcs.
4. Paint/Coatings Production: Ensures safe operation of air compressors in VOC-rich environments, enabling precise pressure control.
5. Pharmaceutical Cleanrooms: Safely powers compressors handling ethanol sterilization, maintaining GMP compliance.


Design:

Compressor Room LV Switchboard Parameter
Rated working voltage (V) 400,660,690,1000 etc. - 400,660,690,1000 etc.
Rated insulation voltage (V) 1000
Rated current (A) Horizontal busbar: up to 6300 at maximum
Vertical busbar: up to 1000 at maximum
Rated short - circuit breaking current (kA) 50 - 100
Rated short - time withstand current (kA) 50 - 100
Protection level IP30 and above
Size (mm) (width) : 800 - 1000
(depth) : 400 - 1200
(height) : 2200
Weight(Kg) 400 - 600


IP Grade:

IP30/IP40/IP54/IP55/IP65


Suggestion:

1. Petrochemical Compressor Rooms: 316 stainless steel enclosures (corrosion resistance); Ex dⅡCT6 components (heat resistance); gas-tight cable entries.​
2. Chemical Facilities: Acid-resistant epoxy-coated enclosures; modular motor control (Profibus/Modbus); pressure-relief valves.​
3. Oil/Gas Extraction Sites: 6mm steel enclosures (impact resistance); ATEX Zone 1/21 gas sensors (auto-shutdown); subsea-rated explosion-proof cable glands.​
4. Paint/Coating Plants: IP66 enclosures (VOC dust protection); certified explosion-proof VFDs; visible overload alarms.​
5. Pharmaceutical Cleanrooms: 304 stainless steel (electropolished, easy sanitization); hermetic seals (ethanol resistance); GMP data loggers.​
6. Universal Add-Ons: Customizable panels (explosion-proof buttons/displays); pre-drilled conduit holes; explosion-proof backup batteries.
