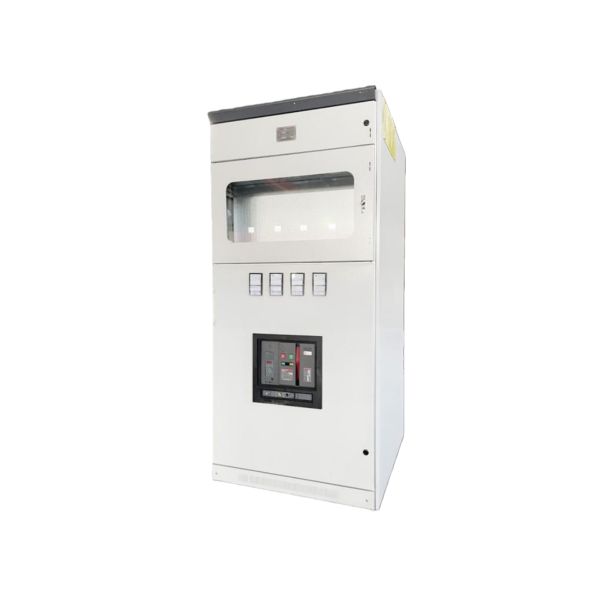

Low Voltage Incoming Line Control Cabinet for Power Distribution Systems
Low Voltage Incoming Line Control Cabinet for Power Distribution Systems
Low Voltage Incoming Line Control Cabinet for Power Distribution Systems
Low Voltage Incoming Line Control Cabinet for Power Distribution Systems
Specifications
Brand Name :
No Brand
Model Number :
7847829758921
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
999
Payment Terms :
T/T,Western Union
Supply Ability :
7 days
Delivery Time :
7 days
Packaging Details :
Wooden case
Features :
Lockable, Durable, Weatherproof
Accessories :
Hinges, Handles, Screws
Certifications :
CE
Surface Treatment :
Powder Coating
Structure :
Single Door/ 2 doors
Material :
Steel
Shelves :
Adjustable
Color :
Grey / Other colors
Shape :
Rectangular
Number Of Doors :
1 or 2
Locking Mechanism :
Key lock
Finish :
Powder coated
Installation :
Wall-mounted or Floor-standing
Application :
Industrial, commercial, BAS
Waterproof :
Yes
IP Rate :
IP54 / IP65
Size :
1600*600*400mm - 2200*1200*1000mm
Description
Low Voltage Incoming Line Control Cabinet for Power Distribution Systems
The Low Voltage Incoming Line Control Cabinet is designed to receive and distribute electrical power from the main supply to downstream circuits, providing switching, protection, metering, and monitoring functions.
It is a key component of low-voltage power distribution systems, ensuring safe, reliable, and efficient operation of industrial, commercial, and public infrastructure electrical networks.

Applications
1. Industrial Facilities
Controls main incoming power for factories, workshops, and production plants.
Protects equipment from overload, short circuits, and phase loss.
2. Commercial and Office Buildings
Receives power from utility supply and distributes it to lighting, HVAC, elevators, and general equipment.
Supports integration with Building Management Systems (BMS) for monitoring and control.
3. Renewable Energy & Utility Stations
Serves as the main LV panel for solar PV, wind energy, and other distributed generation connections.
4. Infrastructure and Public Projects
Suitable for airports, railway stations, hospitals, and large complexes.
Provides reliable main power control with safety and redundancy features.
5. Power Distribution Substations
Interfaces with transformers, feeders, and secondary distribution panels.
Ensures stable power supply for multi-building or multi-zone systems.
Specifications & Customization Options
Item Specification Description
Height (H) 1600-2200 mm Standard sizes available; custom height optional
Width (W) 600-1200 mm Multiple widths for single or double cabinet configurations
Depth (D) 400-1000 mm Adjustable based on wiring and component layout
Material Cold-rolled steel / Stainless steel / Aluminum alloy Durable structure with anti-corrosion coating
Surface Treatment Electrostatic powder coating / Phosphating RAL color options available
Protection Level IP40 / IP54 / IP65 (optional) Suitable for different installation environments
Busbar Rated Current 250A - 3200A Supports various load capacities
Outgoing Type Top / Bottom / Dual Outgoing Flexible cable routing design
Installation Method Floor-standing / Wall-mounted / Combined type Suitable for industrial and building systems
Applicable Fields Factories, Buildings, Water Treatment, Automation Systems Reliable solution for modern power distribution
