Specifications
Brand Name :
YUANHAI
Model Number :
YH005
Certification :
ISO9001
Place of Origin :
Hebei Province,China
MOQ :
200rolls
Price :
US$8~25
Payment Terms :
L/C,T/T
Supply Ability :
20000 Roll/Rolls per Month
Delivery Time :
5-8 work days
Packaging Details :
Coiled in heavy-duty plastic or steel straps
Blade Type :
Stainless Steel Double-Edged
Core Wire :
2.5mm+2.0mm Dual Galvanized Steel
Coil Diameter :
450mm (±20mm)
Blade Spacing :
34mm (±2mm)
Coating :
Class 3 Hot-Dip Galvanized (300g/m²)
Temperature Range :
-40°C to +80°C
Installation :
Pre-Formed Concertina Coils
Sample :
For Free
Description

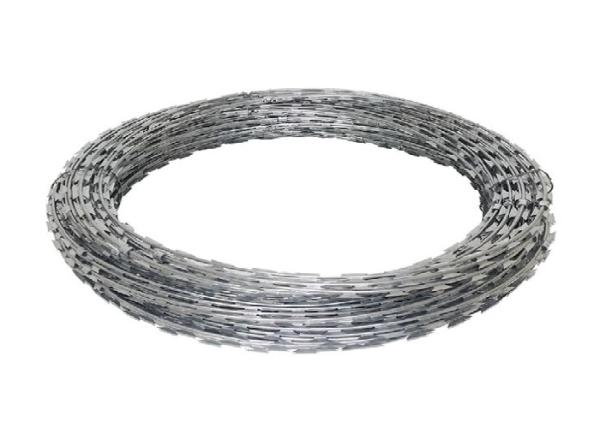

Concertina Razor Wire Coil with Sharp Blade Design for Intrusion Prevention
Product Attributes
Blade Type Stainless Steel Double-Edged
Core Wire 2.5mm+2.0mm Dual Galvanized Steel
Coil Diameter 450mm (±20mm)
Blade Spacing 34mm (±2mm)
Coating Class 3 Hot-Dip Galvanized (300g/m²)
Temperature Range -40°C to +80°C
Installation Pre-Formed Concertina Coils
Sample For Free
High Security Razor Barbed Wire - Anti Climb Corrosion Resistant Durable Fencing

Our High Security Razor Barbed Wire is engineered to provide maximum perimeter protection for bases, correctional facilities, and other high-risk areas. Featuring 420 stainless steel blades with a 30° cutting angle and a dual-core galvanized steel wire, this anti-climb barrier delivers superior intrusion prevention while maintaining exceptional weather resistance.

Key Features
  • -Grade Security: 60mm long stainless steel blades with 30° cutting angle, dual-core galvanized steel wire (2.5mm+2.0mm) resists bolt cutters, climb-resistant spiral design with 450mm coil diameter
  • Extreme Durability: Hot-dip galvanized (300g/m²) + PVC coated options, withstands temperatures from -40°C to 80°C, salt spray resistant (2000+ hours ASTM B117)
  • Flexible Deployment: Pre-formed concertina coils for rapid installation, compatible with all standard fence systems, modular expansion capability
Technical Specifications
Specification 420 Stainless Steel
Core Wire 2.5mm+2.0mm Galvanized Steel
Coil Diameter 450mm (±20mm)
Blade Spacing 34mm (±2mm)
Roll Length 10m or 15m (custom available)
Tensile Strength ≥1200N (core wire)
Coating Class 3 Galvanized or 0.6mm PVC
Applications
  • bases and border security
  • Prisons and detention centers
  • Critical infrastructure protection
  • High-value storage facilities
  • Government and embassy compounds
Manufacturing Process
  • Wire Drawing: High-carbon steel wire is cold-drawn to precise diameters (2.5mm + 2.0mm)
  • Blade Stamping: 420 stainless steel blades are precision-stamped and heat-treated for hardness (HRC 50-55)
  • Spiral Coiling: Automated machinery forms the wire into 450mm diameter concertina coils
  • Galvanizing: Hot-dip galvanizing at 450°C for 300g/m² zinc coating
  • PVC Coating (Optional): Electrostatic spray for color and extra corrosion resistance
  • Quality Control: Salt spray testing (2000+ hours ASTM B117) and load verification
Advantages
  • Sharper Blades: 40% more cutting efficiency than standard barbed wire
  • Longer Lifespan: 10+ years of service in harsh environments
  • Faster Installation: Pre-formed coils reduce setup time by 5X
  • Customizable: Available in galvanized or PVC-coated finishes
FAQ
Q: Installation spacing recommendation?
A: Every 200mm for maximum security, 300mm for standard protection.
Q: Minimum order quantity?
A: 200 rolls for standard configurations.
Q: Lead time for custom orders?
A: 2-3 weeks for special blade patterns/coatings.
Q: Maintenance requirements?
A: Annual visual inspection recommended.

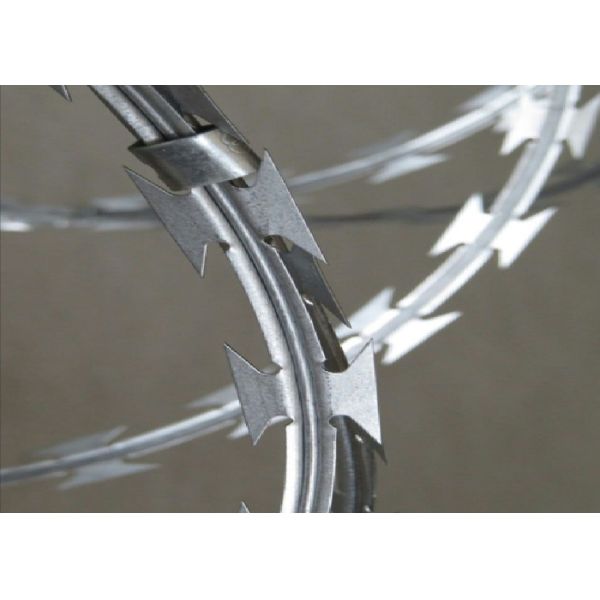

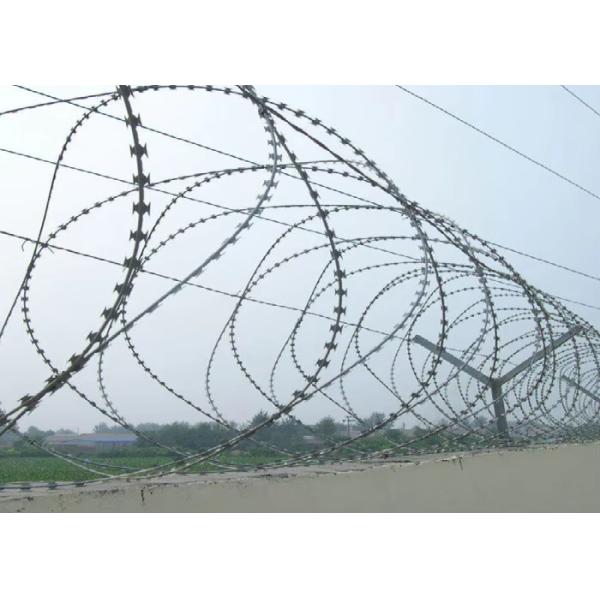

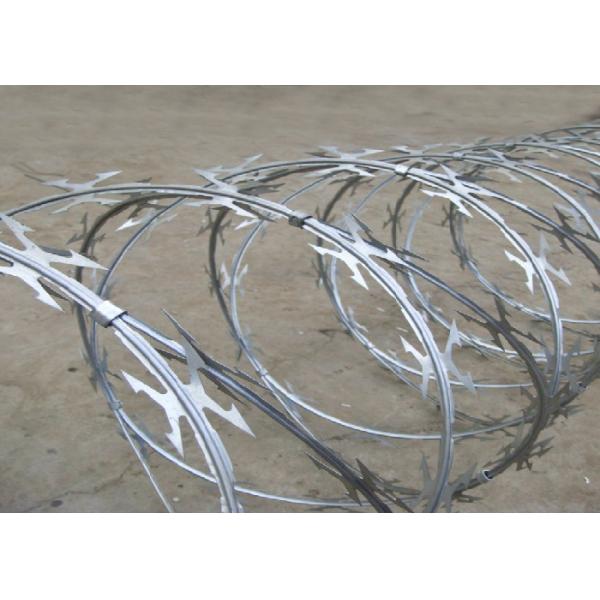

Product Images
Stainless Steel Razor Barbed Wire 450mm Coil Anti Climb Security Stainless Steel Razor Barbed Wire 450mm Coil Anti Climb Security Stainless Steel Razor Barbed Wire 450mm Coil Anti Climb Security
