Stainless Steel Razor Barbed Wire BTO-22 50kg Roll for Farm Fencing
Stainless Steel Razor Barbed Wire BTO-22 50kg Roll for Farm Fencing
Stainless Steel Razor Barbed Wire BTO-22 50kg Roll for Farm Fencing
Stainless Steel Razor Barbed Wire BTO-22 50kg Roll for Farm Fencing
Stainless Steel Razor Barbed Wire BTO-22 50kg Roll for Farm Fencing
Stainless Steel Razor Barbed Wire BTO-22 50kg Roll for Farm Fencing
Specifications
Brand Name :
YUANHAI
Model Number :
YH-005
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
200 rolls
Price :
US$8~25
Payment Terms :
T/T,L/C
Supply Ability :
20000 rolls per month
Delivery Time :
5-10 work days
Packaging Details :
carton box or wooden box
Product Name :
Razor Barbed Wire
Key Word :
Single Coil Concertina Razor Barbed Wire
Razor Blade Style :
BTO-22/BTO-11/BTO-30/CBT-60/CBT-65
Outer Diameter :
2*1*0.5
Core Wire Diameter :
2.5mm-3.0mm
Blade Space :
34±1mm
Blade Width :
13mm-20mm
Razor Barbed Type :
Cross Razor
Depth :
1.5-2.5mm,2.0mm,1.5mm,0.9,300-600mm
Wire Gauge :
12-1/2x14 BWG
Coil Outside Diameter :
500mm
Colors :
green or silver
Port :
Tianjin
Packing :
Coil, pallet, or as per customer's request
Description

50kg Stainless Steel Black Galvanized Razor Barbed Wire Fence Roll For Farm



Razor Barbed Wire Description


Barbed wire, also known as barbed tape or razor wire, is a type of metal wire used for boundary protection.
The main feature of barbed wire is the sharp barbs evenly distributed along the wire, which are used to deter people or animals from crossing the boundary.

Flat wrap razor wire can use different blades.Razor Barbed Wire Application in Fence mainly serves in protecting of grass boundary, railway, highway and also widely used industry, agriculture, animal husbandry, dwelling house, plantation for fencing.

Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.


Razor Barbed Wire Advantages

1.Flat wrap coils will substantially improve the effectiveness of the fence. Installed on this basis, innocent persons are protected from injury by the smooth wire mesh fence while the potential intruders will get frightened back.
2. he flat coils provide a neat but effective barrier when used together with mesh fences.
3.Flat wrap coil installation is particularly simple when it is fitted by overlapping the fence mesh.

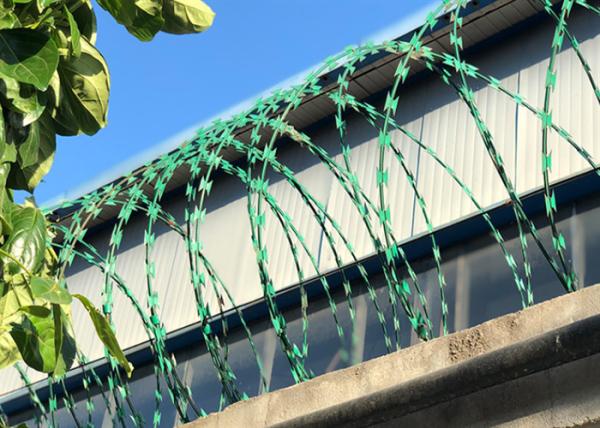

4.It provides a high barrier when mounted to the wall.

Installation Forms
* Flat wrap coils can be used in the following forms.
* Installed against the existing smooth wire mesh fence.
* Fitted to the welded mesh fence.
* Fitted by overlapping the fence mesh.
* Installed to the brick wall directly.

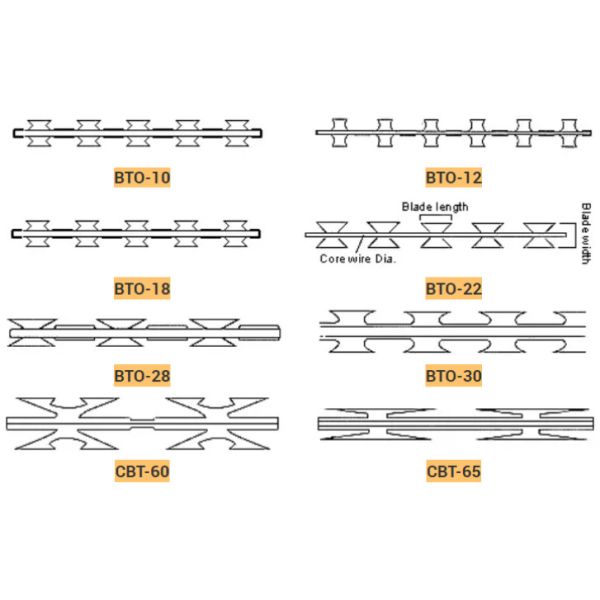

Razor Barbed Wire Specification

Reference Number Thickness Wire Dia Barb
Length		 Barb
Width		 Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
BTO-30 0.5±0.05 2.5 30 18 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±1


Outside Diameter
No.of Loops

 Standard Length per Coil Type Notes
450 mm
33


8m
 CBT-65 Single coil
500 mm 41 10m CBT-65 Single coil
700 mm 41 10m CBT-65 Single coil
960 mm
 53 13m CBT-65 Single coil
500 mm 102 16m BTO-10.15.22 Cross type
600 mm 86 14m BTO-10.15.22 Cross type
700 mm 72 12m BTO-10.15.22 Cross type
800 mm 64 10m BTO-10.15.22 Cross type
960 mm 52 9m BTO-10.15.22
Cross type
