Double Loop Wire Fencing - Heavy Duty Security Barrier with Anti-Climb Design

Product Overview:

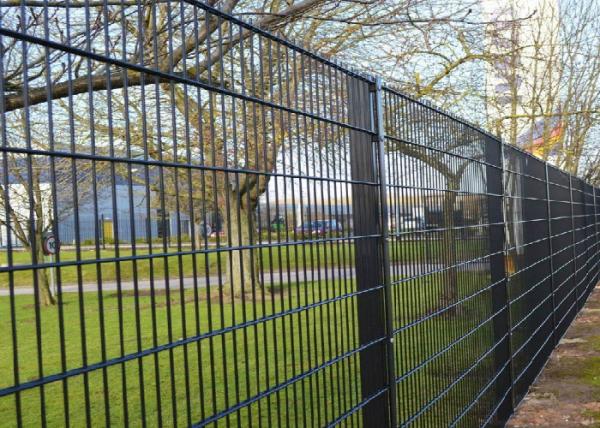

Our Double Loop Wire Fencing is a high-security perimeter solution designed for maximum protection against intrusion while maintaining durability and visual appeal. Featuring interlocking double-loop steel wire construction, this fencing system provides superior anti-climb and anti-cut resistance, making it ideal for correctional facilities, military bases, industrial sites, and high-security commercial properties. The hot-dip galvanized coating ensures long-term corrosion resistance, while the rigid yet flexible design adapts to various terrains.

Key Features:

1. Enhanced Security

• Double-loop wire design prevents cutting and spreading, deterring climbing attempts
• Small mesh openings (50mm x 100mm) eliminate hand and footholds
• Reinforced vertical and horizontal wires resist bolt cutters and leverage attacks

2. Heavy-Duty Durability

• High-tensile steel wire (550MPa+) for impact resistance
• Hot-dip galvanized (85μm minimum coating) for 20+ years of rust protection
• Optional PVC coating (RAL 6005 green or black) for added UV and chemical resistance

3. Easy Installation & Low Maintenance

• Modular panels (2.4m x 3.0m standard) for quick assembly

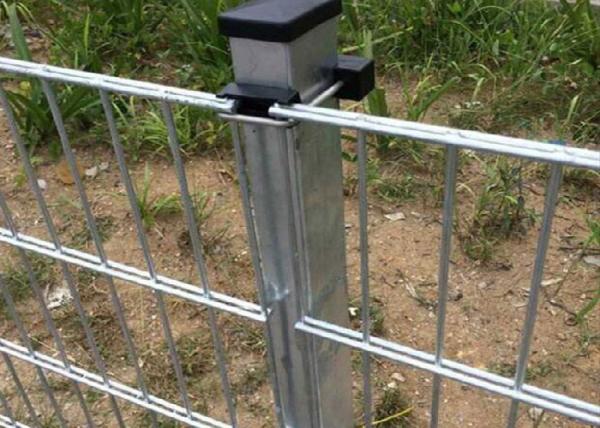

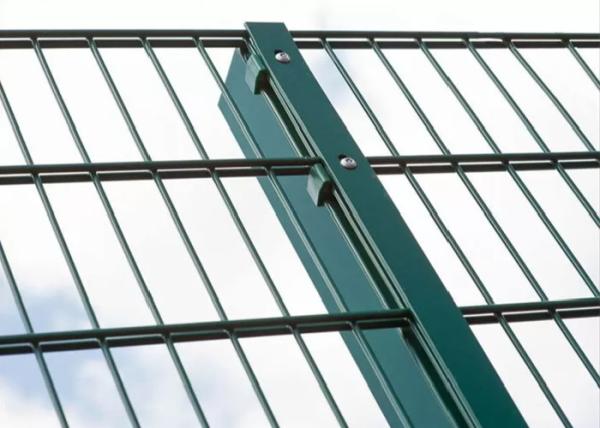

• Universal clamps and brackets allow for fast, tool-free adjustments
• No welding required – reduces labor costs and installation time

4. Versatile Applications

• Suitable for flat and sloped terrain
• Compatible with razor wire, electric fencing, or CCTV integration

Technical Specifications:

Applications:

Prisons & Detention Centers – Prevents escapes and unauthorized access

Military & Government Sites – Secures sensitive installations

Industrial & Utility Facilities – Protects power plants, refineries, and substations

Commercial & Residential – High-end property protection and crowd control

Transportation Hubs – Airport, seaport, and railway security

Manufacturing Process:

1.Wire Drawing & Forming

• High-carbon steel wire is cold-drawn to precise diameters (4.0mm–5.0mm)
• CNC looping machines create uniform double-loop patterns

2.Welding & Panel Assembly

• Automated resistance welding ensures strong, consistent joints
• Reinforced borders (6mm steel frame) for structural integrity

3.Surface Treatment

• Hot-dip galvanizing (450°C zinc immersion for corrosion resistance)
• Optional PVC coating (electrostatic spray for color and extra protection)

4.Quality Control

• Salt spray testing (2000+ hours per ASTM B117)
• Load testing (500kg/m² static pressure resistance)

FAQ
Q: How does double-loop fencing compare to chain link?
A: It offers 3x greater cut resistance and anti-climb properties, making it ideal for high-security needs.

Q: What’s the lead time for custom orders?
A: 10–15 days for non-standard sizes/coatings.

Q: Is it suitable for coastal areas?
A: Yes, especially with PVC coating or 316 stainless steel wire (on request).

Q: Can I add barbed wire or electric fencing?
A: Absolutely – we provide integrated solutions with razor coils or electric conductors.

Q: Maintenance requirements?
A: Minimal – occasional rinsing to remove dirt/debris is sufficient.

Contact us today to request a quote or schedule a virtual product demonstration!
