Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8
Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8
Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8
Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8
Specifications
Brand Name :
Yuanhai
Model Number :
YH-007
Certification :
ISO 9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 PCS
Price :
US$3.2~5
Payment Terms :
T/T,L/C
Supply Ability :
10000PCS/10 DAYS
Delivery Time :
according to quantity
Packaging Details :
By pallet or as demand
Product Name :
twin wire fence
Key Word :
Double Rod Wire Fence
Post :
Square Post
Post Thhickness :
1.2mm
Wire Diamete :
8/6/8mm
Wire Diameter :
1.5mm-8.0mm
Surface Treatmnt :
PVC Coated
Size :
Customized
Usage :
Highway Fence
Application :
Agricultural
Weatherresistance :
Excellent
Tensilestrength :
80,000 psi
Description

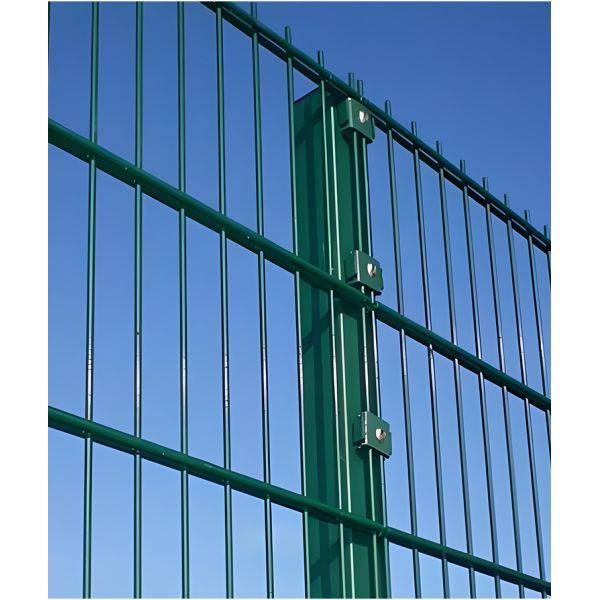

Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8



Twin Wire Fence Description


Double wire mesh fence is made of heavy welded mesh panels with double horizontal wires. This complete professional fencing system provides both extreme rigidity and security. It is recommended for professional fencing of schools, playgrounds, parks, sports grounds, public buildings, factories, workshops, airports and military sites.

Our double mesh fence can be customized according to your requirements, we have professional design team, and provide CAD drawing, 3D drawing and installation drawing for you.

We have advanced welded machines and advanced powder coated lines. The mesh panel welded by our machines is flat, and the solder joint are strong. The powder we used is Akzo Nobel powder. This coating is super durable and provides the industry's highest weather ability and Gloss Retention in U.V.exposure. Assured a long service lift for the fencing systems.


Twin Wire Fence Specification


Height
× Width Panel
mm
Mesh Size
mm

Wire Diameter

mm

 Post of Height
mm
630×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 1100
830×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 1300
1030×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 1500
1230×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 1700
1430×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 1900
1630×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 2100
1830×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 2400
2030×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 2600
2230×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 2800
2430×2500
50×200
 8×2 + 6 6×2 + 5 6×2 + 4 3000
Fence Post
Dimensions of Type
Square post/Rectangle post/Peach post/Round post
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post

Fence Accessories
Clips/Clamps
Metal Clips and Plastic Clips
Rain hat or caps for posts
Metal caps or plastic caps

Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8

Twin Wire Fence Features

1. Attractive appearance

Different design from common fence, Round edges, Triangle edges and square edges make the fence more beautiful and elegant.

2. Built in rigidity

The rolled beam profile at the top and bottom edge of each panels results in maximum rigidity.

3. Longevity

The polyester coating is able to guarantee longevity. With different color can make the fence become markedly.

4.User friendly

Edge fence is easy to install and dismantle, Friendly top and bottom design, Safety and have low maintenance.


Twin Wire Fence Process


Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8


Twin Wire Fence Packing


<1>Plastic film at the bottom to avoid the panel be destroyed

<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position

Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8Powder Coated Twin Wire Fence PVC Mesh Fence Galvanized 8/6/8
