3*6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment
3*6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment
3*6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment
3*6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment
3*6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment
3*6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment
Specifications
Brand Name :
LJ
Model Number :
LJ-15
Certification :
ISO9001:2015,SGS
Place of Origin :
Hebei Province,China
MOQ :
50pcs
Price :
$7.9-9.8 per squaremeter
Payment Terms :
T/T
Supply Ability :
5000㎡ per week
Delivery Time :
5-8 days

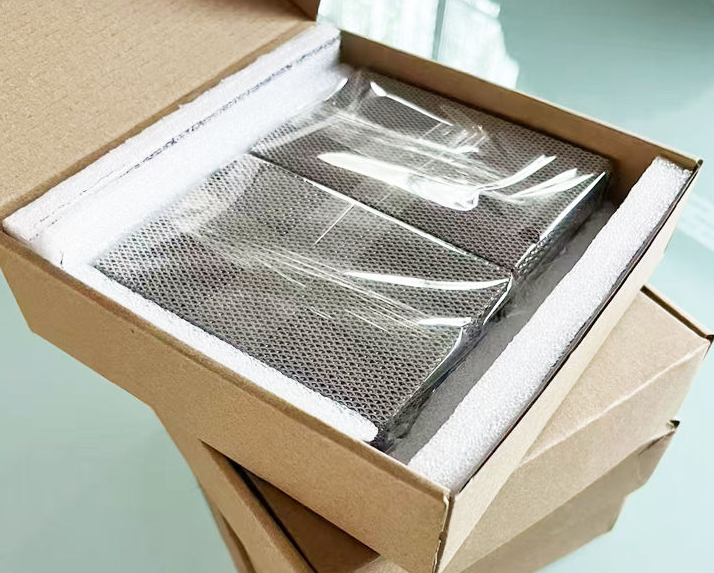

Packaging Details :
by wooden box or customized
Product Name :
Expanded Metal Mesh
Key Word :
diamond mesh
Material :
Titanium, nickel, Alloy, Copper, Brass, Monel,etc
Type :
Flattened Expanded Mesh Type, Standard Expanded Mesh Type
Thickness :
0.05mm, 0.1mm 0.3mm 0.5mm
Feature :
Extreme Corrosion Resistance
Application :
Hydrogen Production;Energy Storage Systems
Origin :
Hebei Province,Chia
Sample :
For Free
Description

3*6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment

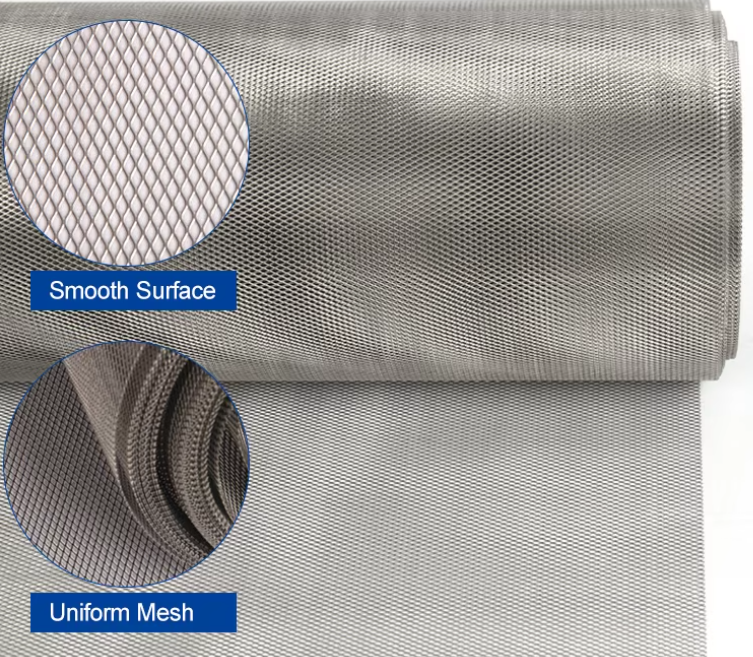

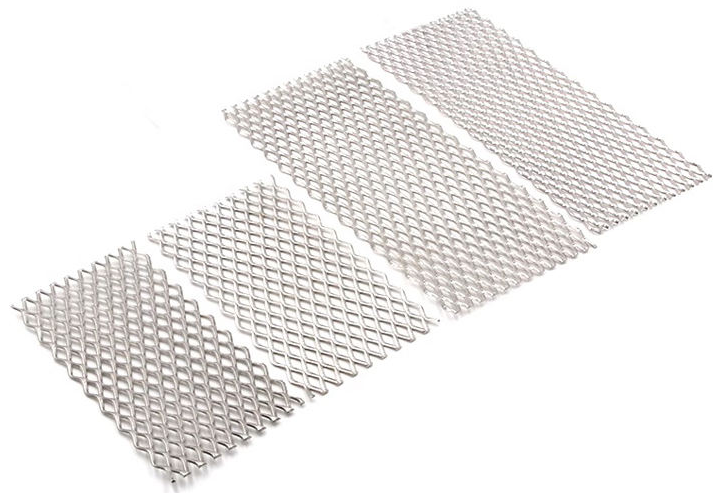

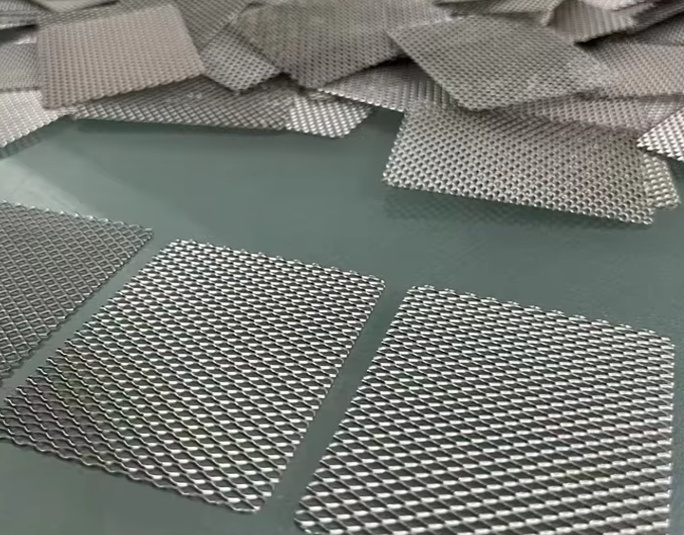

Description of Expanded Metal Mesh


The 3×6mm MMO Titanium Expanded Mesh for PEM Electrolytic Water Treatment is a high-performance electrode material designed for advanced electrochemical applications. Manufactured from premium-grade titanium substrate and coated with Mixed Metal Oxide (MMO), this expanded mesh offers excellent corrosion resistance, superior electrical conductivity, and long service life in harsh operating environments.

With a precise 3×6mm mesh opening, the structure ensures optimal current distribution and efficient gas release, making it ideal for Proton Exchange Membrane (PEM) electrolysis systems. It is widely used in water treatment processes such as electrochlorination, hydrogen generation, and wastewater purification.

Engineered for durability and efficiency, this MMO titanium expanded mesh delivers stable performance under high current density, reducing maintenance costs and improving overall system reliability. It is an ideal choice for industrial water treatment, energy applications, and environmentally sustainable electrochemical systems


Specification of Expanded Metal Mesh


Material

Titanium, nickel, Alloy, Copper, Brass, Monel, and other alloy metal....

Thickness

0.05mm, 0.1mm 0.3mm 0.5mm, 0.8mm, 1.0mm 2mm, to 5mm

Type

Flattened Expanded Mesh Type, Standard Expanded Mesh Type

Hole Size

1*2mm 0.5*1mm 2*4mm 3*5mm 4*8mm 5*10mm....

Treatment

Coating treatment can be provided as per your request.


Features of Expanded Metal Mesh


Small hole titanium expanded metal mesh inherits the excellent properties of titanium materials while exerting unique advantages brought by its small-hole structure, making it widely applicable in high-precision and harsh-environment scenarios. Its core features are as follows:
1. Enhanced Corrosion Resistance with Precision Protection
Based on titanium's inherent stable oxide protective layer, the small-hole structure minimizes the contact area between the mesh surface and corrosive media while ensuring uniform stress distribution. It maintains long-term durability in harsh environments such as strong alkalis, marine salt spray, and chemical reagents, with corrosion resistance even superior to conventional titanium expanded metal mesh in precision corrosion-resistant applications.
2. Outstanding Strength Retention with Compact Structure
It retains titanium's high strength-to-weight ratio (45% lighter than steel with equivalent strength) and adopts an integrated expansion process without welds or joints. The dense small-hole distribution further enhances the mesh's structural rigidity and load-bearing capacity, avoiding deformation under high pressure, vibration, or heavy load conditions while keeping the overall weight low.
3. Excellent Filtration & Electrochemical Uniformity
The uniform small holes (customizable from several micrometers to millimeters) enable high-precision filtration, effectively intercepting micro-particles while ensuring smooth fluid permeability. In electrochemical applications such as electrolysis, fuel cells, and desalination, the small-hole structure increases the specific surface area, ensuring uniform current distribution and stable electrochemical reactions, making it an ideal substrate for MMO-coated anodes.
4. Superior High-Temperature Stability & Biocompatibility
High-Temperature Resistance: Maintains structural integrity and dimensional stability in high-temperature environments up to 600°C, without oxidation or deformation, suitable for high-temperature filtration and thermal processing scenarios.
Biocompatibility: Non-toxic, non-magnetic, and non-irritating to human tissues. The smooth small-hole surface avoids damage to cells, making it widely used in medical fields such as precision implants, biological filtration, and medical device components.


Applications of of Expanded Metal Mesh


1. PEM Electrolytic Water Treatment

This mesh acts as a critical anode for high-efficiency water electrolysis, used to produce ozone or hydrogen for water purification.

Disinfection: Generates powerful oxidizing agents to eliminate bacteria and viruses in industrial and municipal water.

Hydrogen-Rich Water: Used in the production of antioxidant hydrogen water for health and industrial applications.

2. Hydrogen Production (PEM Electrolyzers)

Specifically designed for the oxygen evolution reaction (OER) side of the PEM stack.

Current Collectors: Serves as the primary interface between the bipolar plate and the catalyst layer.

Gas Diffusion Layer (GDL) Support: Provides mechanical support to the membrane while allowing oxygen bubbles to escape through the 2x4mm openings.

3. Electrochlorination & Desalination

Brine Electrolysis: Used in systems that convert salt water into sodium hypochlorite for ship ballast water treatment or power plant cooling systems.

Anti-fouling: Prevents the growth of marine organisms on underwater structures through electrochemical protection.
