Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch
Specifications
Brand Name :
YuanHai
Model Number :
YH-06
Certification :
ISO9001:2008
Place of Origin :
Hebei,China
MOQ :
100 Square Meters
Price :
US$4~20
Payment Terms :
T/T
Supply Ability :
100000 Square Meters per Week
Delivery Time :
3-7 days
Packaging Details :
palletized or loose load in the container
Product Name :
Expanded Metal Wire Mesh
Key Word :
Expanded Metal sheet
Product Kind :

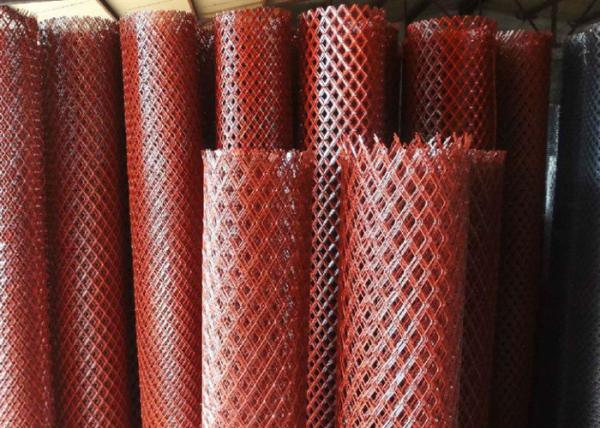

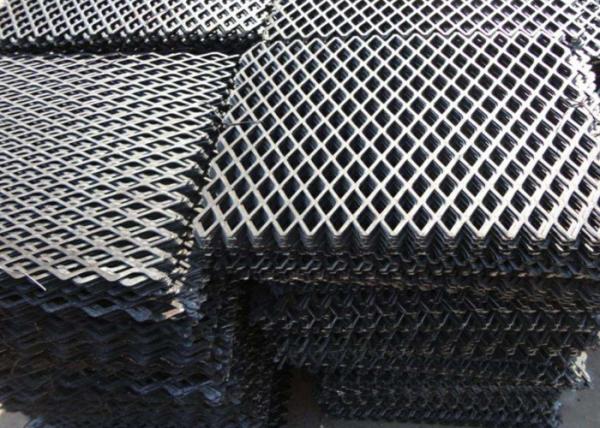

In Sheet Or In Roll
Sheet Size :
1mx2m, 4'x8' or 4'x10' or customized
Strand Thickness :
0.04" to 0.5" (1.02mm to 12.7mm)
Diamond Opening :
1.188" × 2.5"
Mesh Size :
1/4" to 1-1/2" (6.35mm to 38.1mm)
Lwm :
12.5-200mm
Panel Width :
1m,1.5m,1.8m,2m,2.2m,2.5m Etc
Mesh Shape :
diamond
Surface :
power coated,galvanized and so on
Application :

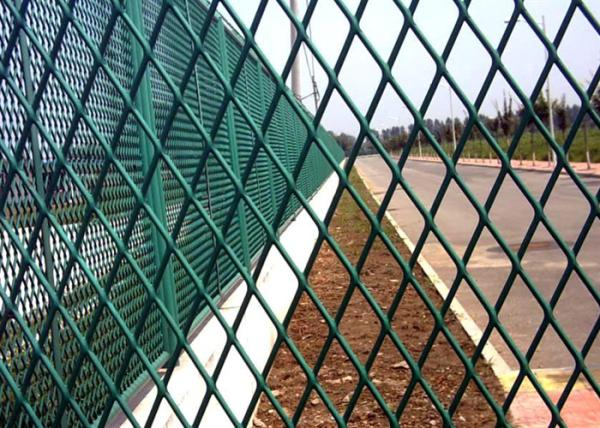

Fencing, Grating, Walkways, Security Screens, etc.
Description

Galvanized Expanded Metal Wire Mesh For Building Materials Plain Weave Welded



Expanded Metal Sheet Description

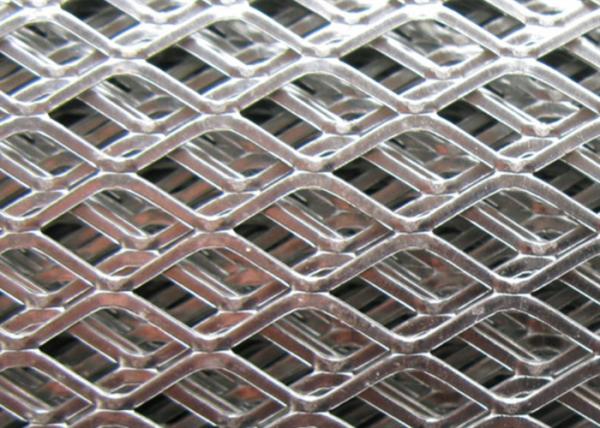

Our expanded metal mesh is available in a raised or a flattened pattern in different opening sizes, materials, sheet sizes and gauges. We offers expanded metal mesh materials such as carbon steel, galvanized steel, stainless steel or aluminium. The metal sheet is slit and stretched uniformly; openings are made with regular gaps in different shapes, including diamond, round, square, hexagonal, etc. The openings tend to ensure the smooth flow of light, liquids and air, the strands and bonds tend to add strength and rigidity to the expanded metal mesh, making the expanded metal mesh a multipurpose product.


Expanded Metal Sheet Specification


EXPANDED MESH
Thickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width & Length
0.5 2.5 4.5 0.5

Width: 0.5m-2.0m

Length: 30m, 50m

Other sizes can be made as request
0.5 10 25 0.5
0.6 10 25 1
0.8 10 25 1
1 10 25 1.1
1 15 40 1.5
1.2 10 25 1.1
1.2 15 40 1.5
1.5 15 40 1.5
1.5 23 60 2.6
2 18 50 2.1
2 22 60 2.6
3 40 80 3.8
4 50 100 4
4 60 120 4
4 80 180 4
4 100 200 4
4.5 50 100 5
5 50 100 5
5 75 150 5
6 50 100 6
8 50 100 8


Expanded Metal Sheet Application


Expanded metal mesh is widely used in railway, road, civil building construction, water conservancy project. It also can be used
in outer wall decoration and chemical industry, as window screen, filter, etc.
Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch

Features


Extremely versatile
Economical & durable
Easy to install
Easily cut to fit
Allows for free passage of air, light, heat, and sound.
Many material options, such as mild steel, stainless steel, galvanized and aluminum.

Packing

palletized or loose load in the container
