Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
Specifications
Brand Name :
YuanHai
Model Number :
YH-06
Certification :
ISO9001:2008
Place of Origin :
Hebei,China
MOQ :
100 Square Meters
Price :
US$4~20
Payment Terms :
T/T
Supply Ability :
100000 Square Meters per Week
Delivery Time :
3-7 days
Packaging Details :
palletized or loose load in the container
Product Name :
Expanded Metal Wire Mesh
Key Word :
Expanded Metal sheet
Thick :
0.8mm 1mm 1.2mm 1.5mm 1.8mm 2mm etc
Hole Tolerance :
+/-0.05mm
Feature :
beautiful, decorative
Mesh Size :
1/4 inch
Hole Type :
Hexagonal,Diamond,Square
Usage :
Industrial, Commercial, Residential
Packing :
In Rolls or Sheets
Sheet Material :
Pure Aluminium
Lwm :
12.5-200mm
Other Service :
Cutting, Bending, Welding, etc.
Description

Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh

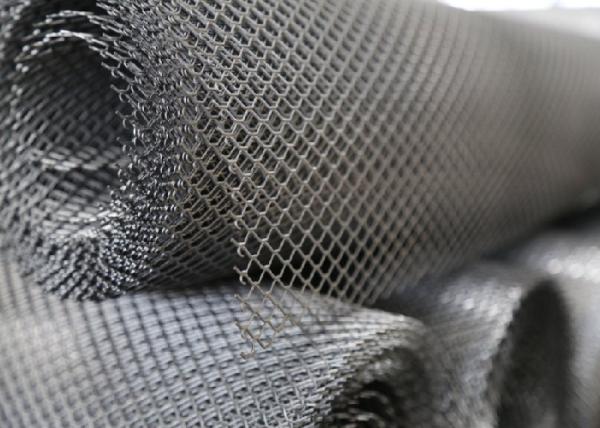

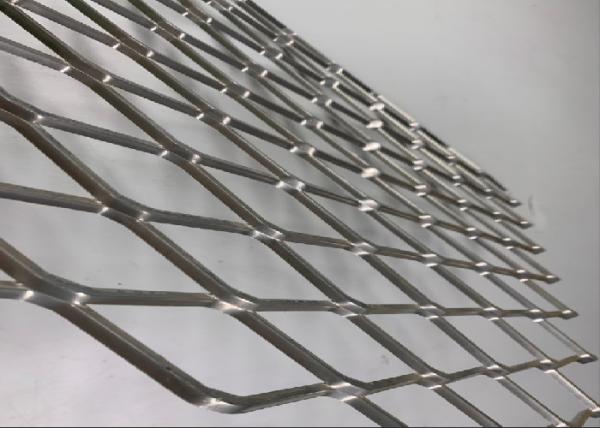

Expanded Metal Wire Mesh Description


Standard expanded metal, also known as raised expanded metal, is produced by simultaneously slitting and stretching metal sheets or coils. It features a surface of raised diamond-shaped openings. In addition, raised strands form an angle to the original plane of the solid sheet, adding additional strength and rigidity. It also delivers great anti-skid performance. As a result, it has virtually endless applications including road fences, platforms and stair treads, machine guarding, etc. We can supply a large assortment of standard expanded metal products made of high quality materials including carbon steel, galvanized steel and aluminum, to ensure the best performance and durability of the products. Besides, we can work with you to develop custom expanded metal solutions to fit your specific application through deep communication.


Expanded Metal Wire Mesh Specification


EXPANDED MESH
Thickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width & Length
0.5 2.5 4.5 0.5

Width: 0.5m-2.0m

Length: 30m, 50m

Other sizes can be made as request
0.5 10 25 0.5
0.6 10 25 1
0.8 10 25 1
1 10 25 1.1
1 15 40 1.5
1.2 10 25 1.1
1.2 15 40 1.5
1.5 15 40 1.5
1.5 23 60 2.6
2 18 50 2.1
2 22 60 2.6
3 40 80 3.8
4 50 100 4
4 60 120 4
4 80 180 4
4 100 200 4
4.5 50 100 5
5 50 100 5
5 75 150 5
6 50 100 6
8 50 100 8

Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh


Expanded Metal Wire Mesh Application


What is expanded metal used for?
Expanded metal is a type of sheet metal which has been cut and stretched to form a regular pattern (often diamond-shaped) of metal mesh-like material. It is commonly used for fences and grates, and as metallic lath to support plaster or stucco.
In contemporary architecture, expanded metal has been used as an exposed facade or screen material which can be formed into simple or complex decorative shapes. Photographic images may be printed on the surface, producing textures or large graphic images, which still allow light to filter through the exterior surface of a building.

Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh



Expanded Metal Wire Mesh Features


Extremely versatile
Economical & durable
Easy to install
Easily cut to fit
Allows for free passage of air, light, heat, and sound.
Many material options, such as mild steel, stainless steel, galvanized and aluminum.

Expanded Metal Wire Mesh Packing


1. to be according to your requirements to packing

2. inter with plastic paper per piece, 20 pieces per pallet.

3. inter with plastic paper per piece, 40 pieces per wooden box.

Hole 7 * 12mm Expanded Metal Wire Mesh For Fuel Filter Mesh
