Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection
Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection
Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection
Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection
Specifications
Brand Name :
KN
Model Number :
KNG01
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1000
Price :
USD 12-20
Payment Terms :
L/C,Western Union,MoneyGram,T/T
Supply Ability :
1 40-foot high containers in 7 days
Delivery Time :
7 days
Packaging Details :
pallet or bundle
Material :
Low-Carbon Iron Wire
Type :
Hexagonal Weave Type, Welded Mesh
Application :
Construction Wire Mesh
Hole Shape :
Hexagonal
Wire Gauge :
2.0-4.0mm
Processing Service :
Cutting, Weaving
Product Name :
Gabion Basket,Gabion Box,Gabion
Basket Size :
1x1x1m,2x1x1m,2x1x1m,2x1x0.5m,2x1x1m,3x1x0.5m,4x1x0.2m
Galfan Gabion :
Also Provide
Mesh Opening :
6*8cm,8*10cm,10*12cm
Color :
Dark Green,Gray,Silver
Zinc Coating :
30-300g/Square Meter
Sample :
Available
Features :
Fast Producing, Easy Installation
Description

Durable Mesh Retaining Wall Galvanized Hexagonal Wire Gabion Basket for Flood Control and Erosion Protection

Gabion basket also named:Hexagonal Gabion Wall, mesh retaining wall galvanized Gabion Cages, Gabion Basket, Gabion Box, Mesh Gabion box etc, made by zinc coated wire, double twisted into Hexagonal Wire Mesh, and then bending into basket or cage.

The gabion retaining wall are used widely in slope protection,mountain rock holding,gabion for river bank protection

Features of Gabion Basket:

  1. AESTHETICALLY PLEASING: Novel structure and wide vision make the panel strong and beautiful
  2. ADVANCED TECHNOLOGY: Uniform mesh and smooth surface with beautifully colored
  3. STURDY AND DURABLE: Wide mesh and thick wire diamater, strong rust and corrosion resistance
  4. WIDE RANGE OF USES: Installation is not restricted by topographical fluctuations

Common Gaboin Basket Size :

Gabion Basket Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 1 0 1
2 1 1 1 2
3 1 1 2 3
4 1 1 3 4
5 1 1 4 5
6 1 1 5 6
Other Size Accept Customized

Gabion Mattress Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 0.3/0.5 0 0.3/0.5
2 1 0.3/0.5 1 0.6/1
3 1 0.3/0.5 2 0.9/1.5
4 1 0.3/0.5 3 1.2/2
5 2 0.3/0.5 4 3/5
6 2 0.3/0.5 5 3.6/6
Other Size Accept Customized

Product Usage:

  • Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.

  • Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.

  • Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.

  • Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.

  • Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.

  • Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.

Gabion Basket Technical Data as Followed:

Technical Data List
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh

Mesh Wire: 2.0~3.05mm

Selvage Wire: 2.4~4.0mm

Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires, determining the size of stones that can be contained

60*80mm, 80*100mm, 100*120mm,120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size

Gabion Roll Width: 1~4m

Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
Lifespan Expected service life under normal installation and maintenance conditions

Generally 6~20 years, depends on environment.

Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection Selvedge wire: 2.4 - 4.0mm
Mesh Hoe: 60*80mm, 80*100mm,100*120mm, 120*150mm
Mesh Wire: 2.0mm - 3.05mm

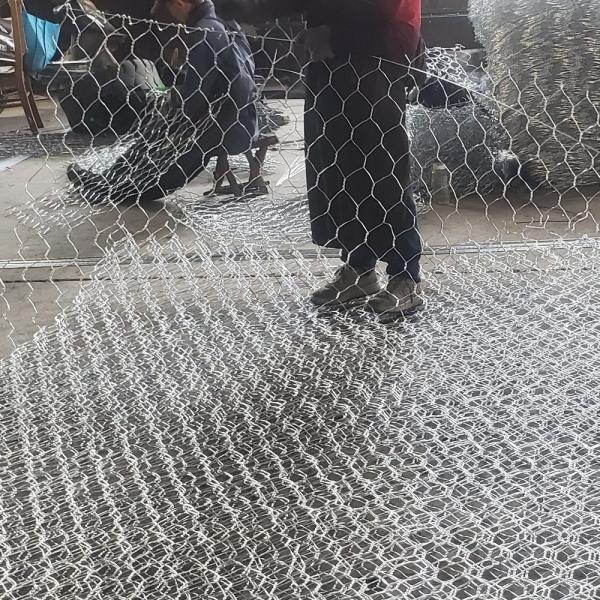

Product Process:

Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection

Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection

Gabion Basket Container Loading
Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection

Galvanized 2*1*1 Gabion

1/40HQ

Ship to Tanzania

Galvanized 3*1*1m Gabion

1/40HQ

Ship to Philippines

PVC Coated 2*1*1m Gabion Grey

1/20GP

Ship to Uganda

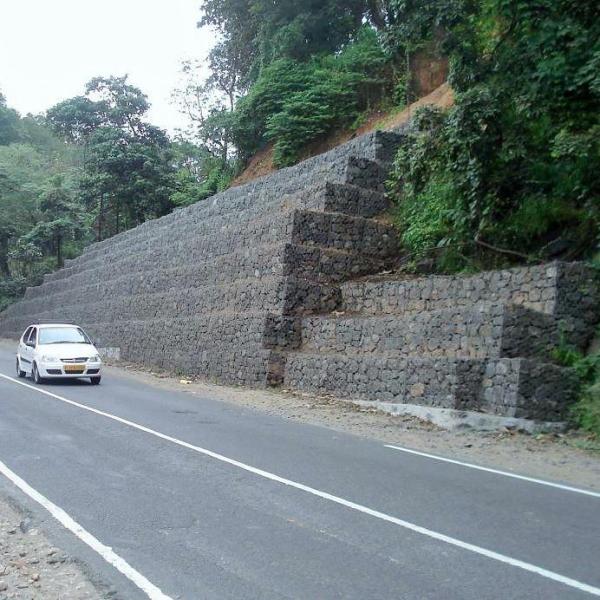

Gabion Mattress Project Site Picture:

Galvanized Hexagonal Wire Gabion Basket for Erosion Control and Flood Protection
