Galvanized Hexagonal Gabion Cages for Seawall Protection (2x1x1m)
Galvanized Hexagonal Gabion Cages for Seawall Protection (2x1x1m)
Galvanized Hexagonal Gabion Cages for Seawall Protection (2x1x1m)
Galvanized Hexagonal Gabion Cages for Seawall Protection (2x1x1m)
Specifications
Brand Name :
KN
Model Number :
KN-gabion cages
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CN
MOQ :
1000 pc
Price :
USD 35-49
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pc per day
Delivery Time :
15 work days
Packaging Details :
pallet
Product Name :
Galvanized Seawall Protection Used Hexagonal Gabion Wall/ Gabion Cages
Key Word :
gabion basket
Mesh Size :
60mmx80mm, 80mmx100mm, 100mmx120mm
Wicth :
1m 1.2m 1.5m 1.8m 2m Etc
Zinc Coating :
240-275g/m2
Process :
Woven Mesh
Assembly :
Easily Assembled
Edge Wire Diameter :
3.0-4.0mm
Feature :
Corrosion Resistance
Customization :
Available upon request
Apertuar :
60x80,80x100,100x120
Finish :
Hot dipped galvanized, or Galfan coated
Description

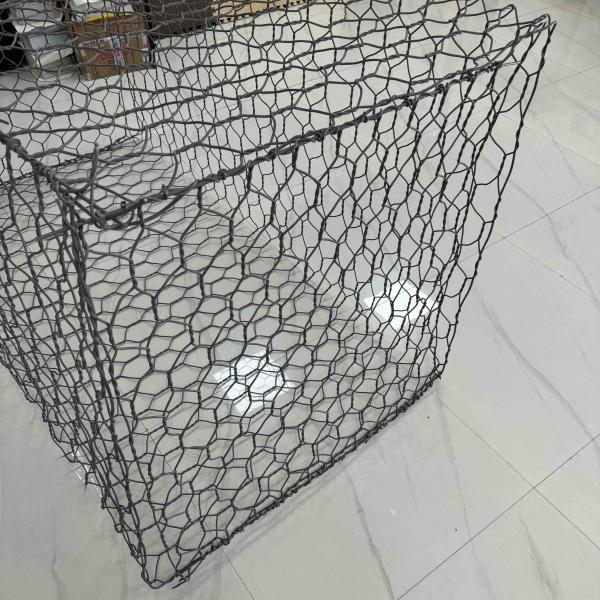

Galvanized Seawall Protection Used Hexagonal Gabion Wall/ Gabion Cages

Galvanized seawall protection in the form of hexagonal gabion walls and gabion cages is a highly effective and sustainable solution for coastal defense and erosion control. These structures are crafted from durable, corrosion-resistant wire mesh and filled with locally sourced stones or other aggregates, creating a robust and flexible barrier that can withstand the forces of nature.
The hexagonal shape of the gabion walls and cages provides added strength and stability, allowing them to adapt to various terrain conditions and weather patterns. This versatility makes them ideal for use in a wide range of applications, from protecting shorelines and riverbanks to reinforcing retaining walls and stabilizing slopes.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)

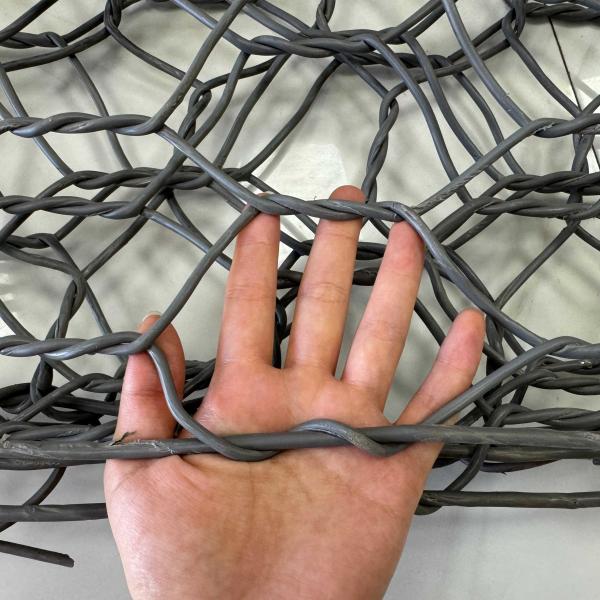

  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Product Advantages:

  1. Superior Strength - Heavy-duty double-twisted steel mesh withstands hydraulic pressure

  2. Excellent Flexibility - Adapts to ground settlement without structural damage

  3. High Permeability - 95% water flow reduces hydrostatic pressure

  4. Long Service Life - Corrosion-resistant coating ensures 30+ year durability

Applications

  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
