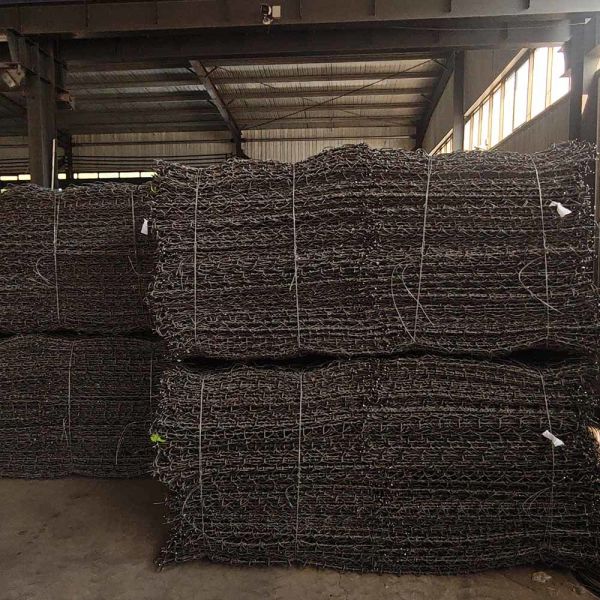

Retaining Wall Galvanized 2x1x1 Gabion Wire Mesh 80x100mm Hexagonal Gabion Box
Retaining Wall Galvanized 2x1x1 Gabion Wire Mesh 80x100mm Hexagonal Gabion Box
Retaining Wall Galvanized 2x1x1 Gabion Wire Mesh 80x100mm Hexagonal Gabion Box
Retaining Wall Galvanized 2x1x1 Gabion Wire Mesh 80x100mm Hexagonal Gabion Box
Specifications
Brand Name :
KN
Model Number :
KN-gabion box
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CN
MOQ :
100 pc
Price :
USD 35-45
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pc per day
Delivery Time :
15 work days
Packaging Details :
pallet
Product Name :
Retaining Wall Galvanized 2x1x1 Gabion Wire Mesh 80x100mm Hexagonal Gabion Box
Key Words :
Gabion Box
Surface Treatment :
Electro galvanized, Hot-dipped galvanized, PVC coated
Material :
Galvanized Steel Wire
Product Aperture :
50*50 mm, 50*100 mm, 75*75 mm, etc
Features :
Flexible, corrosion resistant, easy to install
Mesh Aperture :
70*90mm, 80*100mm,100*120mm, 110*130mm
Wire Dia :
2.7mm, 3.0mm
Quality :
High quality
Description

Retaining Wall Galvanized 2x1x1 Gabion Wire Mesh 80x100mm Hexagonal Gabion Box

Gabion Box, a core product in geotechnical protection, is a rectangular mesh structure fabricated from high-grade materials such as hot-dip galvanized steel wire, Galfan (zinc-aluminum alloy) wire, and PVC-coated steel wire. Filled with graded stones or gravel during application, it primarily serves to reinforce slopes, prevent soil erosion, and stabilize structures by confining soil particles. A key type is the modular Gabion Box, often called "Standard Gabion Units," which is widely utilized in infrastructure projects—especially suitable for large-area slope reinforcement and riverbank protection where structural stability and erosion resistance are critical requirements.
Adopting advanced hexagonal mesh weaving technology, Gabion Boxes possess the dual advantages of flexibility and high load-bearing capacity. They demonstrate excellent tensile strength, resistance to chemical corrosion, and durability against water scouring, enabling them to perform stably in harsh environments including saline-alkali regions, high-altitude cold areas, and coastal humid zones. Moreover, their modular design allows for quick on-site assembly without complex equipment, and they can be tailored in size to match specific project needs. With a service life of 15 to 30 years, Gabion Boxes ensure long-term operational safety for water conservancy, transportation, and municipal engineering projects.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

1.Economical. you just need to put stones in the mesh and then seal it.

2.Flexible. corrosion resistant and can stand up to extreme weather

3.Simple struction , requiring no special technique.

4.the silt between the wire mesh and stone contributes to plant grows. this makes thegabion mesh harmonious with the surrounding natural environment.
5.Good pemmeability of the mesh prevents damage caused by hydrostatic force, thushelping ensure the stability of hillside and beach.

6.the gabion mesh folding and can be assembled on side, which saves on transport costs.

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m

Retaining Wall Galvanized 2x1x1 Gabion Wire Mesh 80x100mm Hexagonal Gabion Box
