Specifications
Brand Name :
KN
Model Number :
KN-gabion box
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CN
MOQ :
100 pc
Price :
USD 35-45
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pc per day
Delivery Time :
15 work days
Packaging Details :
pallet
Product Name :
Hot-Dipped Galvanized Gabion Baskets Gabion Boxes For Highway Protection Retaining Wall
Key Words :
Gabion Box
Surface Treatment :
Electro galvanized, Hot-dipped galvanized, PVC coated
Material :
Galvanized steel wire
Product Aperture :
50*50 mm, 50*100 mm, 75*75 mm, etc
Features :
Flexible, corrosion resistant, easy to install
Structure :
hexagonal,Diamond etc
Mesh Aperture :
70*90mm, 80*100mm,100*120mm, 110*130mm
Technique :
Double twisting
Wire Dia :
2.7mm, 3.0mm
Description

Hot-Dipped Galvanized Gabion Baskets Gabion Boxes For Highway Protection Retaining Wall

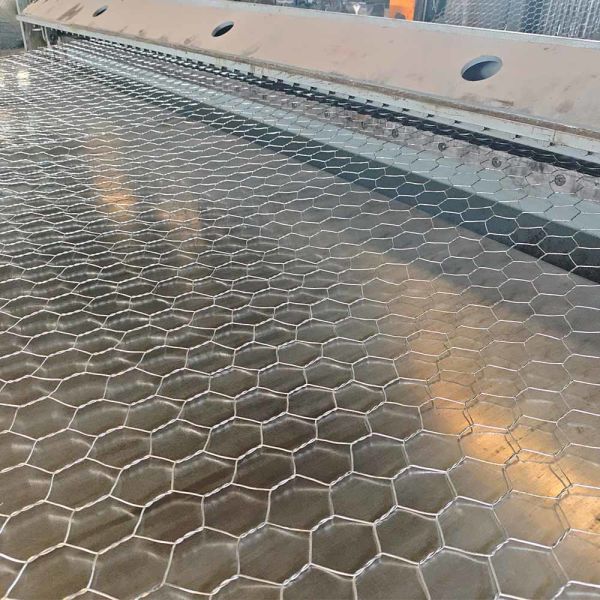

Crafted with precision-woven hexagonal mesh, the Gabion Box also accepts customized wire diameters and mesh sizes to fit diverse project requirements. Its galvanized or PVC-coated surface provides enhanced resistance to chemical corrosion and UV damage, making it ideal for coastal, industrial or high-altitude areas. Unlike rigid structures, its flexible design can adapt to slight ground settlements without cracking, ensuring long-term structural integrity even in geologically active zones. Filled with local stones, it not only reduces transportation costs but also blends harmoniously with the natural landscape, making it a sustainable choice for ecological restoration projects alongside traditional infrastructure uses.
Gabion Box is an essential geotechnical protection solution made from durable woven steel wire—available in hot-dip galvanized, Galfan-coated or PVC-clad variants. Its hexagonal mesh structure delivers exceptional load-bearing capacity while maintaining flexibility, enabling it to withstand strong water currents, soil pressure and even minor seismic activity. Designed for easy on-site assembly, it can be quickly filled with local rock or gravel, significantly cutting construction time and material transportation costs, which is crucial for remote infrastructure projects.
Widely utilized in riverbank stabilization, slope reinforcement, flood defense systems and highway/railway embankment protection, it excels in harsh climates—from arid Central Asian steppes to humid Southeast Asian deltas. Beyond structural reliability, its permeable design promotes natural water circulation and vegetation growth, aligning with global ecological construction trends. A long service life of 15-30 years further enhances its cost-effectiveness, making it a top choice for Belt and Road infrastructure projects across Africa, Asia and beyond.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

1.Economical. you just need to put stones in the mesh and then seal it.

2.Flexible. corrosion resistant and can stand up to extreme weather

3.Simple struction , requiring no special technique.

4.the silt between the wire mesh and stone contributes to plant grows. this makes thegabion mesh harmonious with the surrounding natural environment.
5.Good pemmeability of the mesh prevents damage caused by hydrostatic force, thushelping ensure the stability of hillside and beach.

6.the gabion mesh folding and can be assembled on side, which saves on transport costs.

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
