2.7mm Wire Hexagonal Wire Mesh Gabion Cages Corrosion Resistant Gabion Box for Retaining Walls
2.7mm Wire Hexagonal Wire Mesh Gabion Cages Corrosion Resistant Gabion Box for Retaining Walls
2.7mm Wire Hexagonal Wire Mesh Gabion Cages Corrosion Resistant Gabion Box for Retaining Walls
2.7mm Wire Hexagonal Wire Mesh Gabion Cages Corrosion Resistant Gabion Box for Retaining Walls
Specifications
Brand Name :
KN
Model Number :
KN-gabion cages
Certification :
ISO,ISO9001,CE
Place of Origin :
CN
MOQ :
1000 pc
Price :
USD 35-49
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500 pc per day
Delivery Time :
15 work days
Packaging Details :
pallet
Product Name :
2.7mm Gabion Walls 2x1x1m Gabion Box Gabion Cages Retaining Walls For Stone For Sale
Key Words :
Stone Gabion Cages
Type :
weave
Application :
Retaining walls, erosion control, river bank protection
Wire Type :
Hexagonal wire mesh
Sample :
available
Tensible Strength :
350-550N/mm
Features :
Flexible, easy to install, corrosion resistant
Tie Wire :
2.70mm
Mesh Size :
60x80mm, 80x100mm, 100x120mm
Usage :
Protection,Flood Control Retaining Wall,River Banks,fence; railway etc,Control and lead river
Description
2.7mm Gabion Walls 2x1x1m Gabion Box Gabion Cages Retaining Walls For Stone For Sale
Product Description

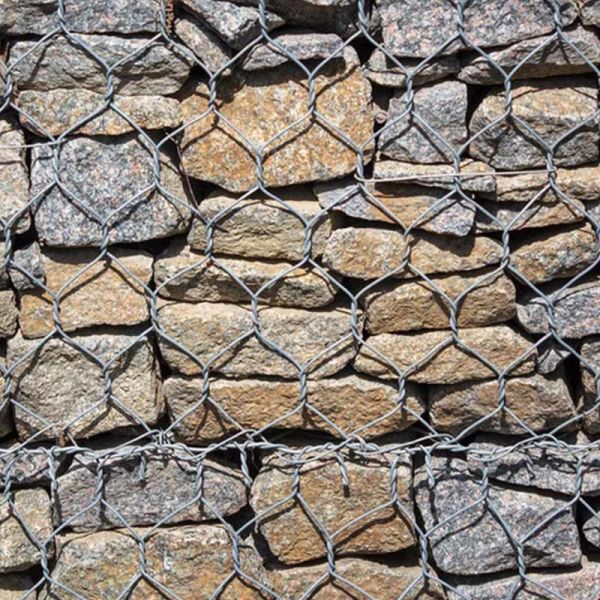

Galvanized steel gabion cages, with 2.7mm thick wires for superior strength, are modular wire mesh boxes (standard size 2x1x1m) used to construct retaining walls and erosion control structures. These durable containers are filled with stone on-site, creating permeable, flexible, and exceptionally robust gravity walls. Ideal for stabilizing slopes, managing water flow, and landscaping, they offer a cost-effective, eco-friendly, and aesthetically pleasing engineering solution. Their design allows for natural drainage and vegetation growth, ensuring long-term stability with minimal maintenance.

Key Features
  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Product Advantages

  • Superior Strength - Heavy-duty double-twisted steel mesh withstands hydraulic pressure
  • Excellent Flexibility - Adapts to ground settlement without structural damage
  • High Permeability - 95% water flow reduces hydrostatic pressure
  • Long Service Life - Corrosion-resistant coating ensures 30+ year durability
Applications
  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention
Customization Services
  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
Technical Specifications
Gabion Specifications Mesh Hole Model
8x10cm 6x8cm
Length (m) Width (m) Height (m) Galvanized or PVC coated Galvanized or PVC coated
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter 3.4mm >265g/m² Side wire diameter 2.7mm >245g/m²
4 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
6 1 1 Custom specifications available
