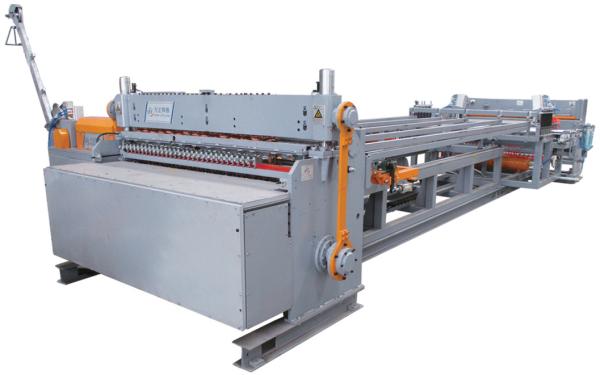

Pet Cage Welded Wire Mesh Machine
Pet Cage Welded Wire Mesh Machine
Specifications
Brand Name :
FZ
Model Number :
DNW-20J
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
40 days
Packaging Details :
Plastic films or can be customized.
Name :
pet cage making machine
Mesh width :
500-2000mm
Mesh hole size :
20*20mm
Welding speed :
60-80times/min
Machinery Test Report :
Provided
Key Selling Points :
Full automatic
Color :
Grey& yellow
Usage :
Construction mesh
Warranty :
1 Year
Control system :
PLC
Description

Multi-Function Pet Cage Welded Wire Mesh Machine

1) Mesh traction adopts brand CNC servo system control.
2) Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
3) Using the gear and the rack drive, the transmission efficiency is perfect.
4) Traction device can work in way of back and forth, return rapid and stable.
5) Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
6) The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.


The parameters of the servo net drawing system can be set and stored in PLC without losing when power is off.

Item Product type Parameter Remark
1 Max. welding capacity ¢ 4+4mm
2 Long wire diameter ¢1.3-4mm
3 Cross wire diameter ¢1.3-4mm
4 Long wire feeding method coil in
5 Cross wire feeding method coin in
6 Long wire spacing ≥20mm Mechanically adjustments
7 Cross wire spacing ≥20mm Programming adjustments
8 Length range of wire mesh 500-250000mm Adjustable
9 Width range of wire mesh ≤2000mm Adjustable
10 Number of welding spot 46PCS
11 Working speed max. 60-80times/min

Pet Cage Welded Wire Mesh Machine
