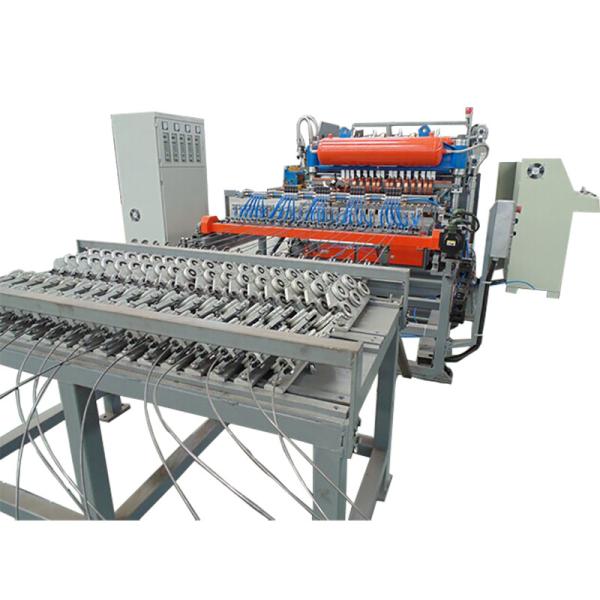

high speed PLC Control Wire Mesh Welding Machine For Chicken Cage
high speed PLC Control Wire Mesh Welding Machine For Chicken Cage
Specifications
Brand Name :
FZ
Model Number :
DNW-20J
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,T/T, Western Union
Delivery Time :
60days
Supply Ability :
10 sets/month
Packaging Details :
Plastic films or can be customized.
Wire diameter: :
2-4mm
Max width: :
2000mm
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service
Wire diameter :
1.5-4mm
Weight :
7t
Warranty :
1 Year
Color :
gray and yellow
Control system: :
PLC
Rated voltage: :
415V/380V,50Hz/60Hz
Type :
Fully Automatic
long wire space :
Min.20mm
Description

Hot Sale Pet And Chicken Cage Wire Mesh Welding Machine

The whole equipment adopts PLC programming control, user-friendly operation interface, easy to operate and master, mesh size adjustment can be edited through LCD touch screen, all production data setting is convenient and fast. Operating system, CNC servo system, stable performance, meet the needs of high-speed welding mesh.
The operation platform has two selection modes: manual and automatic.
The parameters of the servo net drawing system can be set and stored in PLC without losing when power is off.

Automatic cross wire feeding mechanism (mechanical shearing)
Under the program control, the servo motor drives the wire feeding wheel to feed the wire rod into the straightening drum, The steel wire is straightened and cut automatically by the rapid rotation of the straightening roller. The steel wire is sent between the electrodes through the spring wire device, and the main beam is welded. After the welding of a row of horizontal wires is completed, the vertical wires step into a grid, and at the same time, a horizontal wire is dropped for welding, which is repeated several times in turn, and a finished mesh is completed;
The feeding of steel wire is smooth, fast and accurate.

Product type

DNW-20Q

Working speed max.

60-90Times/Min.

Width range of wire mesh

≤ 2000mm

Longitudinal wire spacing

≧20mm variable from mm it can be adjusted

Welding wire material

Unalloyed steel wire

Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture

Control method

PLC programming control, servo stepper system

Welding cylinders number

51pcs
