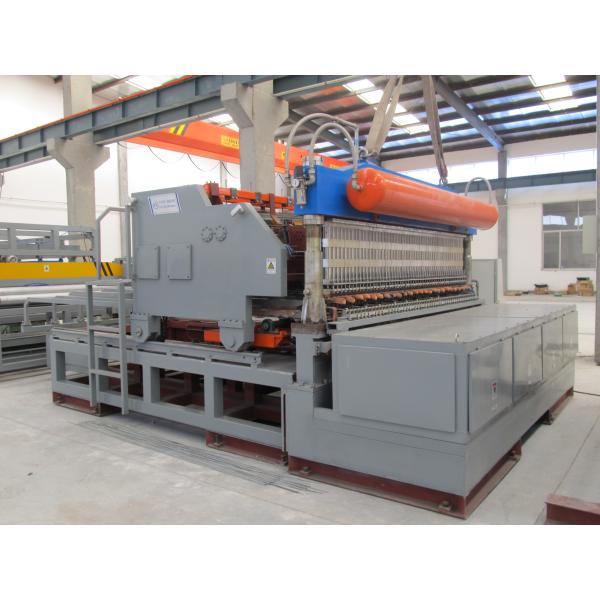

Construction Panel 300mm Welded Wire Mesh Machine Automatic
Construction Panel 300mm Welded Wire Mesh Machine Automatic
Specifications
Brand Name :
FZ
Model Number :
DNW-33Q
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
Plastic films or can be customized.
Name :
Steel Concrete Reinforcement Welded Wire Mesh Machine
Mesh hight :
500-3300mm
Mesh hole size :
100*100mm
Welding speed :
40-60 times/min
Voltage :
220V/380V/415V/440V
Key Selling Points :
Full-automatic
Color :
Grey& yellow
Usage :
Construction mesh
Lead time :
40 days
Mesh length :
≤12000mm
Description

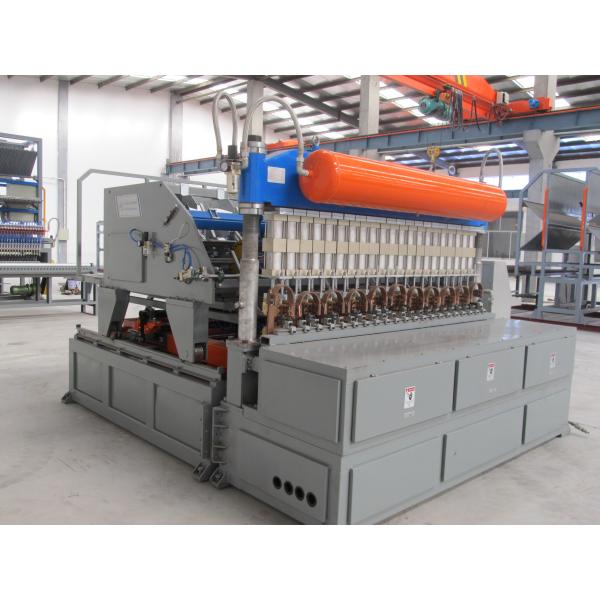

Construction Mesh Panel Welded Wire Mesh Machine

According to the length of the product, the number of knots per product can be set on the control panel according to the need, and the number of knots can only be set in integer times of pitch. The upper chord solder joint can be aligned with the button next to the scissors part. The the motor drive, the steel bar is sent to the rear for welding, and the steel bar is sent to the rear for welding.

Item Product type Parameter Remark
1 Max. welding capacity ¢12+12mm
2 Long wire diameter ¢5-12mm
3 Cross wire diameter ¢5-12mm
4 Long wire feeding method In coil
5 Cross wire feeding method In pre-cut
6 Long wire spacing ≥100mm Mechanically adjustments
7 Cross wire spacing ≥100mm Programming adjustments
8 Length range of wire mesh ≤120000mm Adjustable
9 Width range of wire mesh ≤3300mm Adjustable
10 Number of welding spot 32PCS
11 Working speed max. 40-60times/min

working progress

1 The wires from coils are firstly straightened through this device of Steel Concrete Reinforcement Welded Wire Mesh Machine in order to ensure that welding mesh will be more even. It is essential to the whole line.

2 There are 33 PCS longitudinal wire straightening unit on Steel Concrete Reinforcement Welded Wire Mesh Machine, each unit has 5pcs wheels, it fits for straitening wire diameter 3-6 mm for Steel Concrete Reinforcement Welded Wire Mesh Machine.

3 Each straightening on Steel Concrete Reinforcement Welded Wire Mesh Machine unit adopts tungsten steel as the material; the overall is with high wear resistance.

Construction Panel 300mm Welded Wire Mesh Machine Automatic
