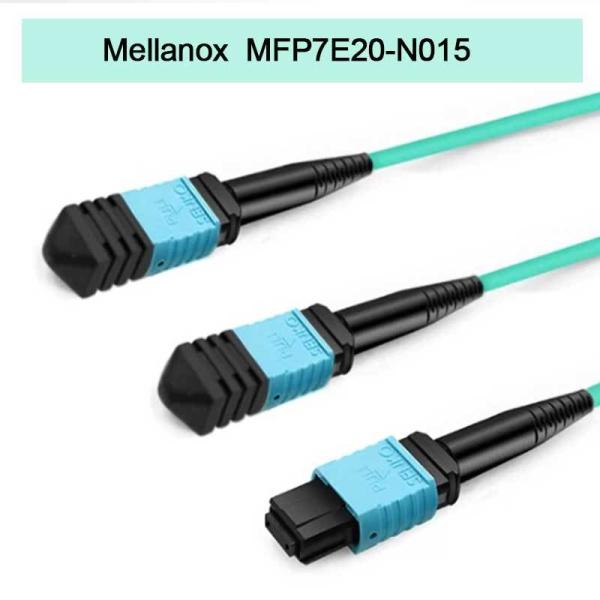

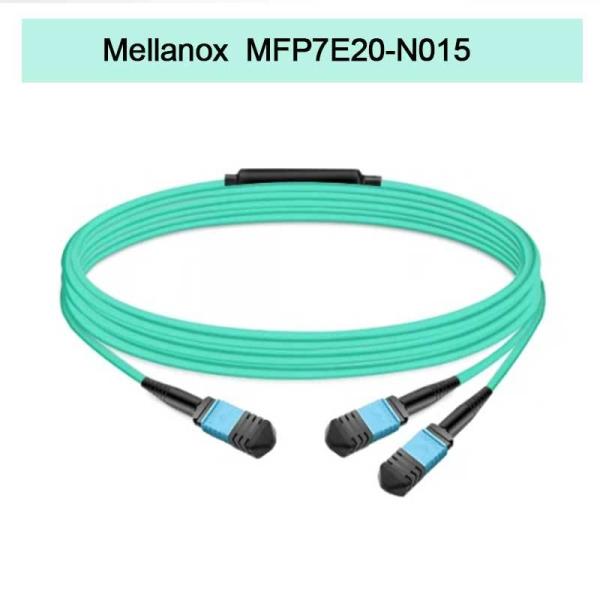

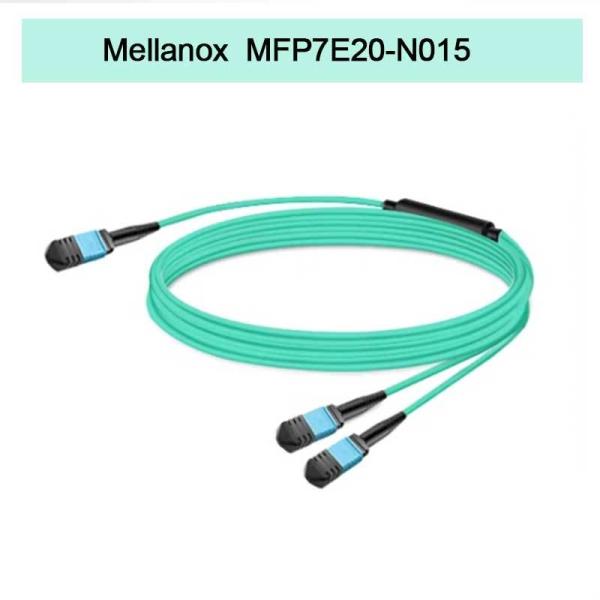

NVIDIA MFP7E20-N015 Optical Fiber Splitter Cable

The NVIDIA MFP7E20-N015 is a high-performance, multimode, 4-channel to two 2-channel passive fiber cable designed for next-generation data centers. It enables flexible and cost-effective connectivity between 800G/400G switches and 200G adapters or DPUs, delivering reliable signal integrity and easy installation.

MFP7E20-N015 Key Features

• Flexible round LSZH jacket for easy routing and fire safety
• Female-to-female MPO-12/APC connectors with push-pull latching
• Type-B crossover topology for direct transceiver interconnection
• Supports InfiniBand, Ethernet, and NVLink protocols
• Low insertion loss and high return loss performance

Technology & Standards

This Optical Fiber Cable complies with industry standards including IEC 61754-7, ANSI/TIA/EIA 604-5, and Telcordia GR-1435. It uses angled physical contact (APC) polishing to minimize back reflection and ensure optimal signal quality in high-speed environments.

How It Works

The cable splits one 4-channel MPO connector into two 2-channel MPO connectors. It uses 8 active fibers in a crossover (Type-B) configuration, ensuring transmit and receive channels are properly aligned between transceivers. The 8° APC polish reduces optical reflection, protecting signal integrity.

Applications

• Data center spine-leaf architectures
• High-performance computing (HPC) clusters
• Cloud infrastructure and storage networks
• AI and machine learning training networks
• ConnectX-7 adapters and BlueField-3 DPUs

MFP7E20-N015 Specifications

Ordering Info

Why Choose NVIDIA MFP7E20?

• Superior optical performance with low loss and high reliability
• Rigorous testing ensures out-of-the-box readiness
• Designed for compatibility with NVIDIA transceivers and systems
• LSZH jacket enhances safety in case of fire

Service & Support

We offer 24/7 technical consultation, global shipping, and professional integration support. All products come with a standard warranty and are tested before shipment.

FAQ

Q: What is the maximum reach of this cable?
A: Up to 50 meters with two patch panels.

Q: Can I use this with QSFP112 transceivers?
A: Yes, it supports both OSFP and QSFP112.

Q: Is this a crossover or straight cable?
A: It is a Type-B crossover cable.

Precautions

• Do not mix MPO-12/APC with MPO-12/UPC connectors
• Always clean connectors before installation
• Avoid bending below 30 mm radius
• Store and operate within specified temperature and humidity ranges
