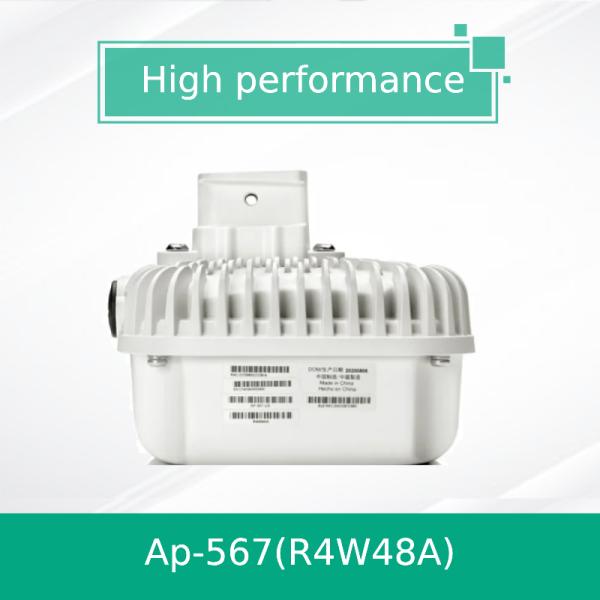

The Aruba AP-567 (R4W48A) is a ruggedized outdoor Wi-Fi 6 (802.11ax) access point engineered for extreme environmental conditions. This high-performance AP delivers reliable wireless connectivity in challenging outdoor settings with its IP66/67 rating, extended temperature tolerance, and built-in directional antennas. It supports dual-band 2x2 MIMO operation, integrated Bluetooth 5, and Zigbee for IoT applications, making it an ideal solution for outdoor deployments requiring robust and continuous connectivity.

• Wi-Fi 6 (802.11ax) dual radio with 2x2 MIMO in both 2.4 GHz and 5 GHz bands
• Ruggedized outdoor design with IP66/67 dust and water resistance
• Built-in 90°H x 90°V directional antennas
• Integrated Bluetooth 5 and Zigbee for IoT connectivity and location services
• Operates in temperatures from -40°C to +55°C
• Supports up to 256 clients per radio
• Flexible deployment with controller-based or Instant mode operation

The AP-567 utilizes Wi-Fi 6 technologies including OFDMA, MU-MIMO, and Target Wake Time (TWT) for efficient multi-user communication and IoT support. It features Aruba's ClientMatch technology for optimized client steering and Dynamic Segmentation for enhanced security. The integrated Bluetooth 5 and Zigbee radios enable location services and IoT connectivity without additional hardware.

This outdoor access point operates by simultaneously broadcasting two independent radio bands. It uses OFDMA to divide channels into resource units (RUs) for efficient multi-user communication. ClientMatch technology ensures clients connect to the best available AP based on real-time network conditions, while the integrated IoT radios provide additional connectivity options for location services and sensor networks.

• Outdoor campus and courtyard coverage
• Industrial and manufacturing facilities
• Parking lots and transportation hubs
• Stadiums and outdoor venues
• Smart city and municipal deployments
• IoT-enabled outdoor monitoring systems

• Designed for extreme outdoor conditions with IP66/67 rating
• Wi-Fi 6 efficiency with OFDMA and MU-MIMO for high-density environments
• Integrated IoT radios eliminate need for additional hardware
• Advanced security with WPA3 and Dynamic Segmentation
• Flexible deployment options with controller or Instant mode
• Built-in directional antennas for optimized coverage

We offer comprehensive support including lifetime warranty, zero-touch provisioning, 24/7 technical consultation, and global shipping. Our professional services include network design, deployment, and optimization for outdoor environments.

Q: What makes this AP suitable for outdoor use?
A: The AP-567 features IP66/67 rating for water and dust resistance, operates in extreme temperatures (-40°C to +55°C), and includes built-in surge protection for all electrical interfaces.

Q: Can this AP support mesh networking?
A: Yes, when operating in Aruba Instant mode, it supports wireless mesh capabilities for flexible outdoor deployments.

Q: What power source is required?
A: It supports 802.3at PoE+ (Power over Ethernet Plus) for both power and data connectivity.

• Ensure proper grounding and lightning protection for outdoor installations
• Verify local regulatory requirements for radio frequency usage
• Use only approved mounting hardware for secure installation
• Maintain adequate clearance around the AP for proper ventilation
• Follow all local safety regulations for outdoor electrical installations
